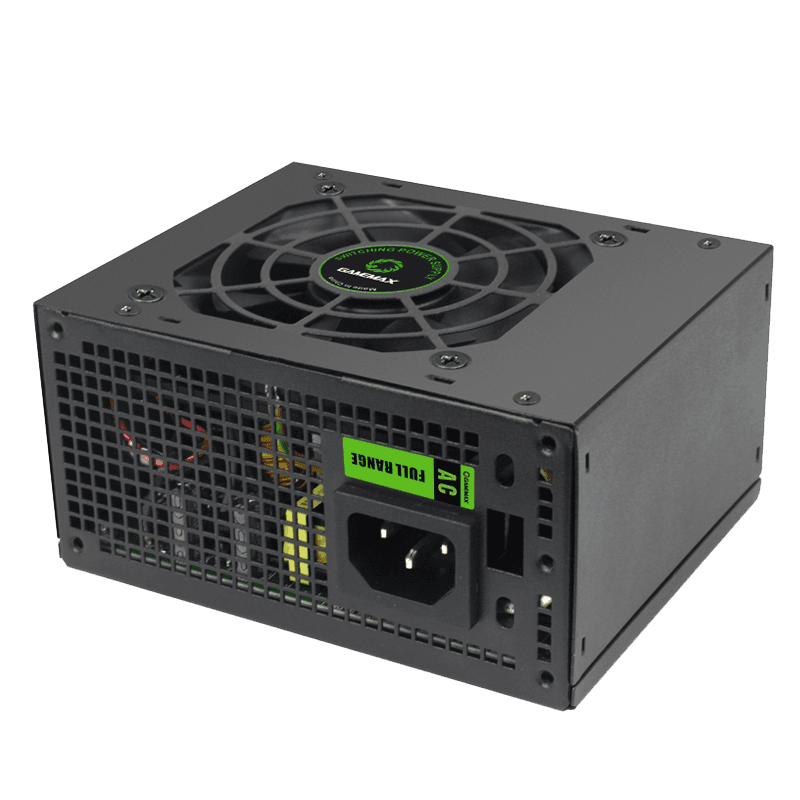

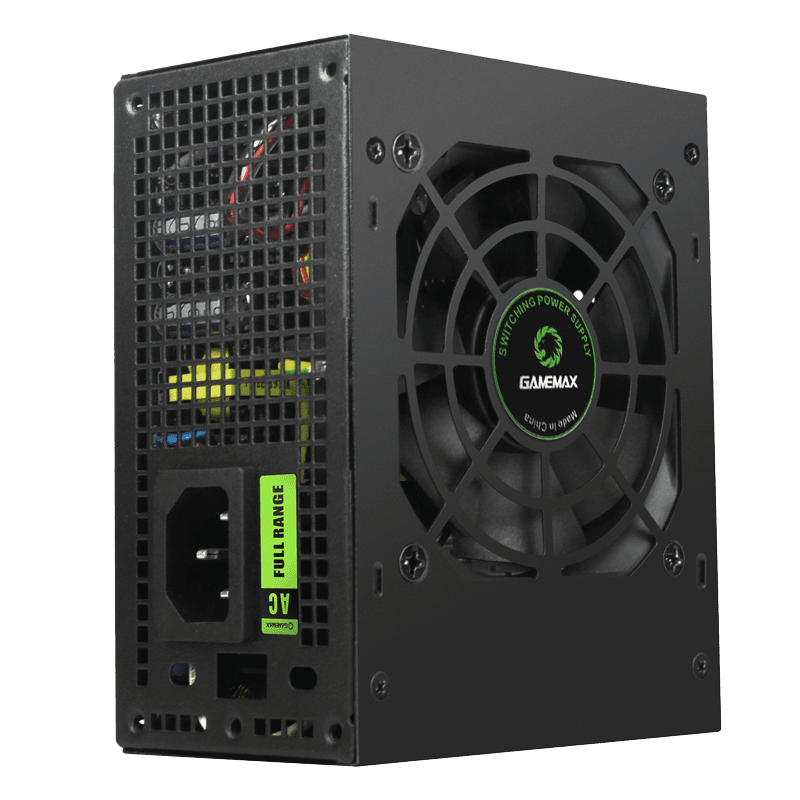

The small form factor power supply for your big ideas.
GameMax SFX Series power supplies bring legendary performance and
reliability to the SFX small form factor standard. They have the
features found in full-size high performance power supplies, with compliant with 80 PLUS efficiency, superior voltage regulation, along with smart fan controller for better reliability.
Key Features
Active PFC and Full Range AC Input (100-240V)
Designed for custom built PCs, mini-servers and HTPCs
Smart auto fan speed controller
The micro SFX design
Safety and EMC certified by CE
High Efficiency up to 85%
Fully protection functions with OVP / UVP / OPP / SCP / SIP
PSU Specifications

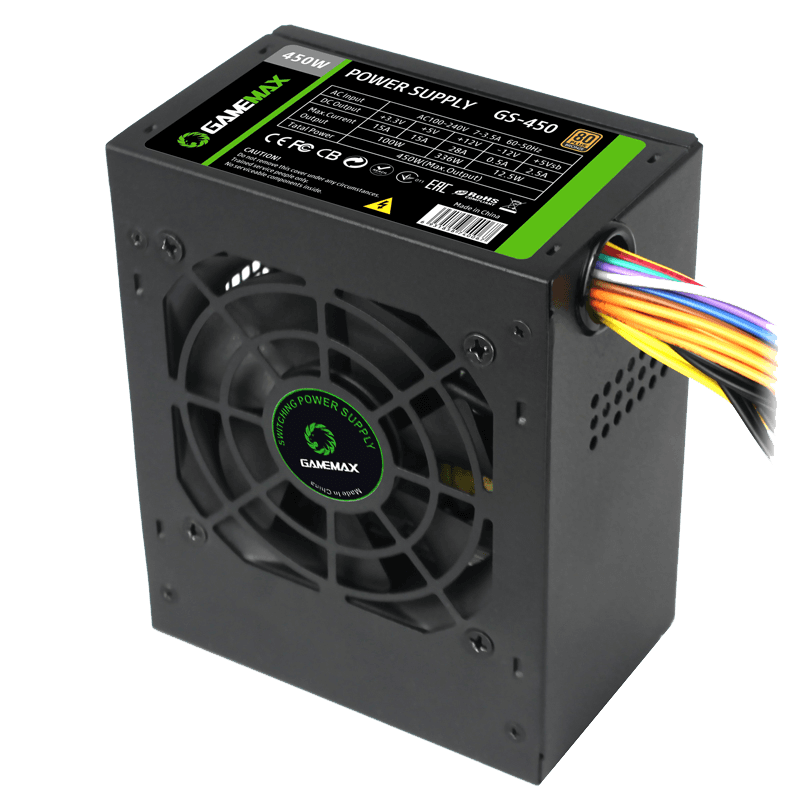

AC INPUT: 100-240 VAC 3-6A 50-60Hz | |||||

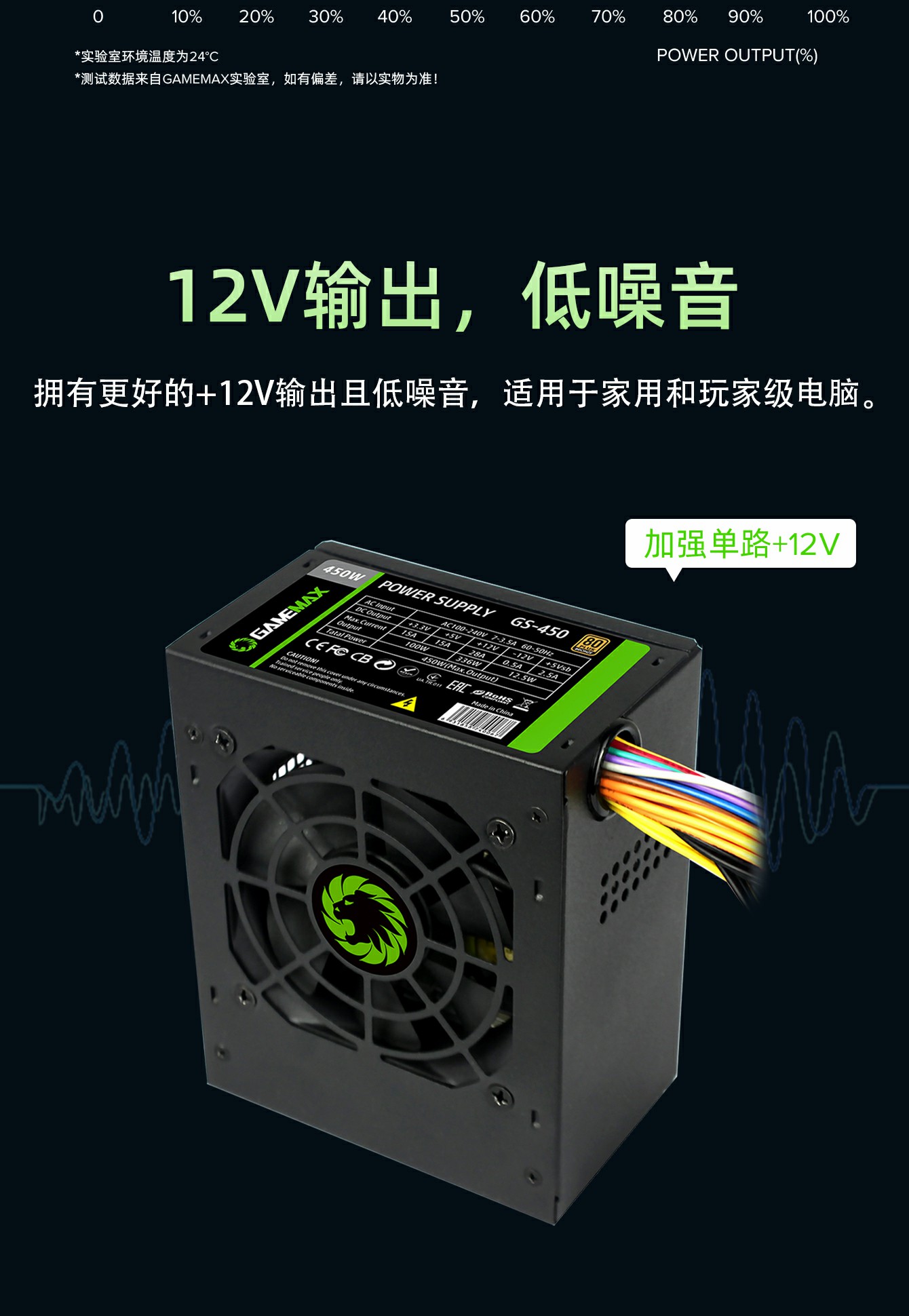

DC | +3.3V | +5V | +12V1 | -12V | +5VSB |
Output | 15A | 15A | 28A | 0.5A | 2.5A |
Max | 450W |
Detailed Specifications

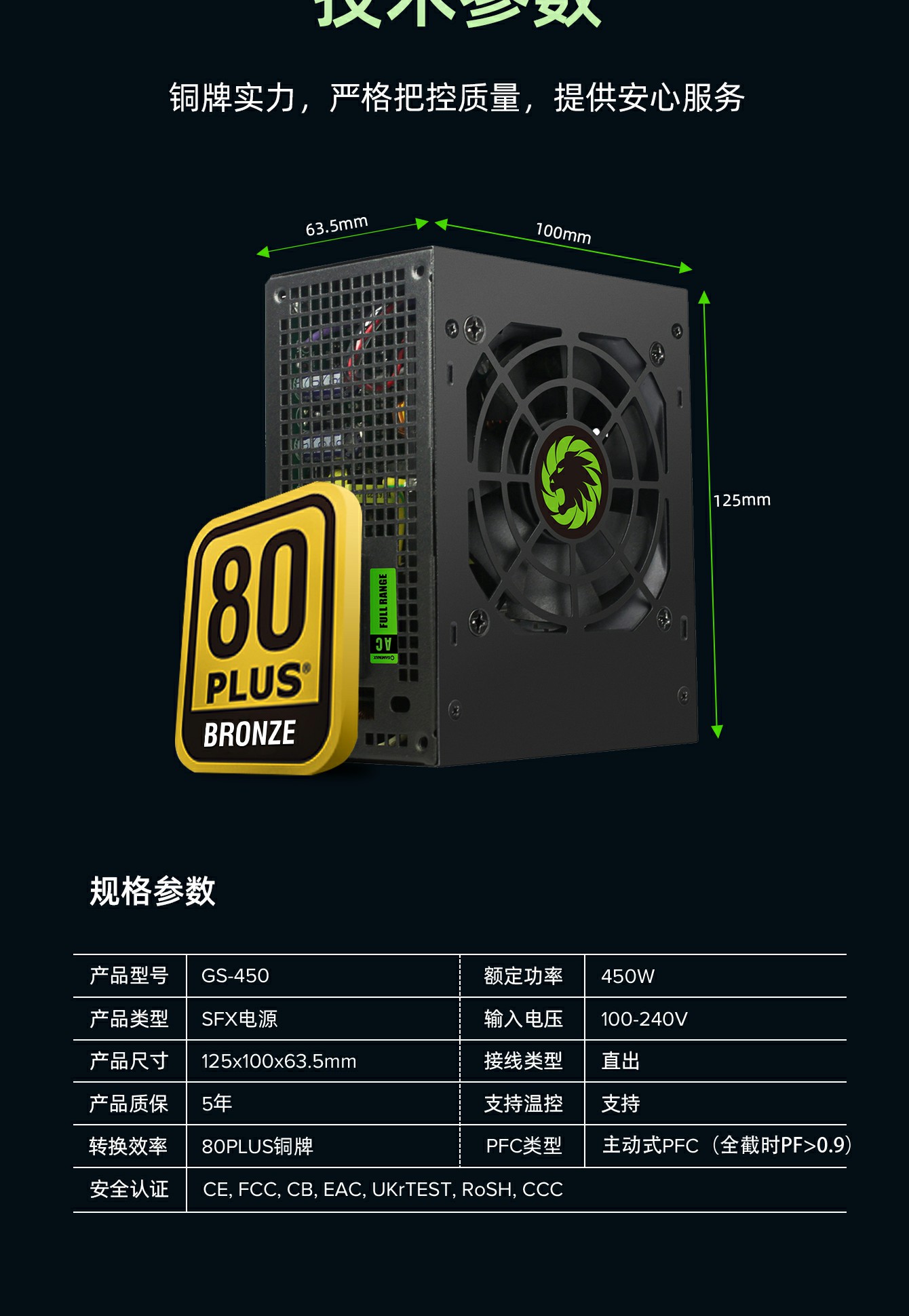

Dimensions: | 100mm x 63mm x 125mm (W x H x D) |
Input Voltage: | 100-240 VAC |
Input Current: | 3-6A |
Input Frequency Range: | 50-60Hz |
PFC: | Active PFC (>.99) |
Power Good Signal: | 100-500 ms |
Hold Up Time: | >17ms |

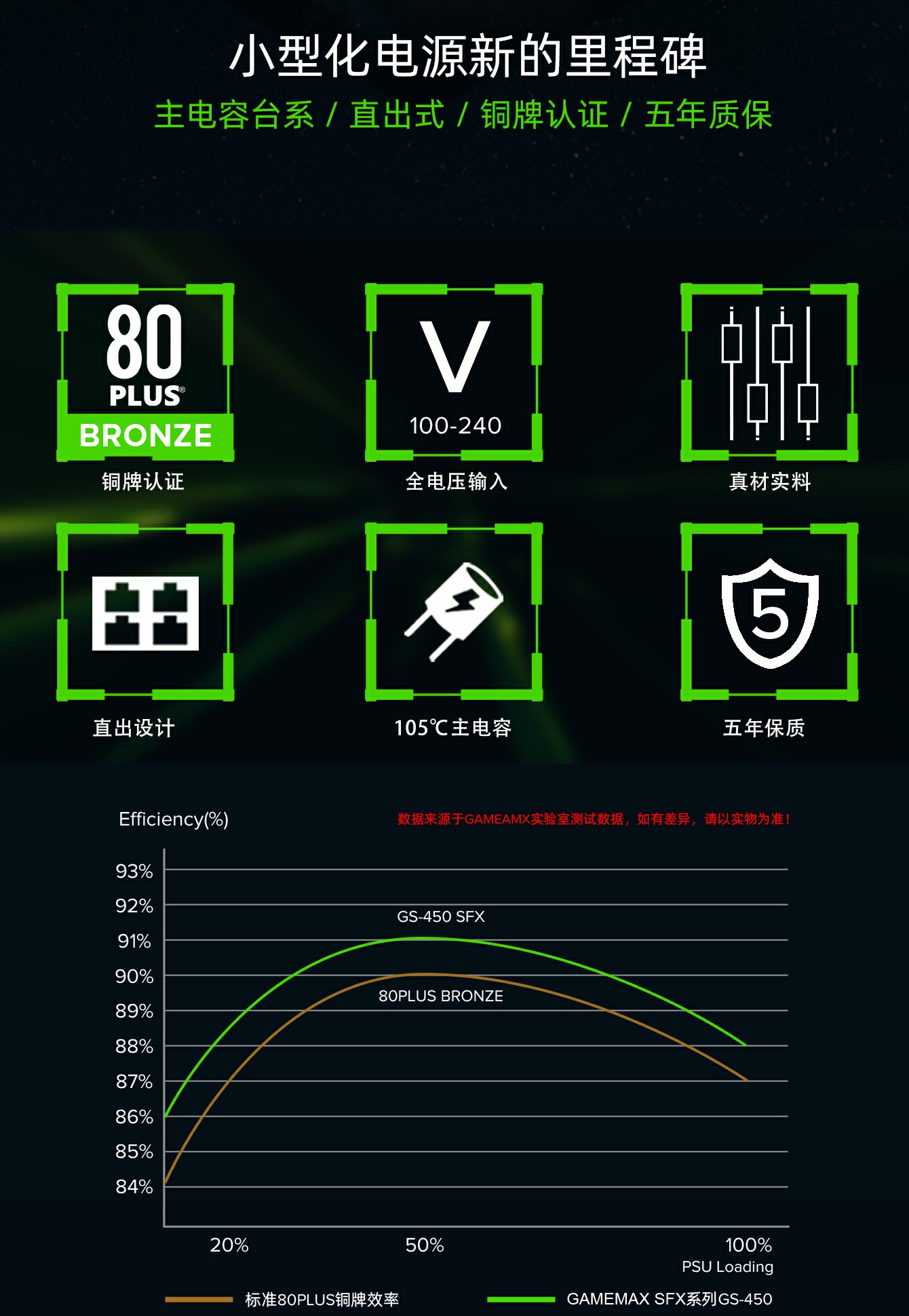

Efficiency: | > 81% (85% max) |
MTBF: | > 100,000 Hours |
Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
Power: | 300W |
Operation Temperature: | 0-40 |
Safety: | CE / FCC / CB |

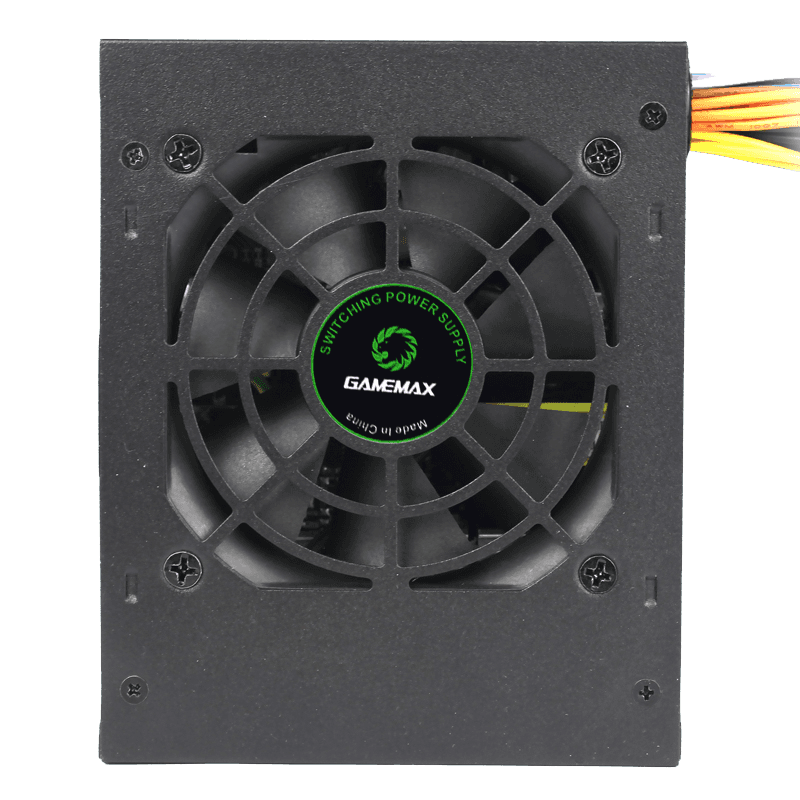

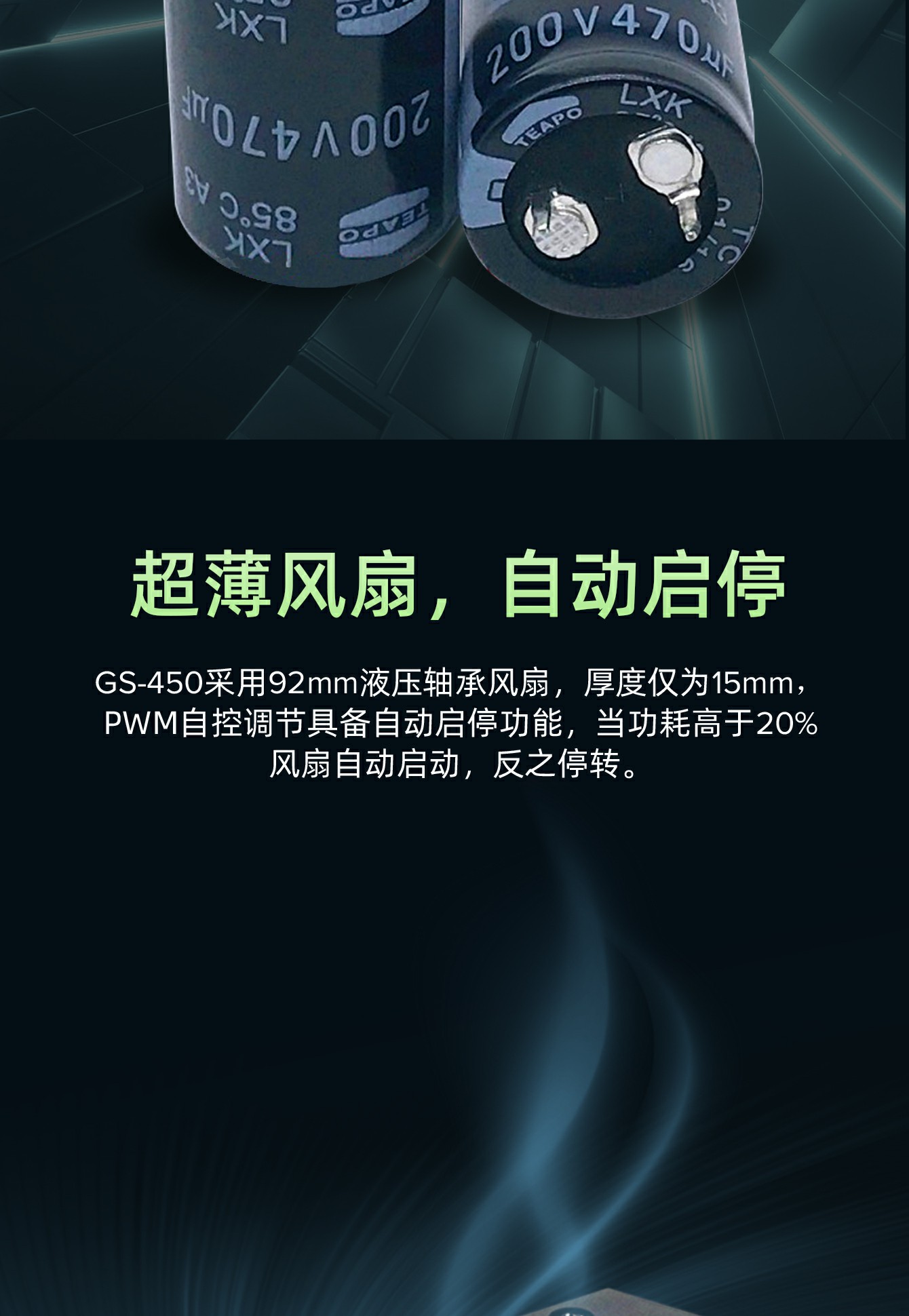

Cooling: | 80mm Ultra Silent Fan |

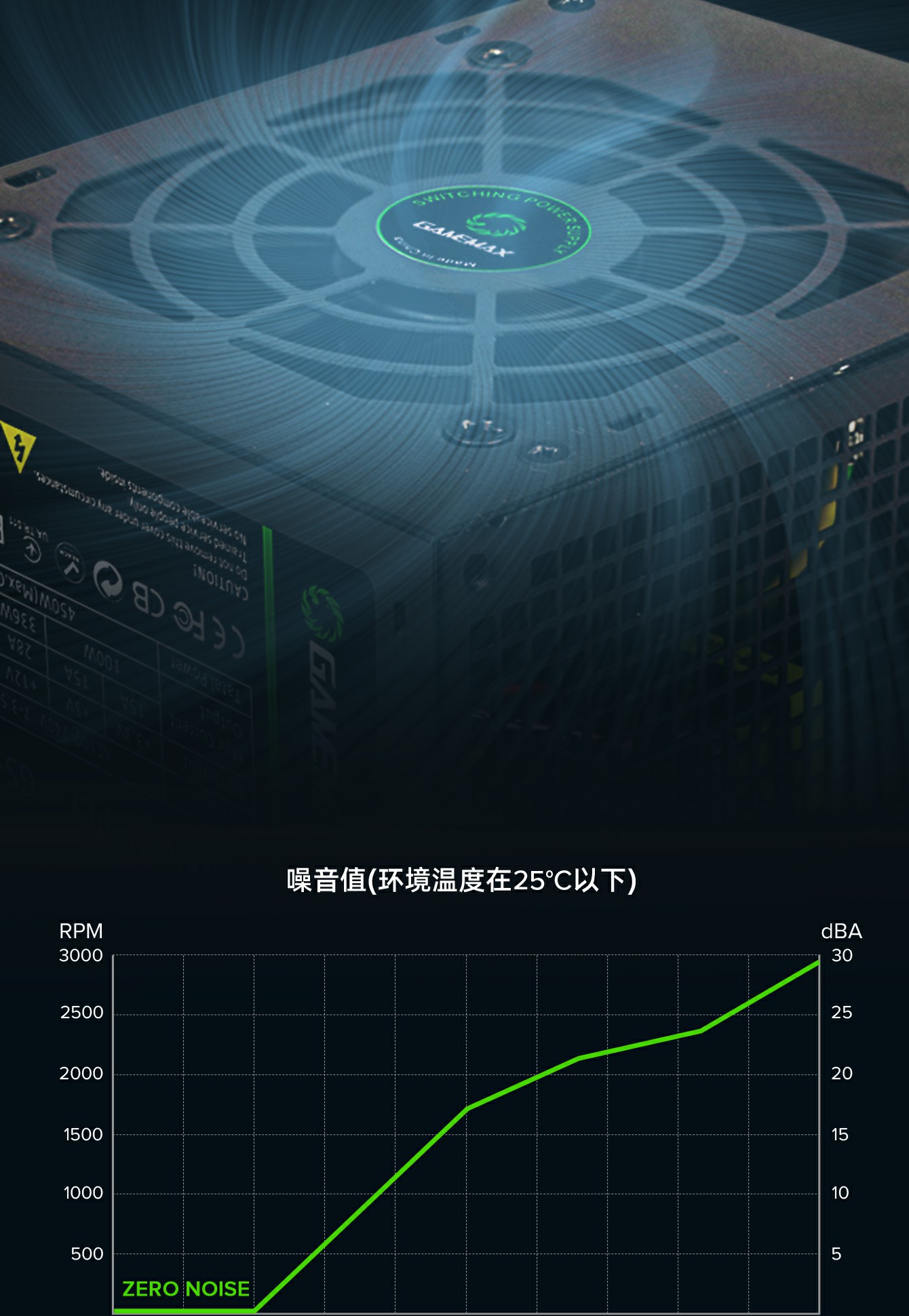

Noise: | <25dBa |
80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
Manufacturer Part Number: | GS-450 |
EAN Number: | 6931858740036 |
Has Mains Plug: | No |
Colour: | Silver |
What's In The Box: | Power Supply |
Unit (Product) Dimensions (mm): | 125mm x 62mm x 100mm (W x H x D) |
Packaging Dimensions (mm): | 179mm x 162mm x 74mm (W x H x D) |
Net Weight (KGs): | 0.8 KGs |
Gross Weight (KGs): | 0.9 KGs |
