GT-400G Gold
TFX,power,supply,450W,80+,Gold
TFX PSU 400W continuous power output, Active PFC 80Plus Gold, at 40℃ rated operating temperature for 24/7 operation ensures unwavering power and reliability
AC Input Voltage from 110-240v. TFX power supply is the most common in brand PC machines
Size: 150*85*65mm, smaller than ATX power supplies. Strictly according to standard TFX form factor. High efficiency, small volume
?Low-noise fan 80mm. High efficiency with 90%
Multiple protection including OVP, UVP, OCP, OPP, and SCP
Safety / EMI Approvals: CE, FCC, CB, UL,CCC
Scope of application: TFX power supply is widely used in MINI-ITX computer ITX case, PO, IPC, server, workstation, industrial computers, all-in-one computers, etc. TFX power supply is mainly used in small equipment, TFX cases, and some HTPC cases

TFX 400 Gold, is certified for 80 PLUS Gold, this active PFC unit runs at a max of 90% efficiency,
Silent running 80mm fan with 18 dBA minimum,

Single PCI-E 6+2pin connectors support,
Finally, there is full electrical protection and official safety is promised

PSU Specifications

AC INPUT: 100-240 VAC 8~4A 50-60Hz
DC+3.3V+5V+12V-12V+5VSB
Output12A12A33A0.3A2.5A
Max400W

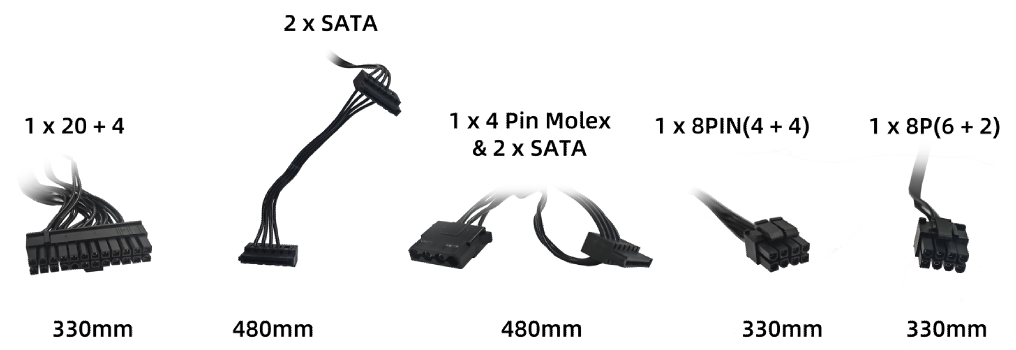

Connectors Specifications
