RM1 (Intel standard) CPU Air Cooler for Desktop:
Intel? Core 13th Gen Desktop Boxed Processors
i7-13700, i7-13700F, i5-13500, i5-13400, i5-13400F, i3-13100, and i3-13100F.
Intel? Core 12th Gen Desktop Boxed Processors
i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, and i3-12100F.
| Overall Dimension | 98(L)X98(W)X58(H)mm |
| Weight | 340g |
| TDP | 100W(Gen12/13 65W Intel? Core? Desktop Processors) |
| CPU Compatibility | LGA 1700 |

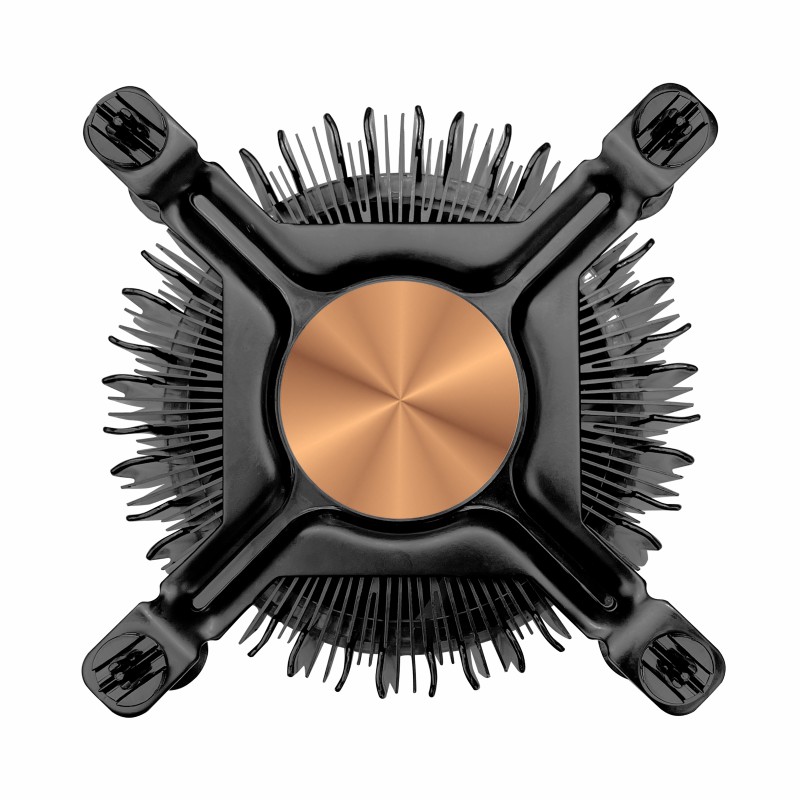

| Heat Base Material | Copper bottom φ35mm |
| Fins | Aluminum Fins |
| Surface Treatment | Black Electrophoresis Surface process |
| Fan Dimension | 80×80×25mm |
| Rated Voltage | 12V |
| Power | 2W(Max) |
| Fan Speed | 1000~3000RPM (PWM)±10% |
| Bearing Type | Hydraulic Bearing |

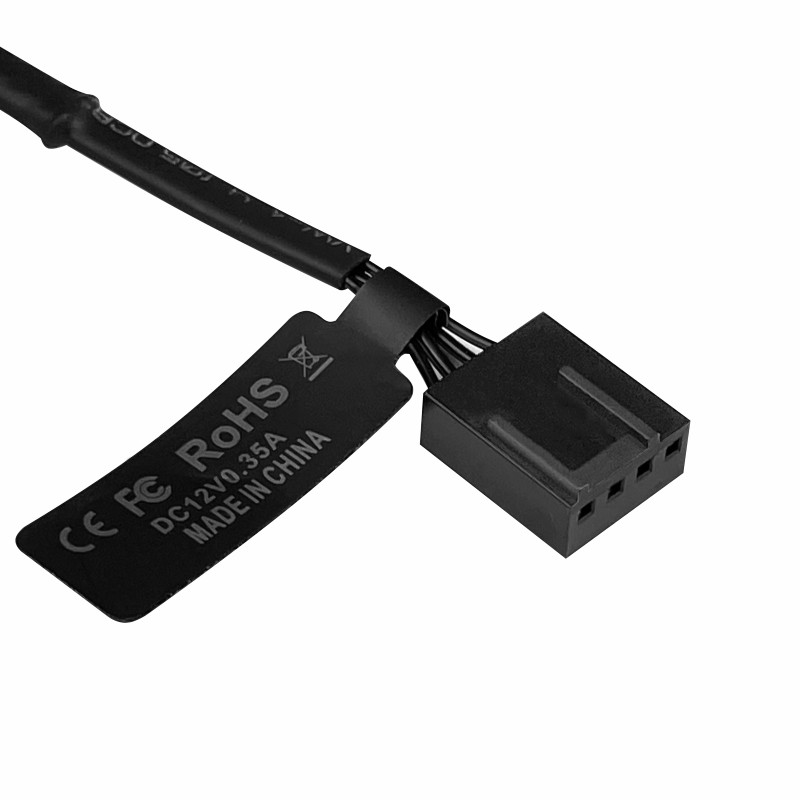

| Connector | 4-Pin PWM (thermocomtrol) |
| Air Pressure | 12-30.5dBA |

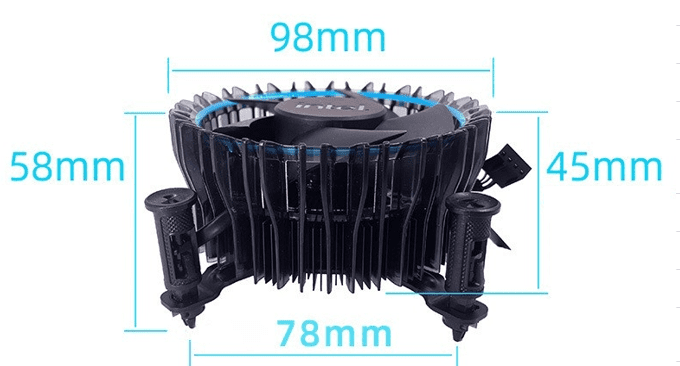

The Size info
