| Model No.: | S706 (CE/EMI Approved) |
| Chassis: | 0.8mm, SGCC, Structure: (Half Paint Match CE/EMI standard) |
| Type: | Micro-ATX 、Mini-ITX |
| Front Panel: | ABS material (wireless design) |
| Side Panel: | U type, with cooling air flow channel |
| Front USB Ports: | 2x USB2.0 flat cable (included) |
| 2x USB3.0 (Optional) | |
| HD_AUDIO connector (Inlcuded) | |
| Type C (USB2.0) (Optional) | |
| PSU Type : | TFX PSU type |
| Motherboard Type : | MATX M/B (Max 244*244mm)/Mini ITX M/B |
| Security/COM port(RS232/LPT) | Padlock Loop / Kensington Slot/DB9/DB25 |
| Reserved Fan Ports: | Rear: 1x80mm black 3pin fan 8025 (+$0.4) |
| Rear: 1x80mm (8025) PWM fan (+$1.25) | |

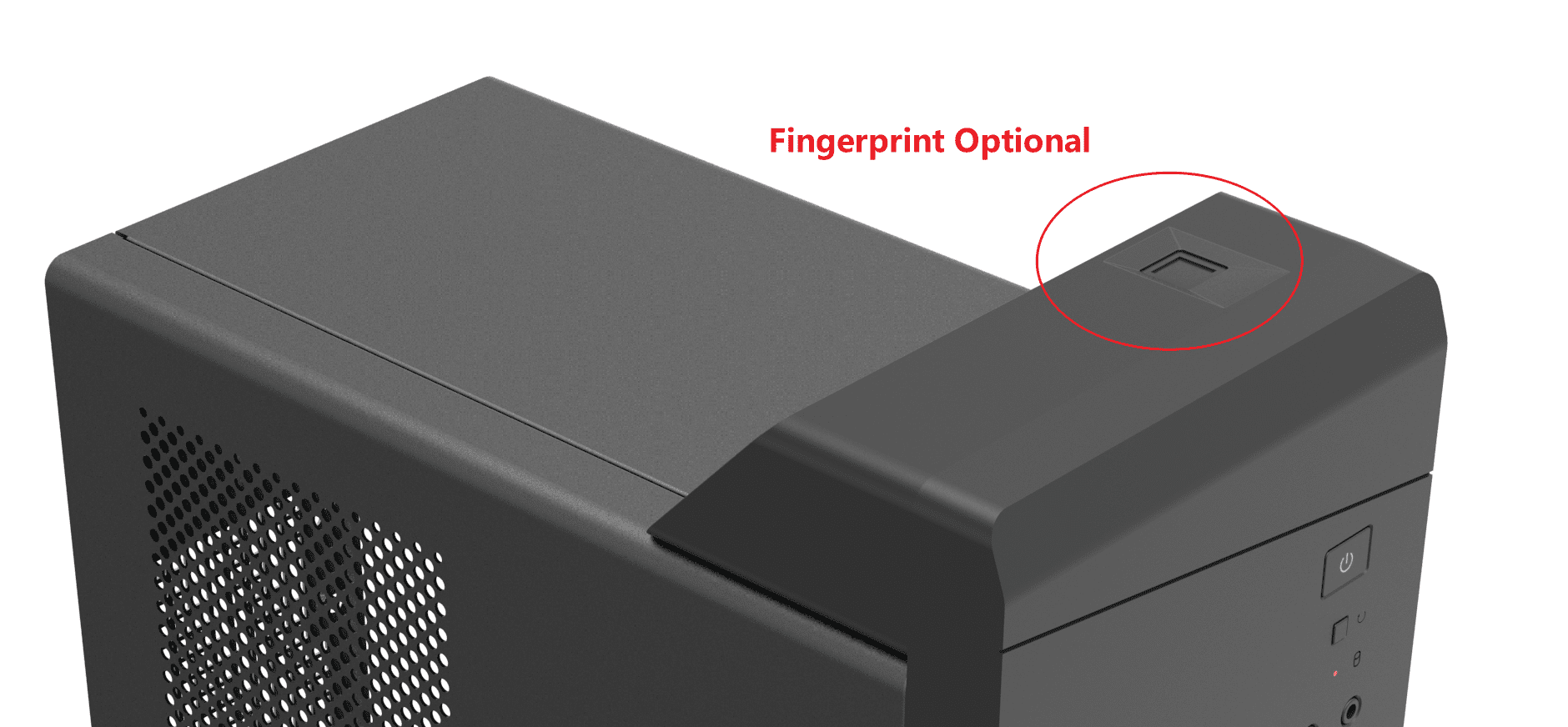

| Fingerprint | Top handle finigerprint option |
| Internal speak+Amplify | (optional) |
| Drive Bays 5.25'' exposed | 1 (Slim ODD) |
| Drive Bay 3.5'' exposed | 0 |
| Drive Bay 3.5'' hidden | 1 |
| Drive Bay 2.5'' SSD hidden | 1 |
| 1*3.5HDD+1*2.5SSD or 2*2.5SSD | |
| PCI Expansion Slots: | 4 |
| Graphic card size: | 150 mm (250mm at 2nd slot, w/o 3.5 install) |
| Maximum CPU cooler height: | up to 118 mm |
| Chassis Size: | 258*145*340mm |
| Case Size: | 295*145*385mm |
| Carton Size: | TBD |
| Packing: | Brown box |
| QTY in 20GP cntr(appr.): | 840 pcs (TBD by final carton box size) |
| QTY in 40HQ cntr(appr.): | 2050 pcs(TBD by final carton box size) |
