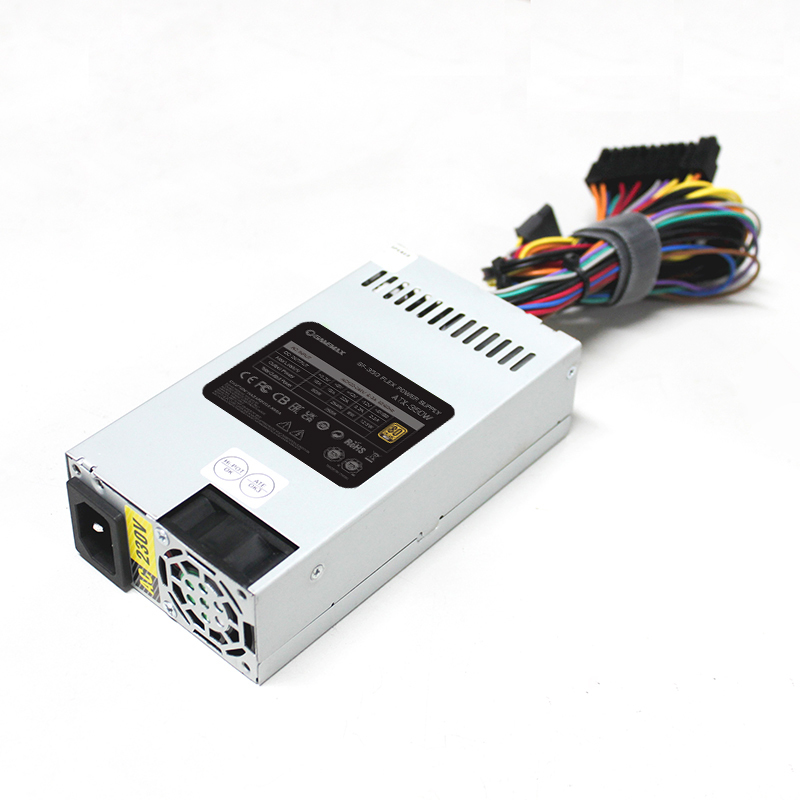

GF-350 (ATX-350W) 80+ APFC Gold Design Basis
Feature:
Flex 1U ATX 350W Flex Power Supply
80+ APFC Gold
Size is 150(L)*82(W)*40.5(H)mm
Complied with Flex ATX and ATX12V Standard
Meet EN61000-3-2
Compatible with European Union Directive 2002/95/EC (RoHS)
Internal 12V DC Fan
Low Noise and Ripple
Output Over Voltage, Short Circuit, and Over Current Protection
100% Hi-pot, ATE, and Burn-in Tested
FLEX ATX : GF-350 ATX350W | ||||||
AC INPUT | AC 100-240V 6-3A 50-60Hz | |||||
DC OUTPUT | +12V | +5V | +3.3V | -12V | +5VSB | |
350W | MAX COMINEO WATTS | 22A | 15A | 15A | 0.53A | 2.5A |
Total Power 350W |
