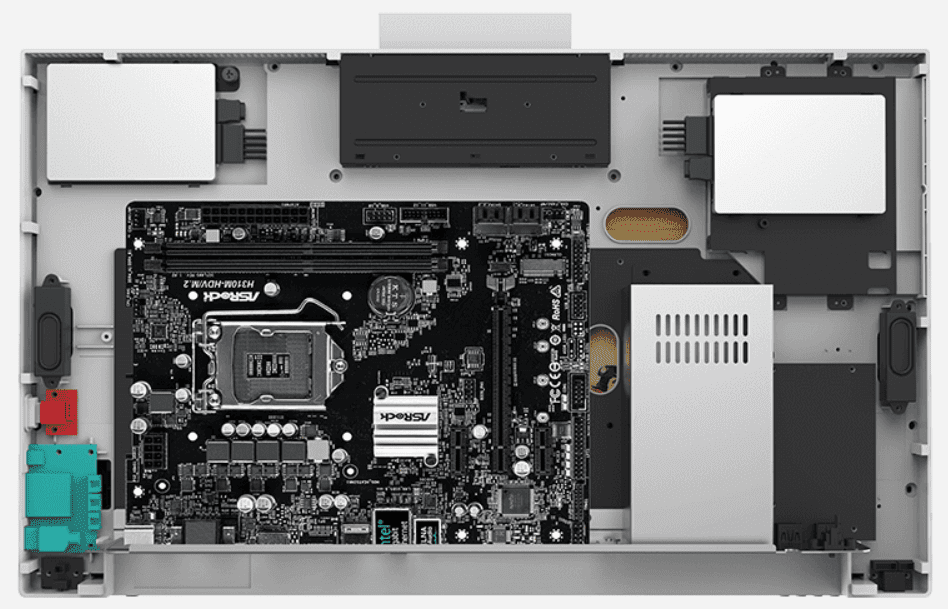

MATX MB Solution,Build-In Power supply

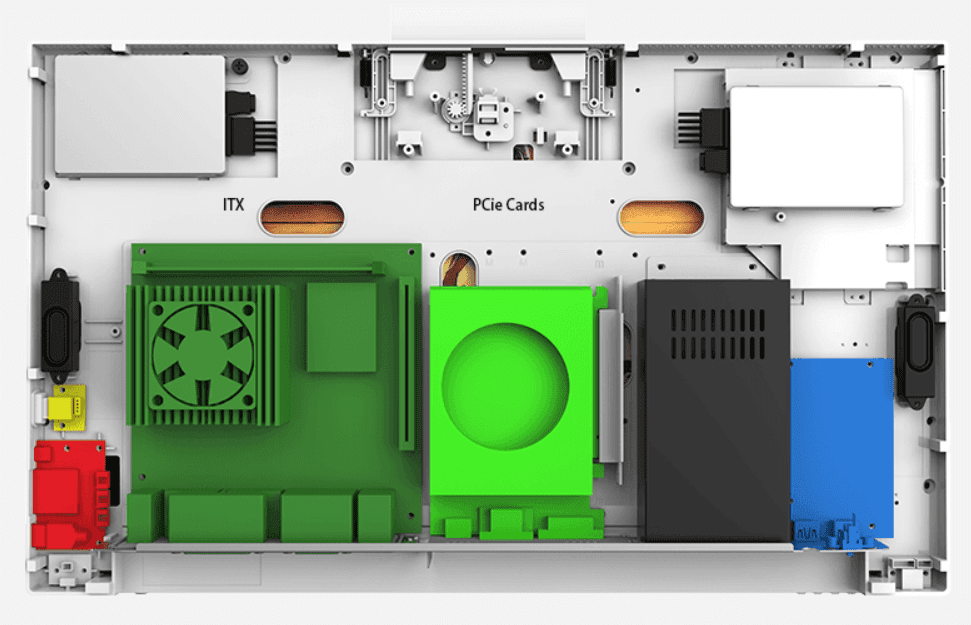

IF ITX MB, Support to install GPU Card
| LCD Panel | Panel Type Display Size | LED 23.8 frameless IPS/ADS | |
| Rate of Panel Resoluiton | 16:9 1920*1080 | ||
| Brightness Contrast | 200CD/㎡ 1000:1 | ||
| Surface treatment Viewing angle | Matte 89/89/89/178/178 degree | ||
| Standard part | Power supply(Included) | Flex 1U PSU 200-300W | |

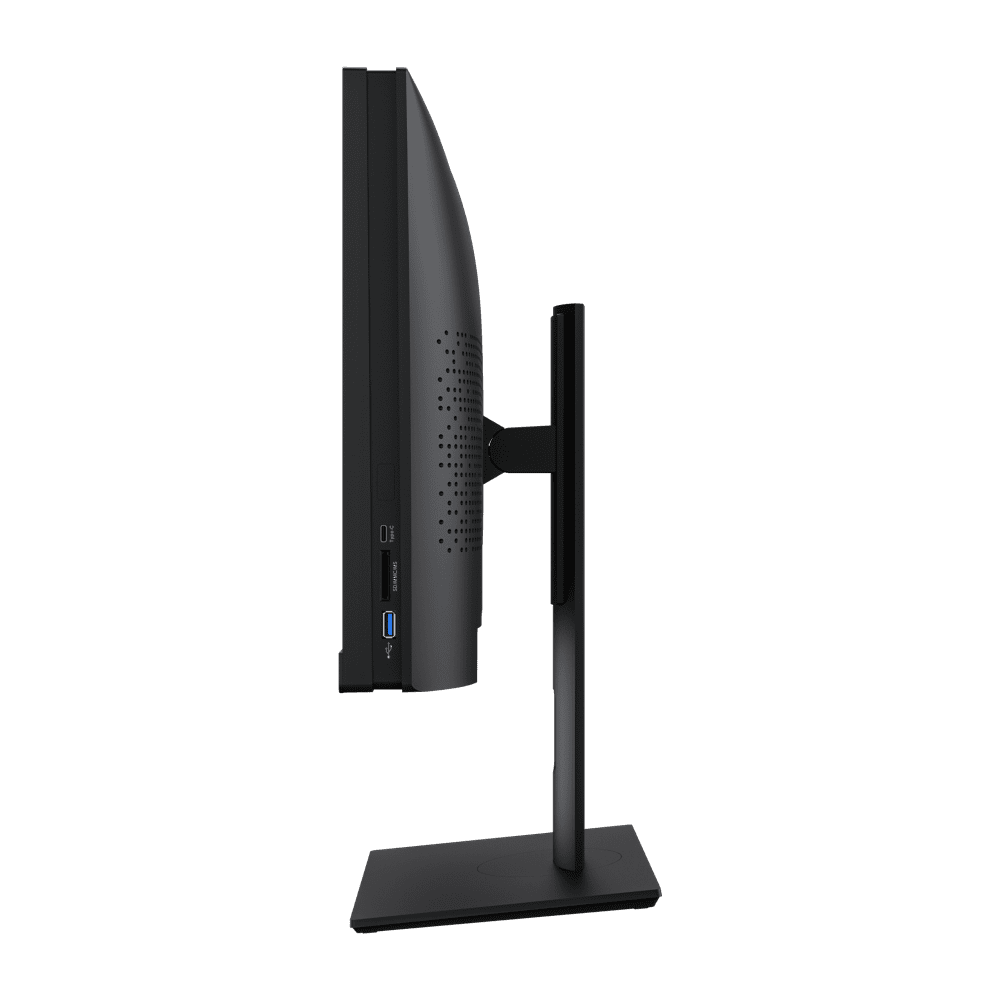

| USB(Included) | USB3.0*1(USB3.1 GEN1) Type-c*1/USB 2.0 and U3.0 | ||
| Audio | 1xCombo Audio | ||
| Card-Reader(Included) | Card-Reader(SD/MMC/MS) | ||
| Speakers(Included) | 4W*2 | ||
| Input signal | HDMI+DP | ||
| Camera | WebCam/Mic | 500W(5.0Mpx) With Dual Microphone，Push Up/Down | |
| Optional Part | CPU Cooler (Option) | E86/A96/..etc ( Height≤38MM） | |
| FingerPrint | Optional | ||
| Motherboard Type | Mirco ATX: 244.4*210mm ITX:170*170mm | ||
| Hardware factor | Rear IO Ports | by MB default | |
| Graphics card | L≤170mm*W≤106mm* H≤30mm | ||
| HDD Type | SSD*2 | ||
| ODD Type | Support to fix 9.5MM slim ODD | ||
| WIFI+BT | USB wifi+BT WN-155A | Optional | |

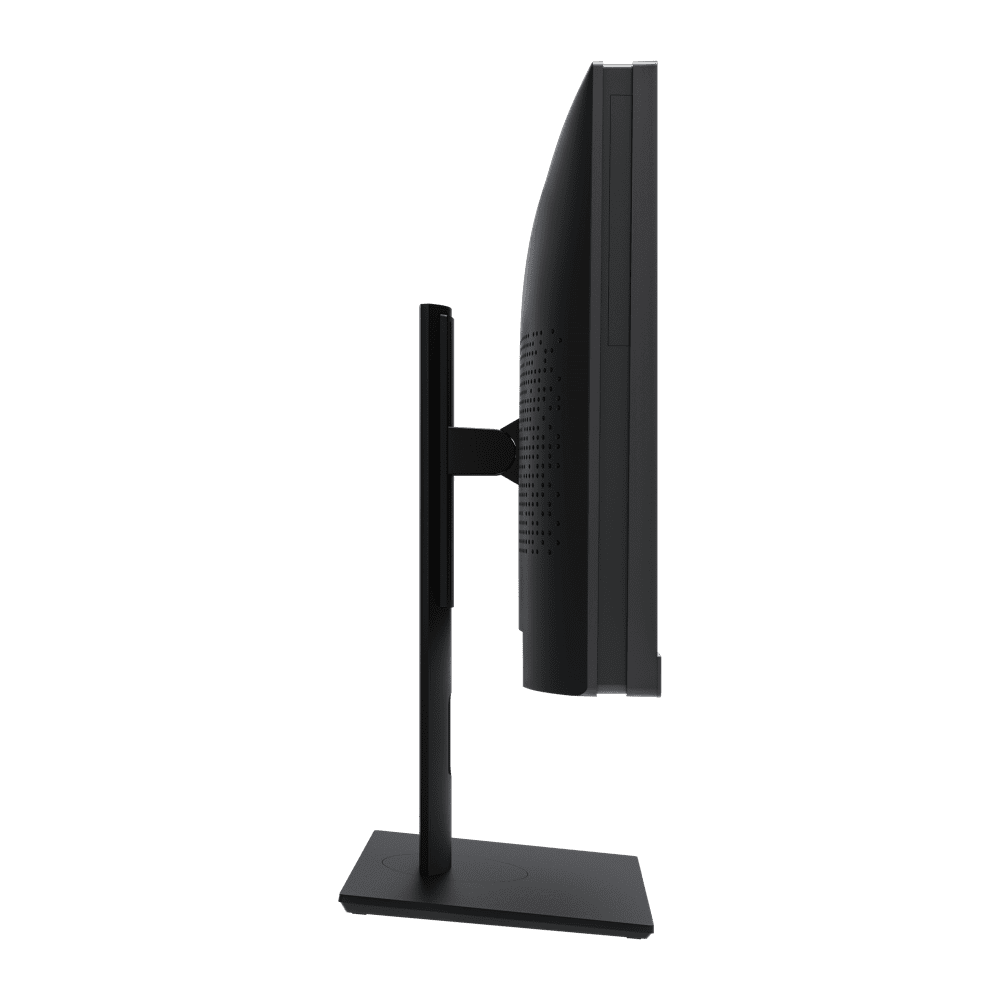

| Adjustable Stand | UP/Down | 150mm | |
| Angle adjustment | Lean forward 10° and lean back 22° | ||
| VESA Type | 120*120 | ||
| Rotate | Base Swivel angle： clockwise 45 ° , counterclockwise -45° | ||
| VESA Rotation angle： right rotation 90 ° | |||
| Packing Ref | Product size | Without Stand (L*H*D） 538*326*71mm | Included Stand (L*H*D） 538*461*71mm |
| Weight Info | NW:6.6KG GW:7.7KG | ||
| Carton Size | Size | 590*170*465mm | |
| Additional feature: | VESA Mount Support | ||
| Kensington Security Support | |||
| Intrusion switch sensor alarm Optional | |||
