Main Features:

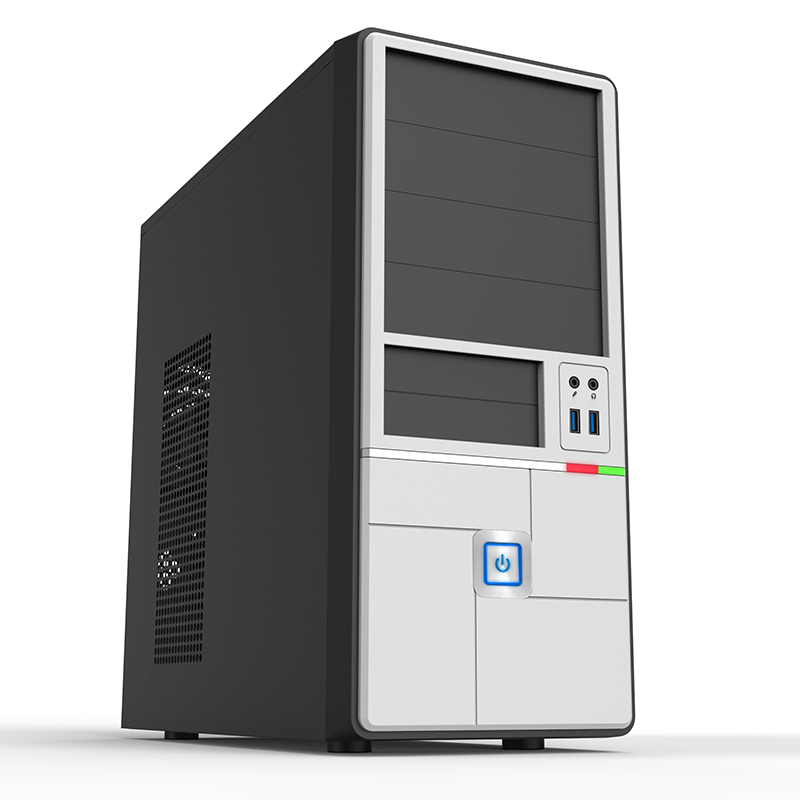

* Cool & versatile ATX chassis design
* Excellent thermal solution
* Front Optional 120 mm Case fan
* 0.6 or 0.5mm Steel structure
* Optional Tool-free thumb-screw access side panels
* Efficient Air In-take, rear, front and side-panel
* Optimized internal space, fits large CPU coolers and long VGA cards
* Mainboard cut out for easy mounting of CPU cooler with back-plate
* Prepared for water cooling tubes and units
* Supports up to six (6) 3.5-inch & four (4) 5.25-inch drive devices
| Chassis dimension | 185(W) x 412(H) x 410(D)mm |
| Case dimension | 185(W) x 412(H) x 445(D)mm |
| Packing dimension | 226(W) x 492(H) x 455(D)mm |
| Net weight | 5.0 kgs |
| Gross weight | 6.0 kgs |
| Material | SGCC |
| Thickness | 0.5 or 0.6 mm |
| Colour | Black body, full black with silver button ,Optional |
| Motherboard size | ATX; Micro ATX |
| 5.25" bay | 4 |
| 3.25" bay (exterior) | 2 |
| 3.25" bay (interior) | 4 |
| Screwless | Optional |
| Audio | HD Audio |
| Connector | 2x USB, 1x Earphone, 1x Microphone |
| Fan space | 1x 8/9/12 cm (front), 1x8/9/12 cm (rear), TAC2.0 side panel |
Specification:
Dimensions Case | 467*185*445mm(L x W x H) |
Dimensions Chassis | 410*185*412mm(L x W x H) |
Material | 0.6 or 0.5mm Steel |
Colors | Black |
3.5 Bays | 6--- 4 internal, 2 external |
5.25 Bays | 4--- 4 external |
2.5 Bays | 1 or 2 internal |
Mainboard | ATX / Micro ATX |
Power supply | ATX |
Bracket slots | 7 |
Cooling | Pre-installed fan: |
Front:1*12cm LED fan | |
Options fans | Rear and side |
Front panel connection | 2*USB2.0, Audio x1, Mic x1(Supports AC'97 & HD Audio) |
Certifications | CE/ROHS |
MTBF | 5 years |
Operating Temperature | -20 to 70 oC |
Storage Temperature | -20 to 70 oC |
Packaging type | Brown carton |
Package Includes | * Case |
* User installation manual | |
* Screws bag | |
N.W. Weight | 5.1Kg |
G.W. Weight | 6.1Kg |
