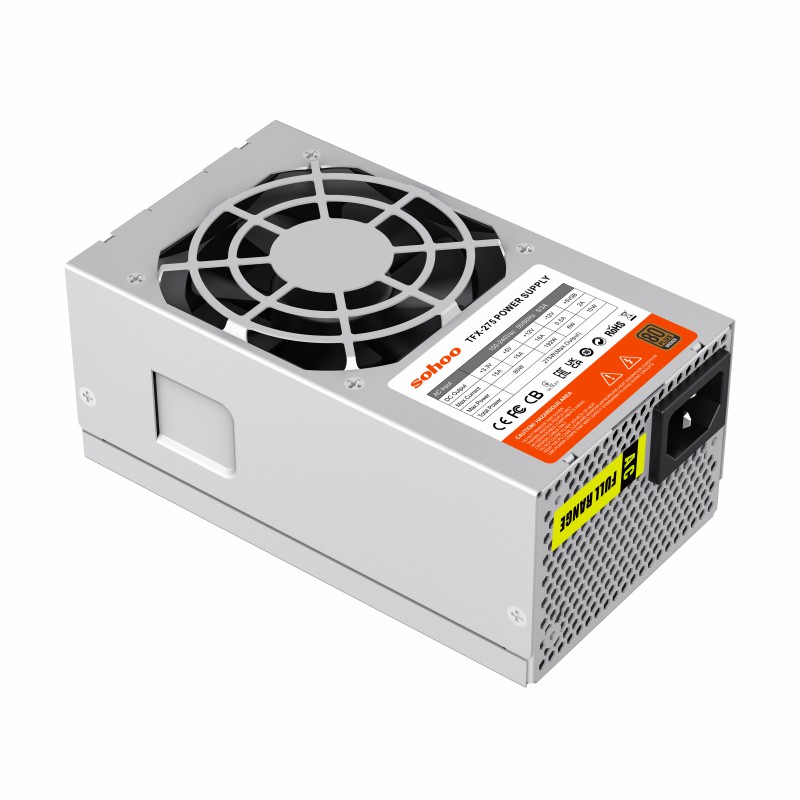

TFX 275 Power supply
Key Features
Compatible with ATX 12V 2.3
High-end SECC 0.6mm casing
150m length of housing, optimized for desktop SFF chassis
Low Noise 8cm Fan with intelligent fan speed control
Honeycomb ventilation design for optimal heat dissipation
Active Power Factor rate up to 0.99
OPP/OVP/UVP/SCP electrical protection included
Safety / EMI Approvals: CE,FCC
PSU Specifications
AC INPUT: 100-240 VAC 6~3A 50-60Hz | |||||
DC | +3.3V | +5V | +12V | -12V | +5VSB |
Output | 15A | 15A | 16A | 0.5A | 2.5A |
Max Watt | 275W |
TFX Short Type Housing Draw 65*85*150mm:
