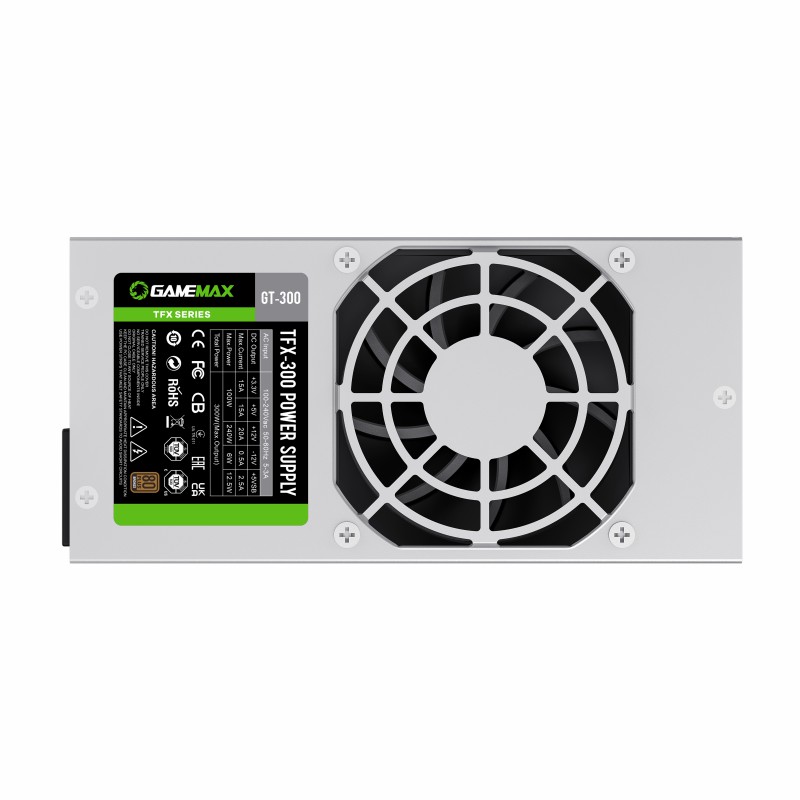

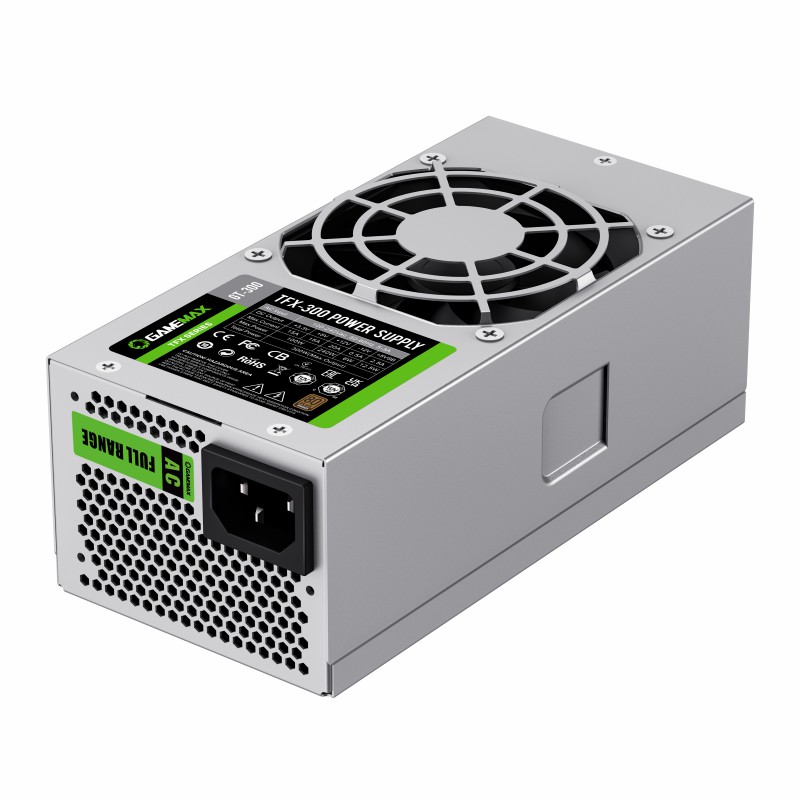

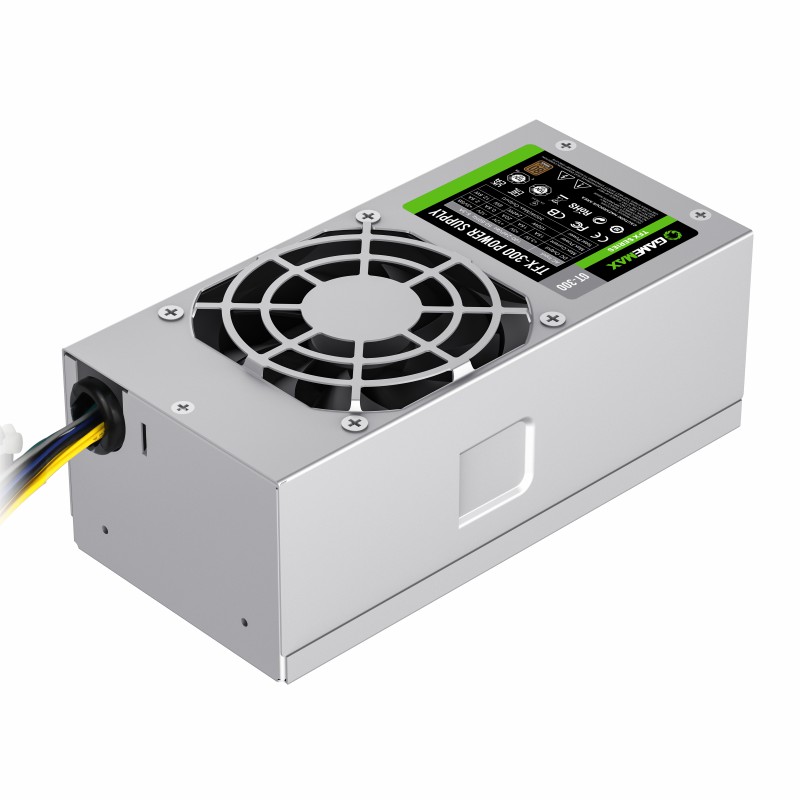

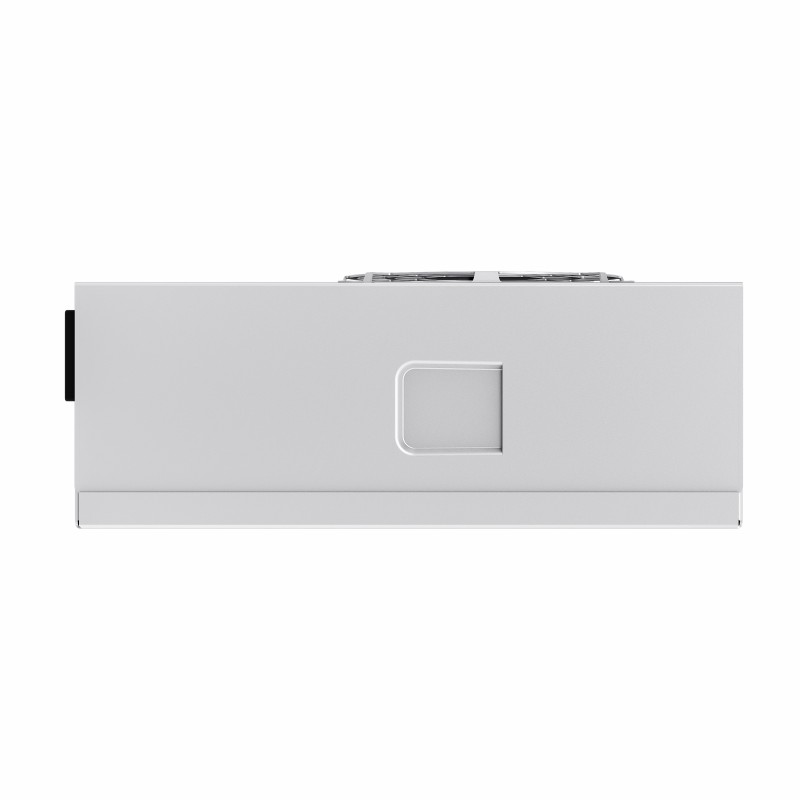

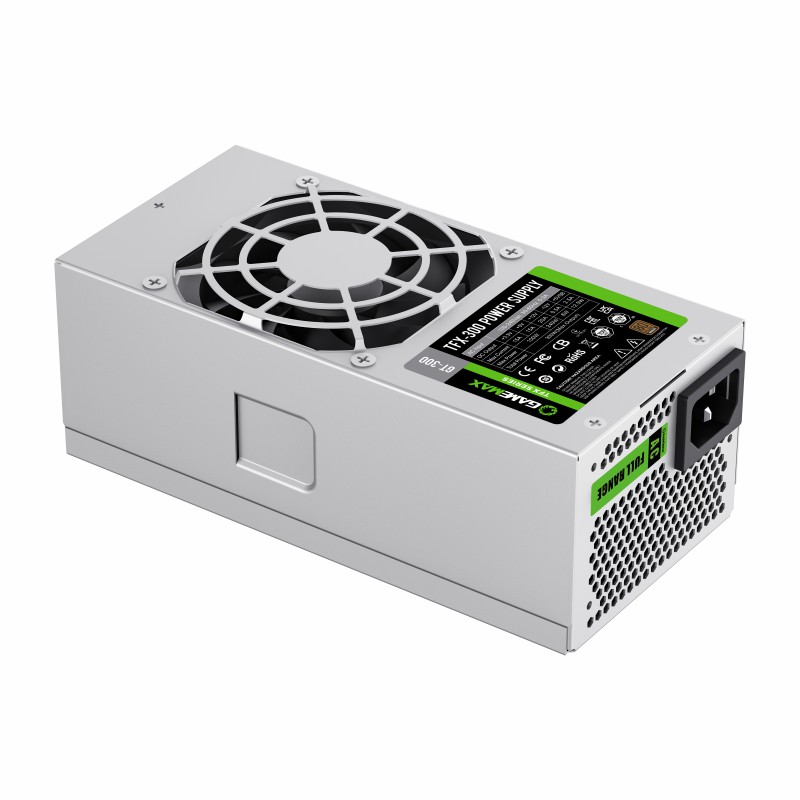

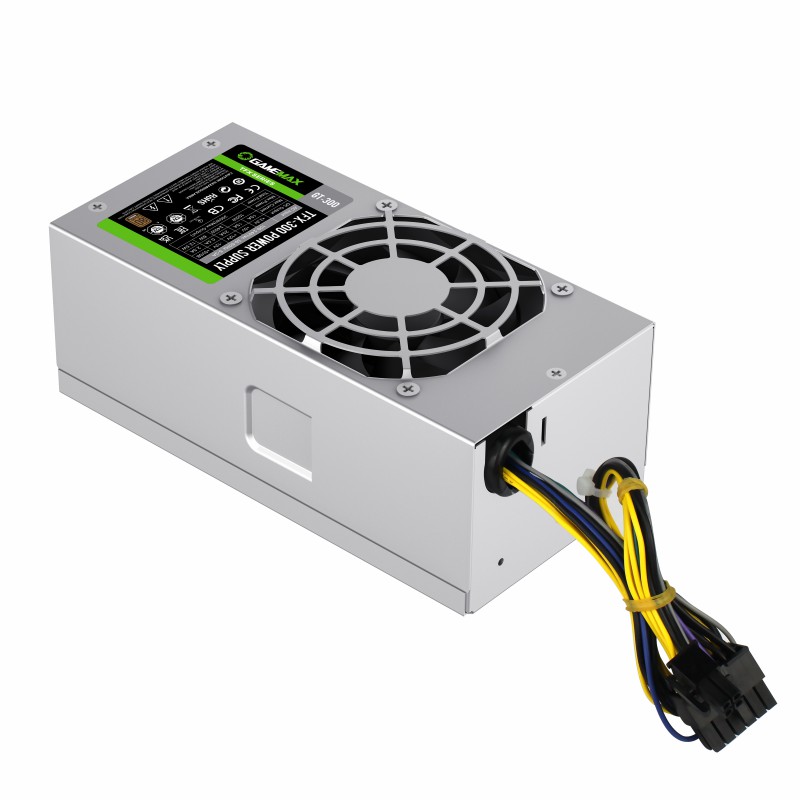

TFX-300 80+ Bronze
The Game Max GT-300W TFX offers you the most suitable cost/performance ratio and is certified for 80 PLUS Bronze, this active PFC unit runs at a max. of 85% efficiency, making it the best choice for a system builder. The 12V CPU power is available for a high-end gaming system (with a 4 + 4 CPU connector), with its 3 x L shaped SATA connectors meaning you can use it in a compact desktop chassis. Finally there is full electrical protection and official safety is promised by Game Max.
Details Specifications

Key Features

  • Compatible with ATX 12V 2.3

  • High-end SECC 0.6mm casing

  • High-Efficiency – 80+ 85% Certified

  • Low Noise 8cm Fan with intelligent fan speed control

  • Honeycomb ventilation design for optimal heat dissipation

  • Active Power Factor rate up to 0.99

  • OPP/OVP/UVP/SCP electrical protection included

  • Safety / EMI Approvals: CE,FCC,CB

PSU Specifications

AC INPUT: 100-240 VAC 6~3A 50-60Hz
DC
Output
Max		+3.3V+5V+12V1-12V+5VSB
15A15A20A0.5A2.5A
300W

Connectors

20+4 Pin Main Connectors:

1
4+4 Pin 12V Connectors:

1
SATA Connectors:

3
4-Pin Molex Connectors:

1

Detailed Specifications

Dimensions:85mm x 65mm x 175mm (W x H x D)
Input Voltage:100-240 VAC
Input Current:6~3A
Input Frequency Range:50-60Hz
PFC:Active PFC (>.99)
Power Good Signal:100-500 ms
Hold Up Time:1ms-40ms
Efficiency:> 81% (85% max)
MTBF:100,000 Hours
Protection:OVP / UVP / OPP / SCP
Power:300W
Operation Temperature:0-40癈
Safety:CE / FCC / CB
Cooling:8cm Fan
Noise:< 17 dBA
80 Plus Certified:Yes - 80 Plus Bronze

General Specifications

Manufacturer Part Number:GT-300
EAN Number:6931858750035
Has Mains Plug:No
Colour:Silver
What's In The Box:Power Supply
Screws
2 x Cable Ties
1 x Velco Strap
1 x Manual
Unit (Product) Dimensions (mm):85mm x 65mm x 175mm (W x H x D)
Packaging Dimensions (mm):140mm x 75mm x 210mm (W x H x D)
Net Weight (KGs):0.9 KGs
Gross Weight (KGs):1 KGs
