Features:
Ultra thin

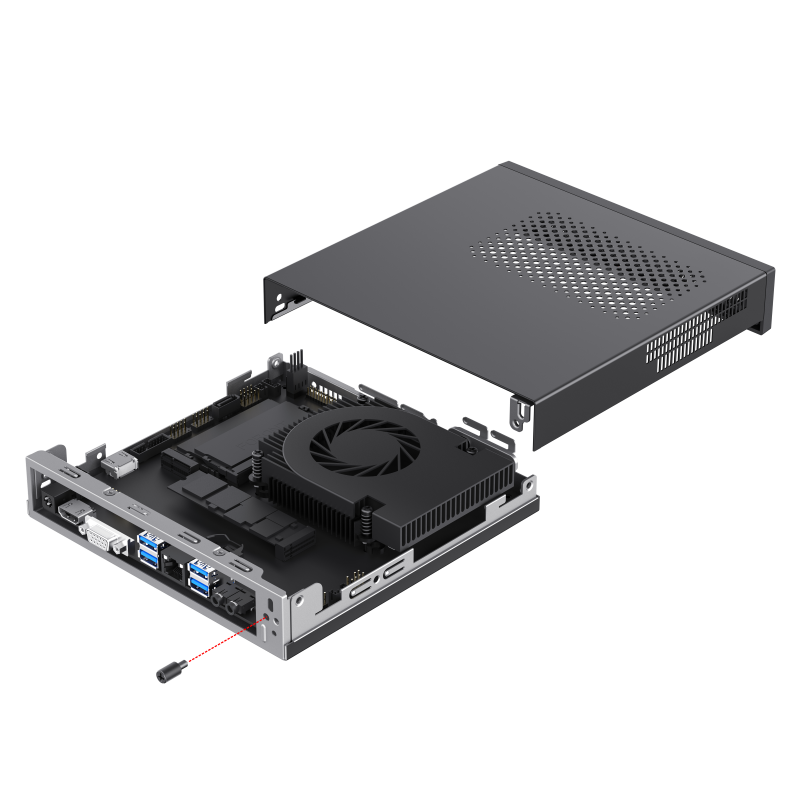

Thin-Mini-ITX Chassis (1L Design)
External power solution

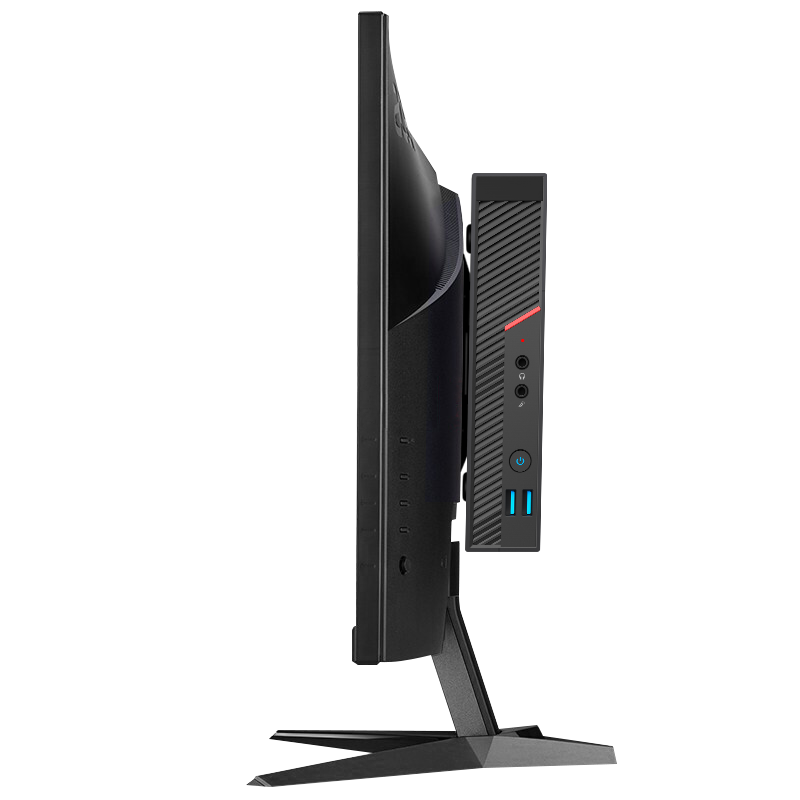

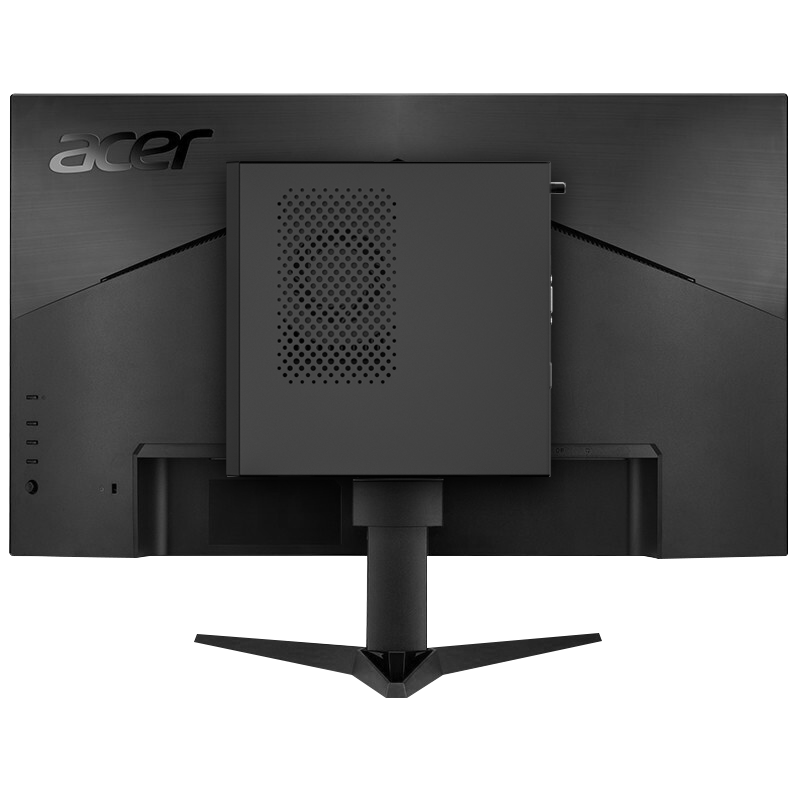

VESA mount support
1x 120W/90W adapter (Optional)
CPU Cooler height<19mm (Optional)
Sepcifications:
| Model No.: | N500-2U |
| Type: | Compact PC case |
| MB form factor : | Thin-Mini ITX Motherboard(1L design chassis) |
| Front Panel: | Elegant matte finish with hidden airflow hole |
| Side Panel: | Air vent side panel for better heat disspation |
| Top Panel: | Top with air vent for better heat disspation |
| Bottom Panel: | Bottom with air vent for better heat disspation |
| Chassis: | 0.6mm, SGCC outside black painting |
| Front USB Ports: | USB2.0x 2 +HD-Audio |
| Upgrade to USB3.0x 1 (Optional) | |
| Upgrade to USB3.0x 2 (Optional) | |
| 1xTpye C (Optional) | |
| PSU (DC-AC/Adapter(optional): | 12V or 19V DC Adapter 60/65W |
| 12V or 19V DC Adapter 90W | |
| 12V or 19V DC Adapter 120W | |
| AC EU PowerCord for Adapter | |

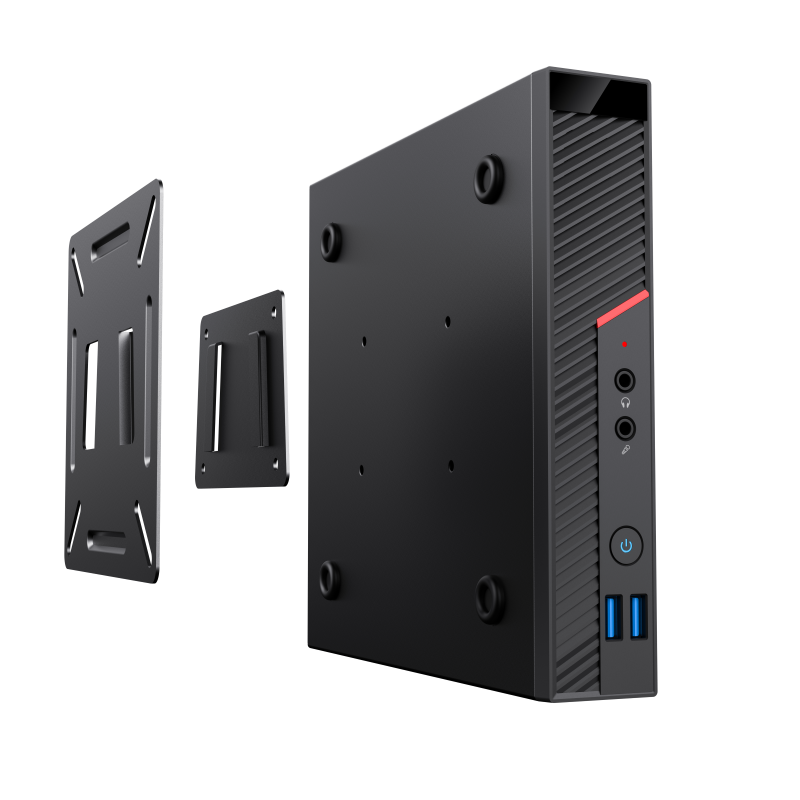

| VESA MOUNT(optional) | Support as Optional |
| Drive Bay 1x 2.5'' SSD | 1 x 2.5" HDD or SSD |
| SATA HDD Power cable | (optional) |
| SATA HDD Data cable | (optional) |
| Security : | Kensington lock |
| PC foot stand : | plastic foot stand and rubber foot |
| Build-in Speaker : | Optional |
| Chassis Size: | 179 x 36 x 183 mm (without front panel) 183x36x183mm (with front panel) |
| Certify of chassis | Match with CE/EMI standard |
