6075 AB | Form Factor | MICRO ATX |
Chassis | SPCC :0.6mm | |
PSU Form Factor | Bottom/ATX | |

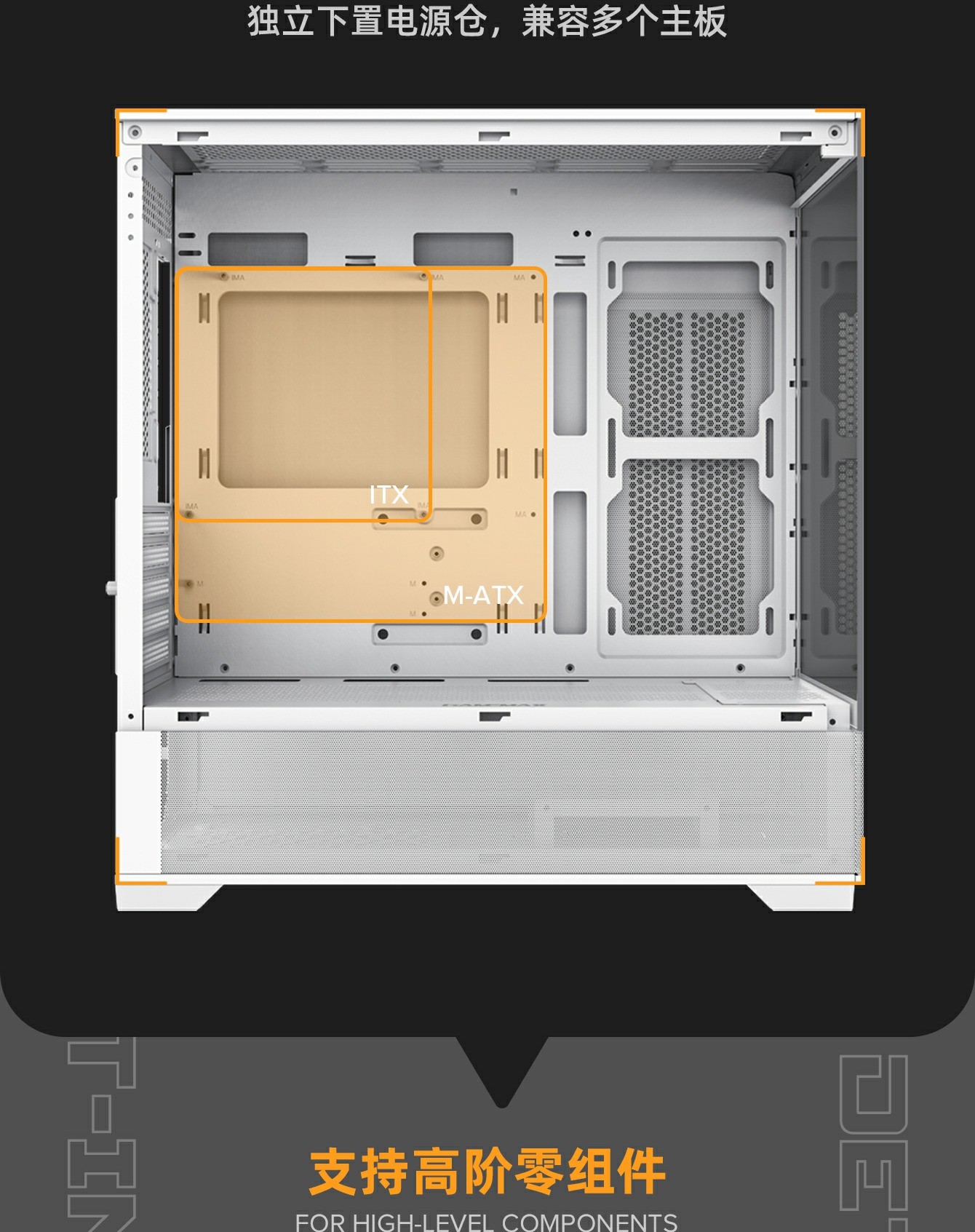

M/B Form Factor | M-ATX、ITX | |

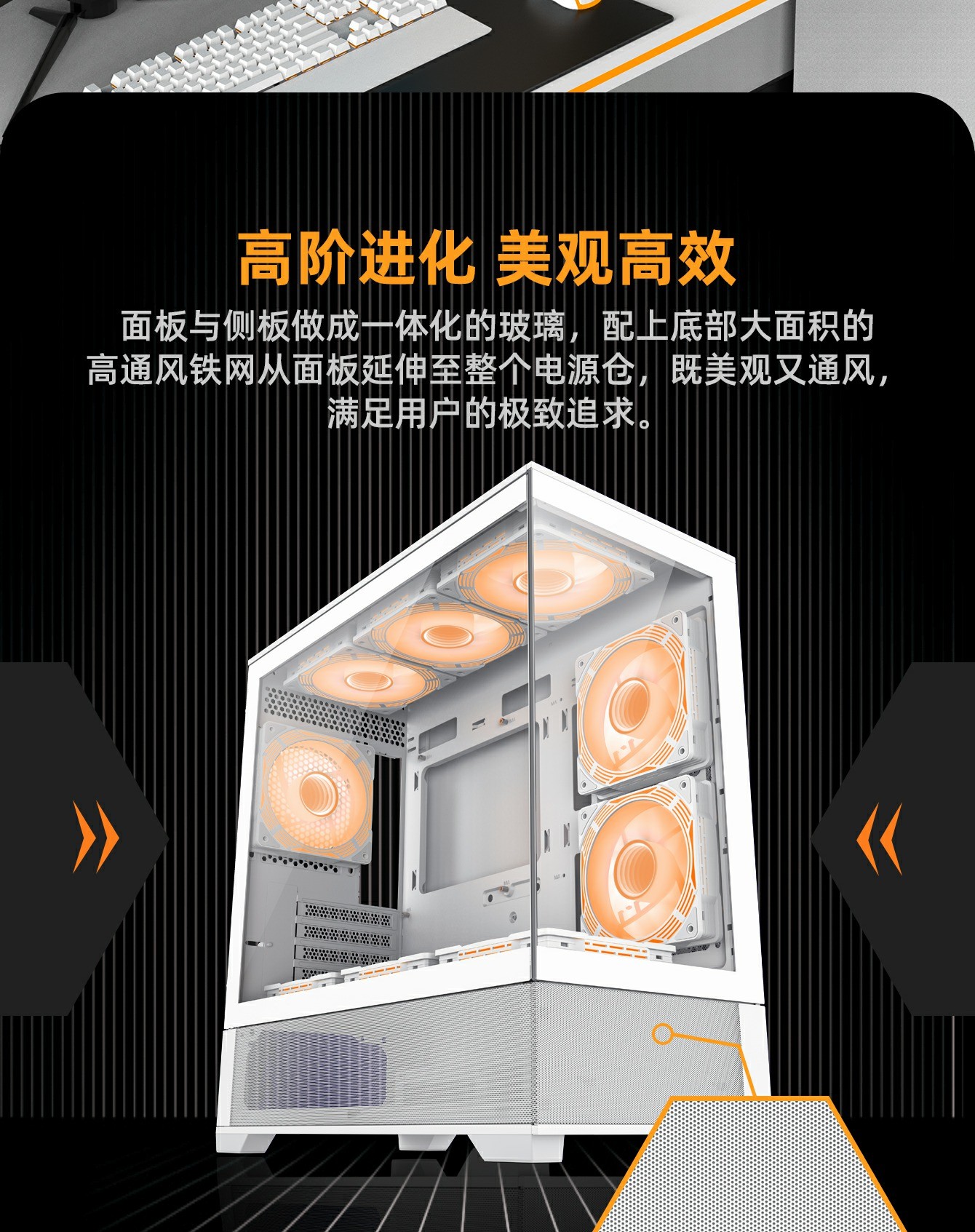

Front Panel | Tempered Glass,Mesh | |
Top Panel | Metal cover | |

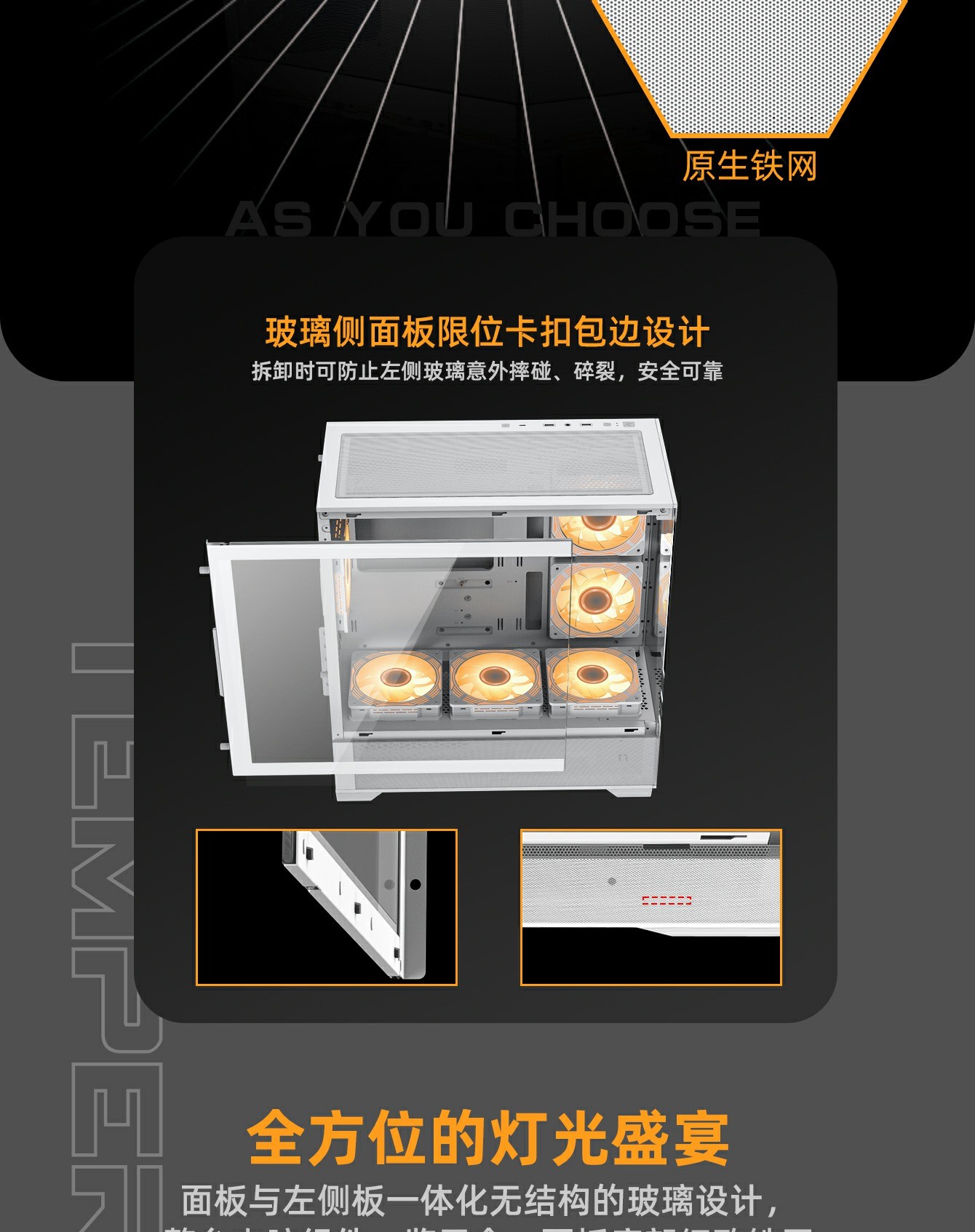

Side Panel | Left | Tempered Glass,Mesh |
Right | metal cover | |
External Drive Bay(s) | 5.25" (ODD) | *0 |
3.5" | *0 | |
Internal Drive Bay(s) | 3.5" (HDD) | *2 |
2.5" (SSD) | *2 | |

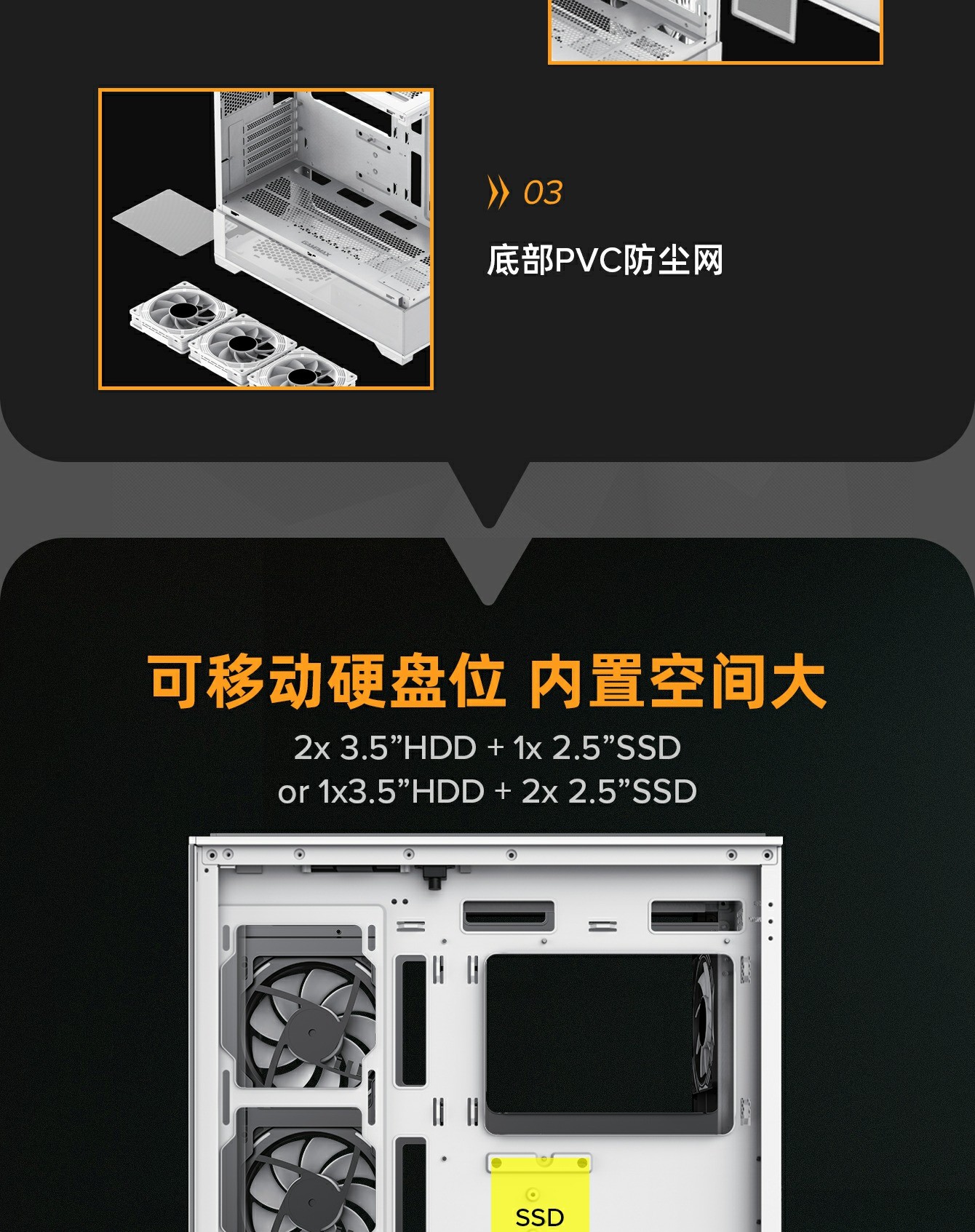

1*3.5HDD+2*2.5SSD or 2*3.5HDD+1*2.5SSD | ||

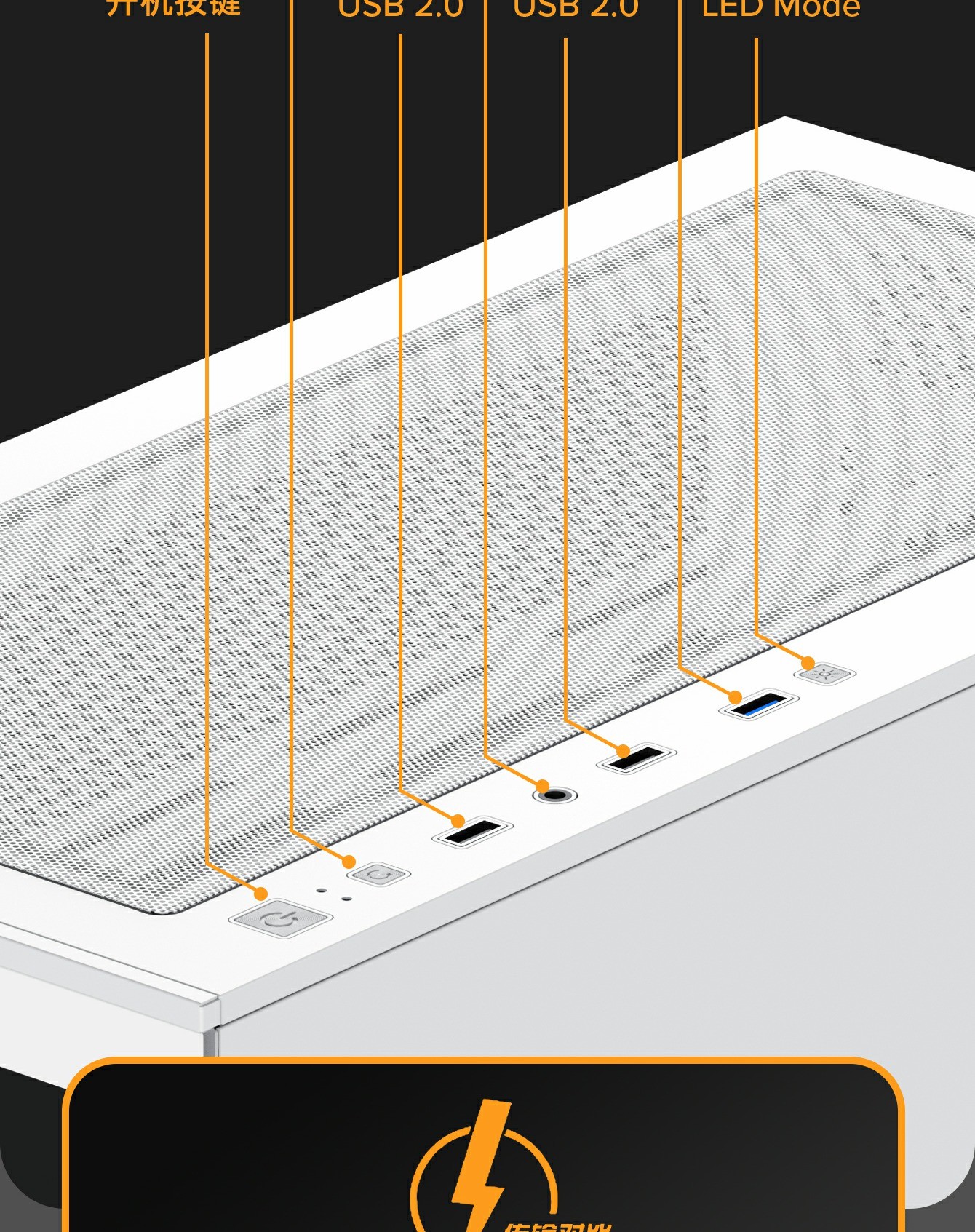

I/O | Buttons | *3 |
USB2.0 Port(s) | *2 | |
USB3.0 Port(s) | *1 | |
Audio Support | *1 (COMBO AUDIO) | |
Card Reader (Support) | *0 | |
RGB Controller | *1(Optional) | |
Controller max. fans | *0 | |
RGB Controller max. LED strips | *0 | |
Remote (IR or RF) | *1(Optional) | |

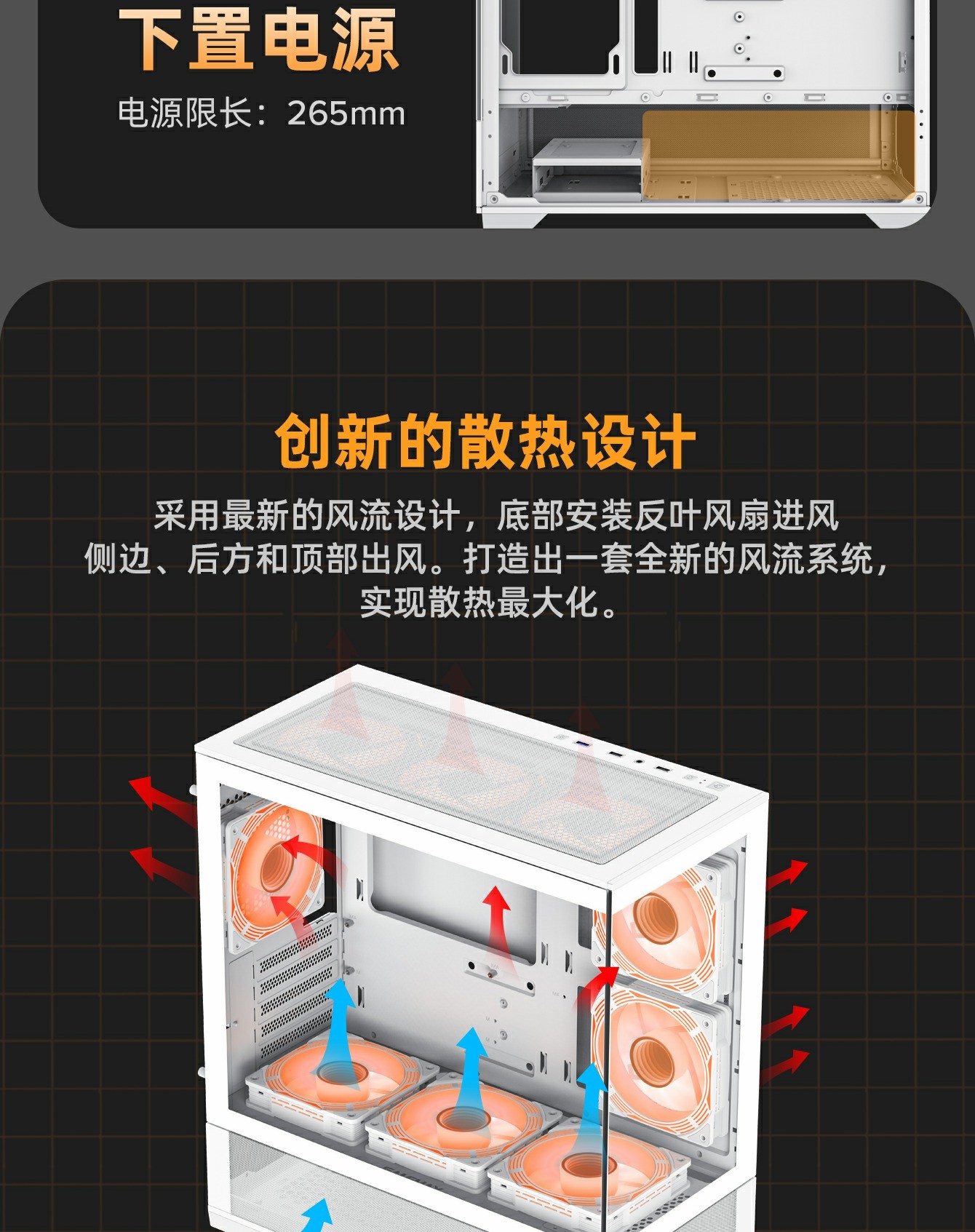

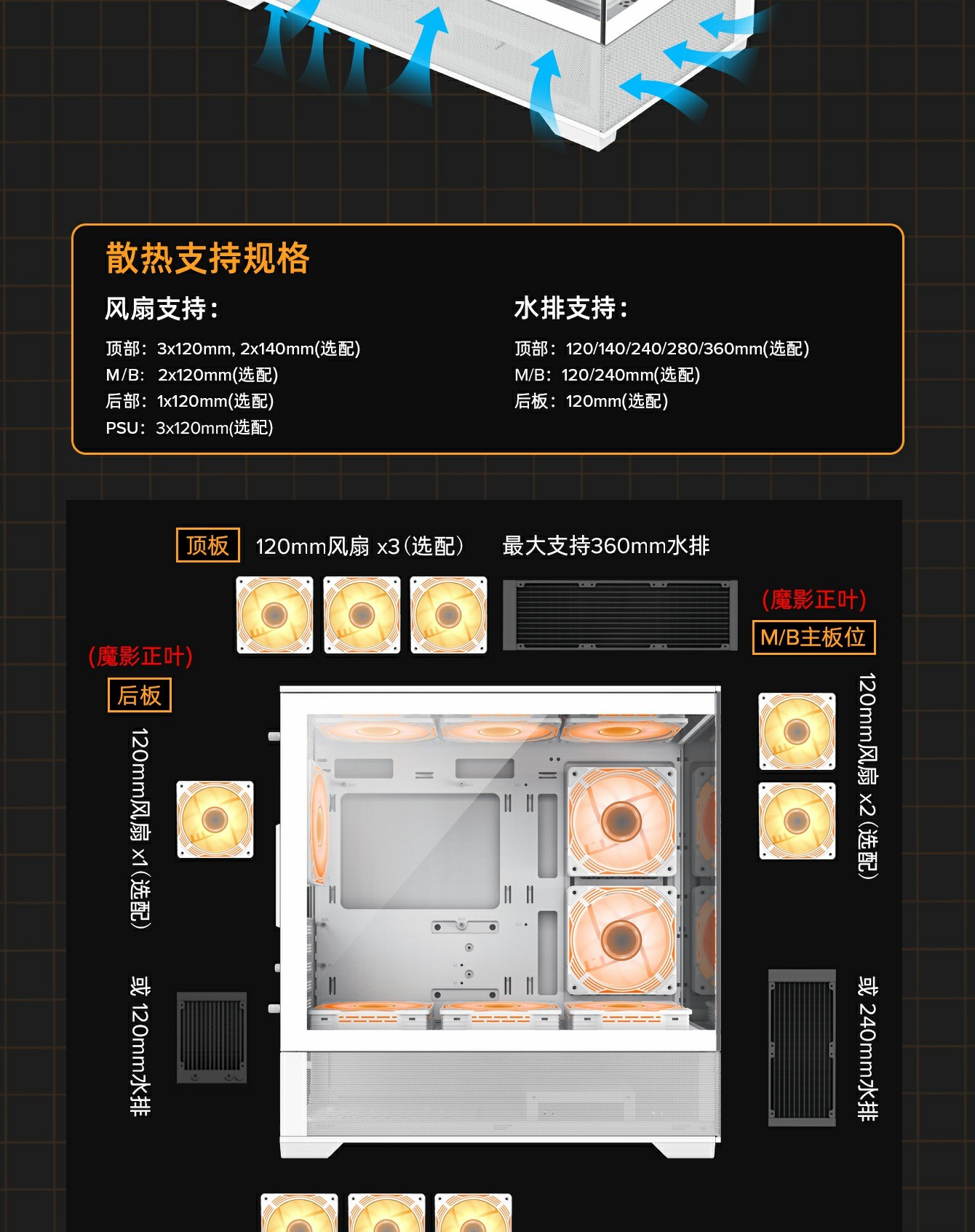

Cooling Fan Support | Front | *0 |
Top | 3x120mm ,2x140mm (Fan optional) | |
Rear | 1x120mm (Fan optional) | |
M/B Cover | 2x120mm (Fan optional) | |

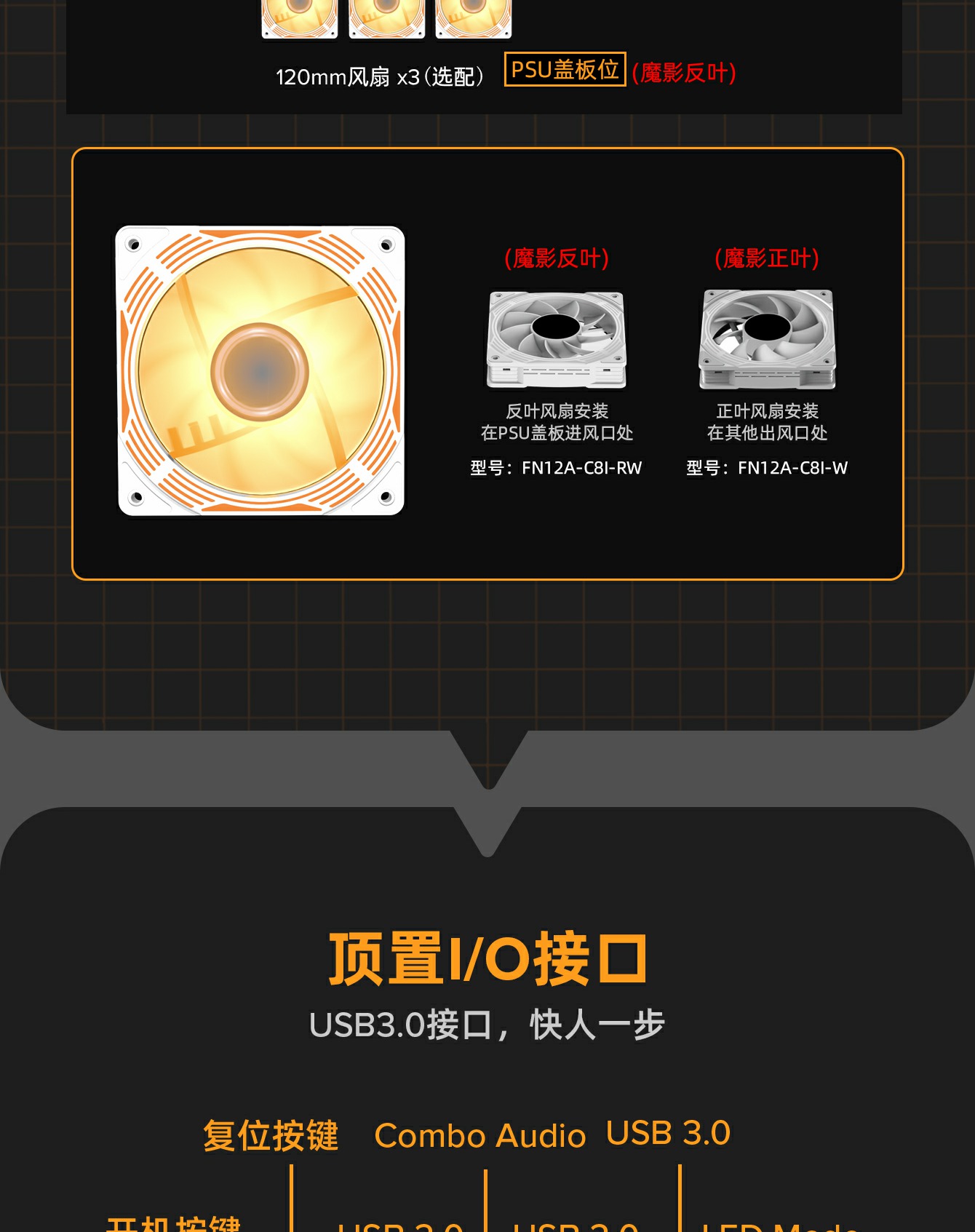

PSU Cover | 3x120mm (Reverse fan blade)(Fan optional) | |
Water Cooling Support (Radiator Size) | Front | *0 |
Top | 120mm, 140mm,240mm,280mm,360mm | |
Rear | 120mm | |
M/B Cover | 120mm, 240mm | |

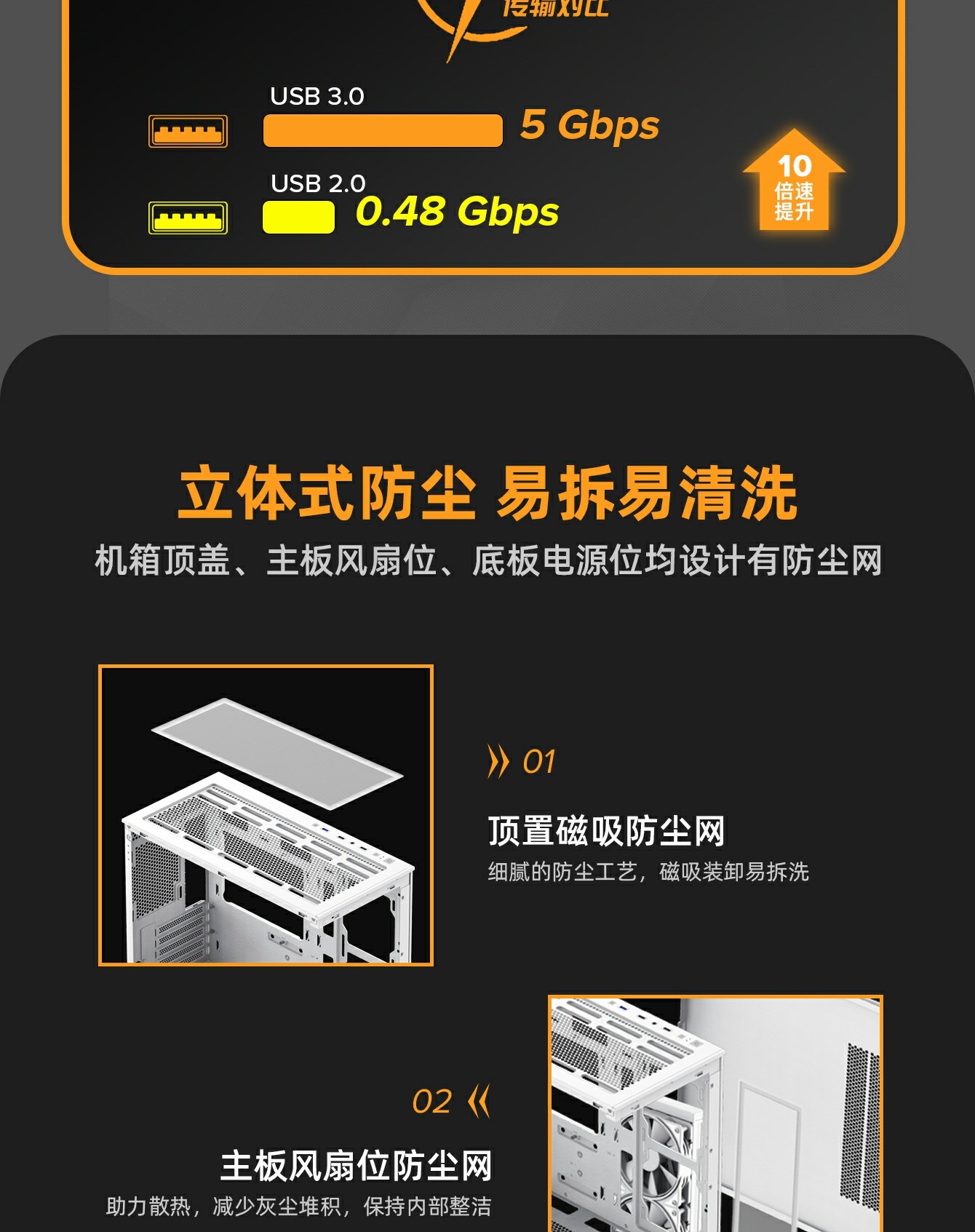

Dust Cover | Bottom, right side panel and top cover with dust filter | |

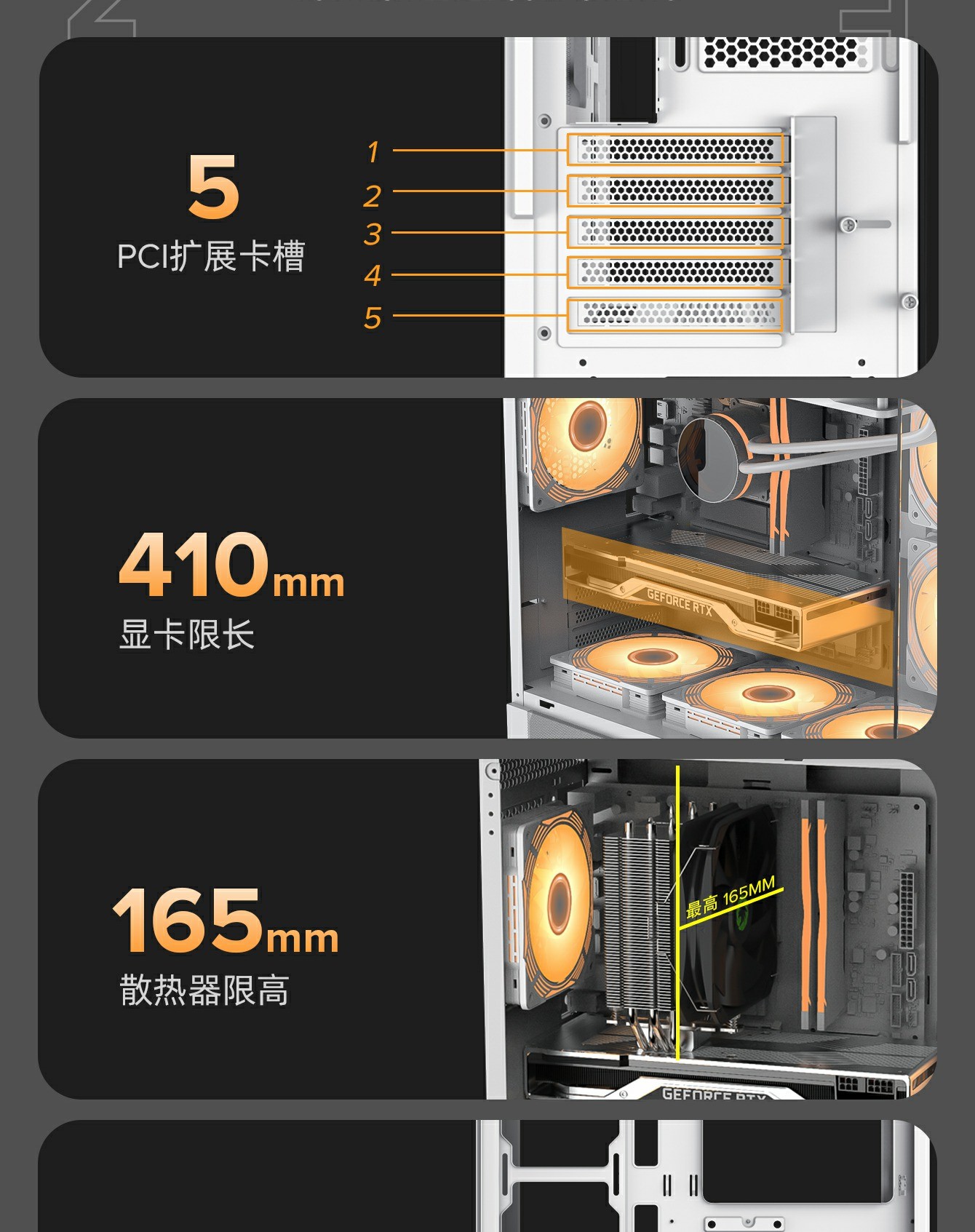

Slots | *5 | |

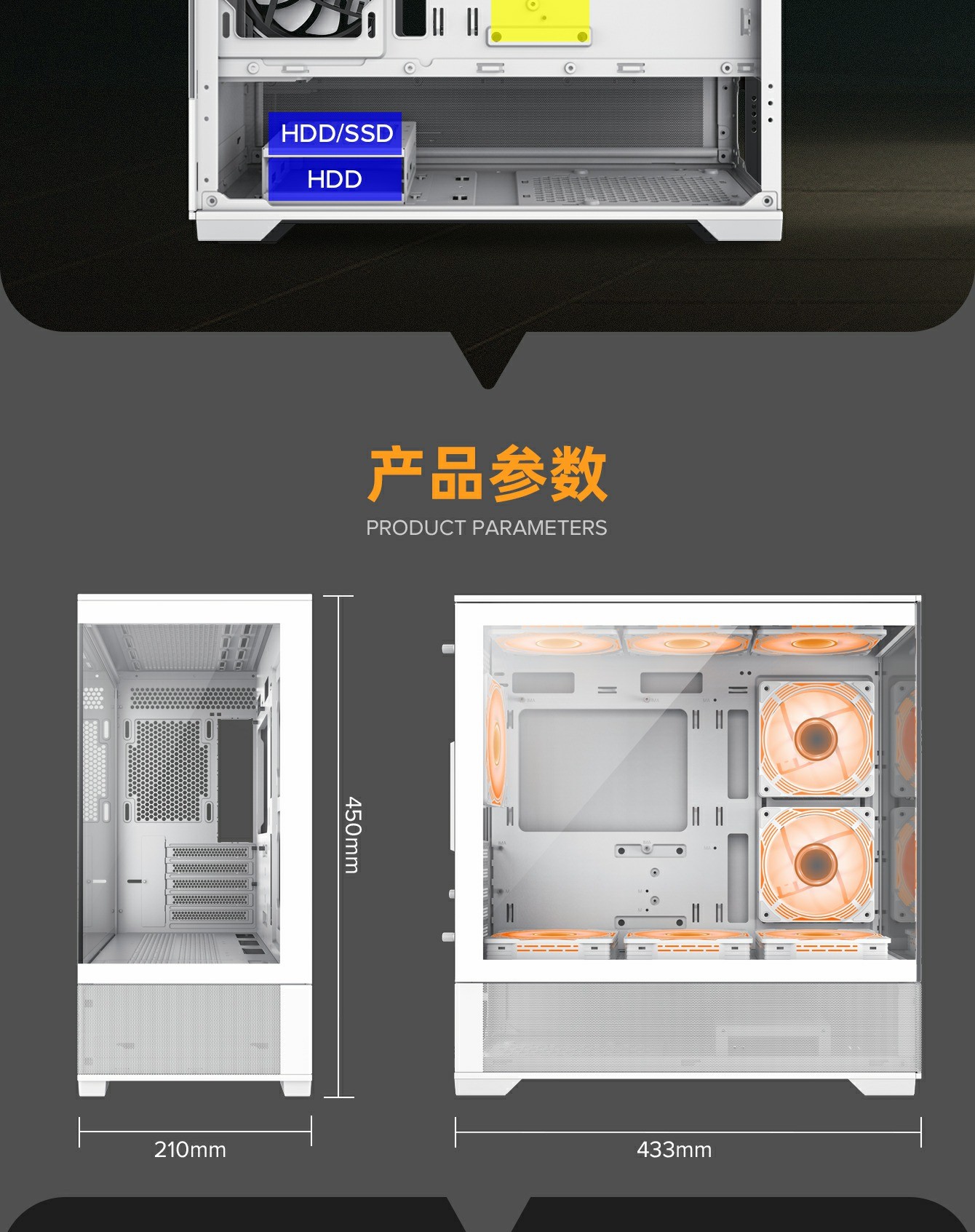

Dimensions | Chassis | (L)415*(W)210*(H)435mm |
Full Case (inc Fascia) | (L)433*(W)210*(H)450mm | |
Carton | (L)517*(W)282*(H)496mm | |
VGA Card Length | Up to 410mm | |
CPU Cooler Height | 165mm | |
SPS Length | up to 265mm | |
Cable Management Depth | 25mm |
