MFG(8852) | VISTA | SPECIFICATION |
Form Factor (Midi, Micro, Mini ITX, Full) | MID-TOWER | |
Chassis | SPCC : 0.6mm | |
PSU Form Factor | Bottom/ATX | |

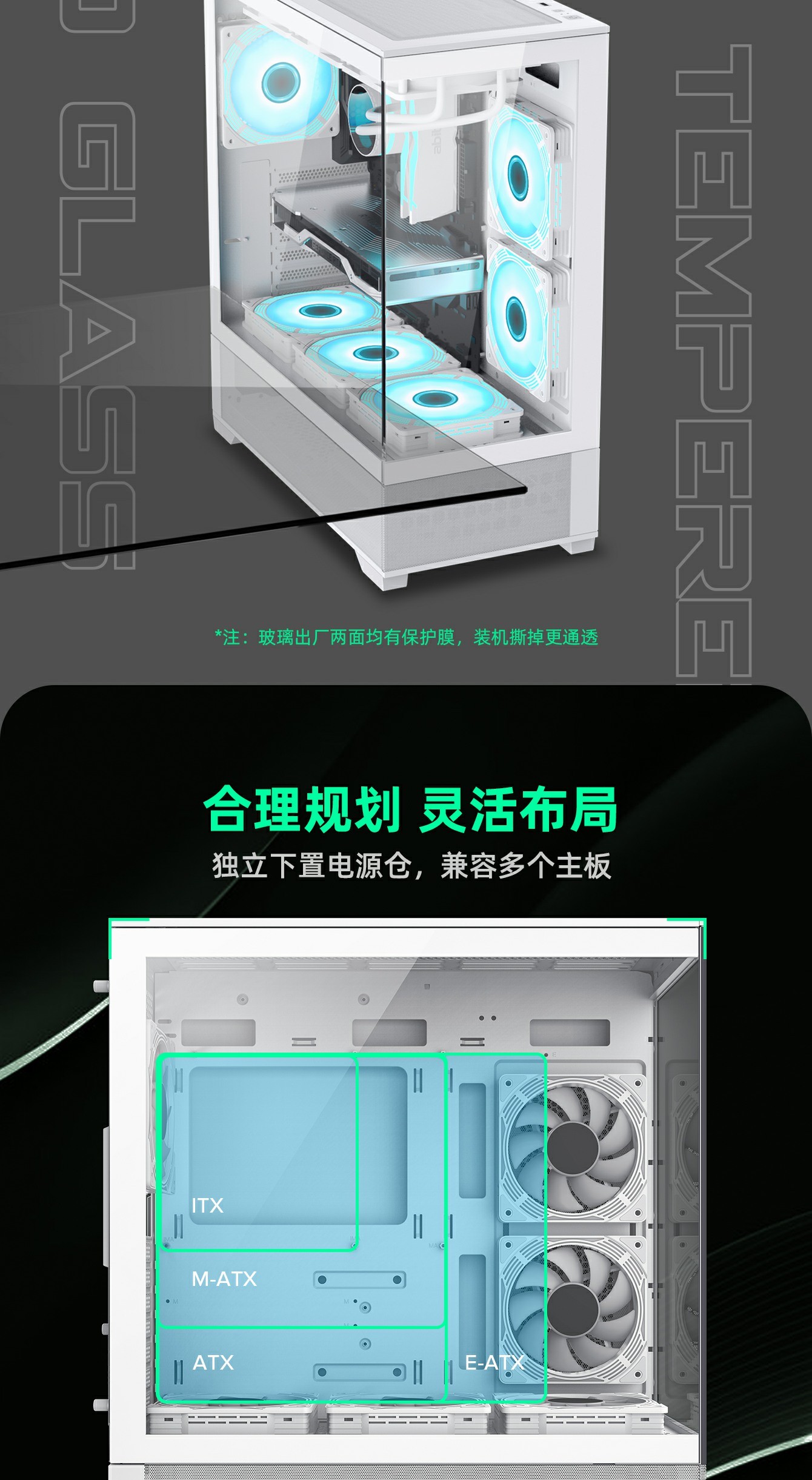

M/B Form Factor | E-ATX、ATX、M-ATX、ITX | |
Front Panel | Tempered Glass,Mesh | |
Top Panel | metal cover | |

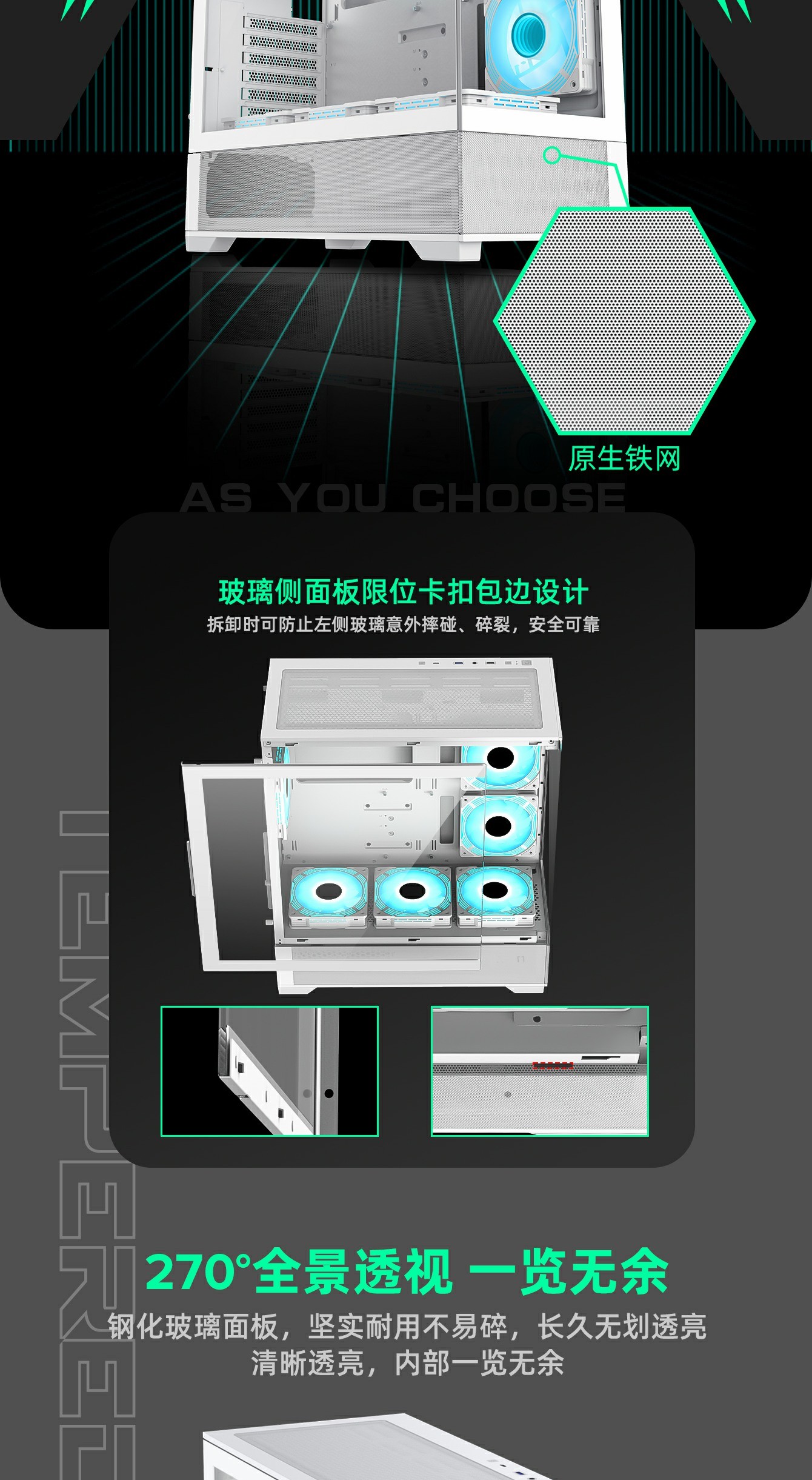

Side Panel | Left | Tempered Glass,Mesh |
Right | Metal cover | |
Internal Drive Bay(s) | 3.5" (HDD) | *2 |

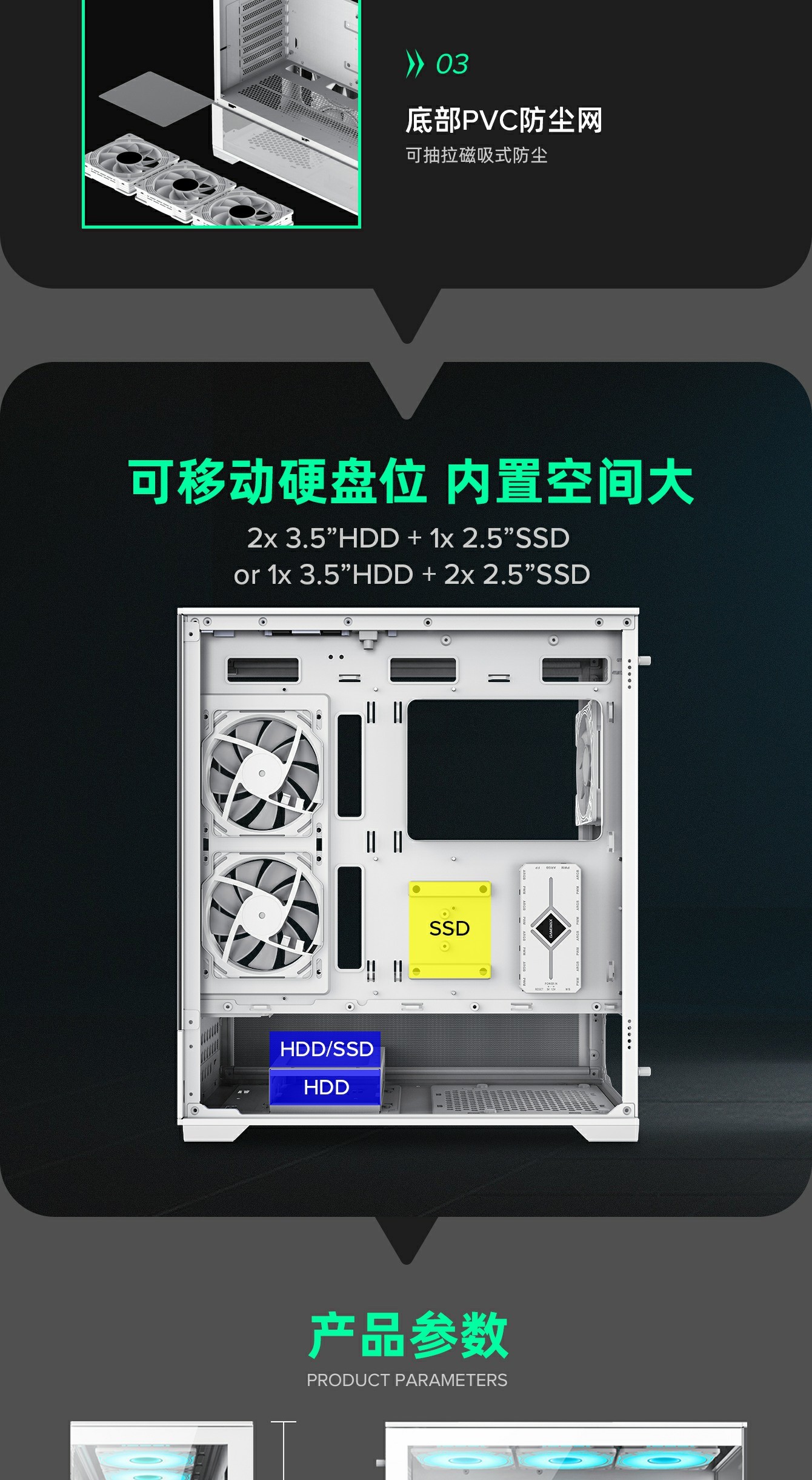

2.5" (SSD) | *2 (1*3.5HDD+2*2.5SSD or 2*3.5HDD+1*2.5SSD) | |

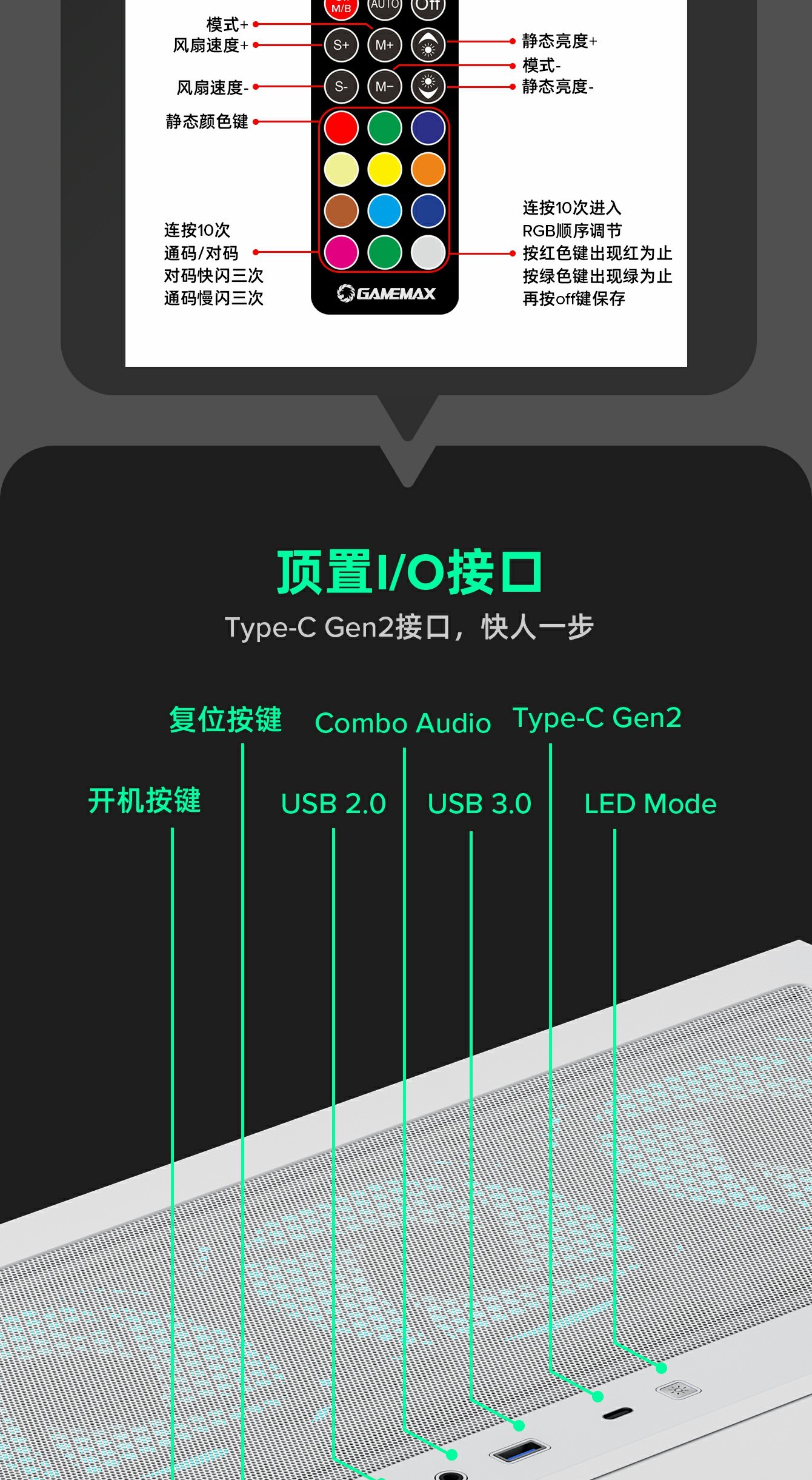

I/O | Buttons | *3 |
USB2.0 Port(s) | *2 | |
USB3.0 Port(s) | *1 | |
USB3.2 Port(s) | *1 x Type-C (Gen2,Type-E,Mini 20pin) (optional) | |
Audio Support | *1 (COMBO AUDIO) | |
RGB Controller | V4.0 ARGB HUB PWM REMOTE (optional) | |
Controller max. fans | *9 | |
RGB Controller max. LED strips | *9 | |
Remote (IR or RF) | *1 | |

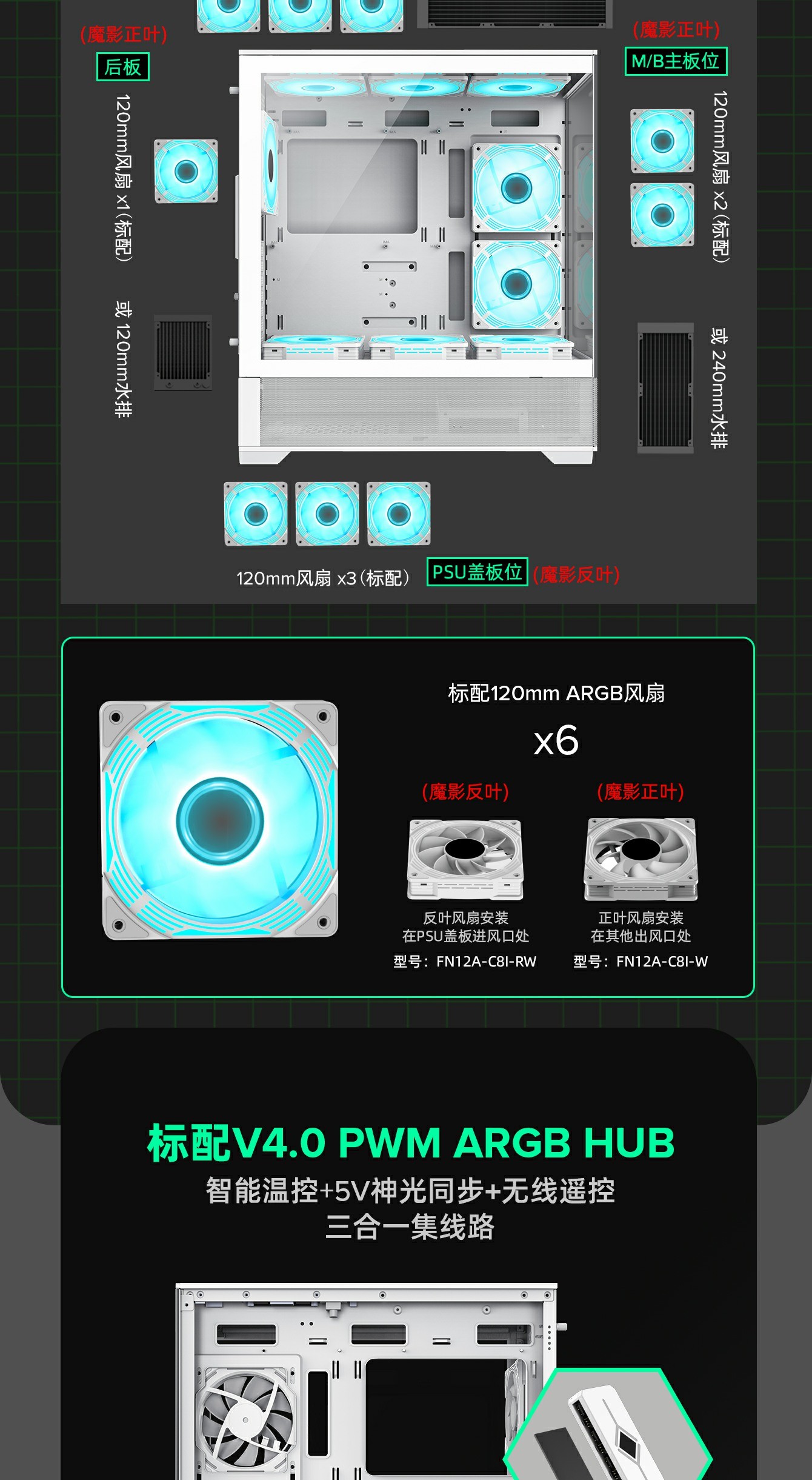

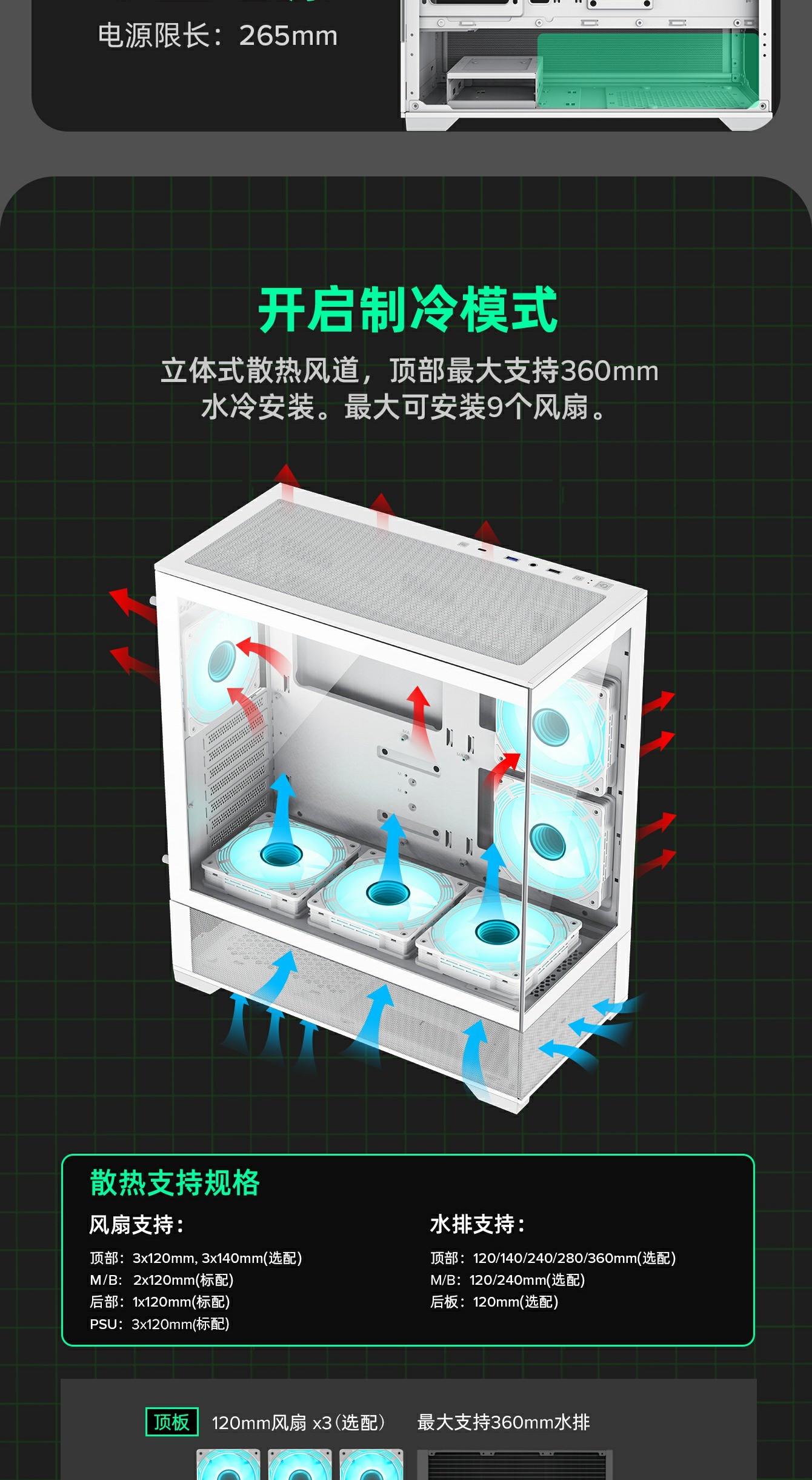

Cooling Fan Support | Front | *0 |
Top | 3x120mm ,2x140mm (Fan optional) | |
Rear | 1x120mm (FN12A-C8I) (Fan optional) | |
M/B Cover | 2x120mm (FN12A-C8I) (Fan optional) | |
PSU Cover | 3x120mm (Reverse fan blade)(FN12A-C8I-R) (Fan optional) | |
Water Cooling Support (Radiator Size) | Front | *0 |
Top | 120mm, 140mm,240mm,280mm,360mm | |
Rear | 120mm | |
M/B Cover | 120mm, 240mm | |

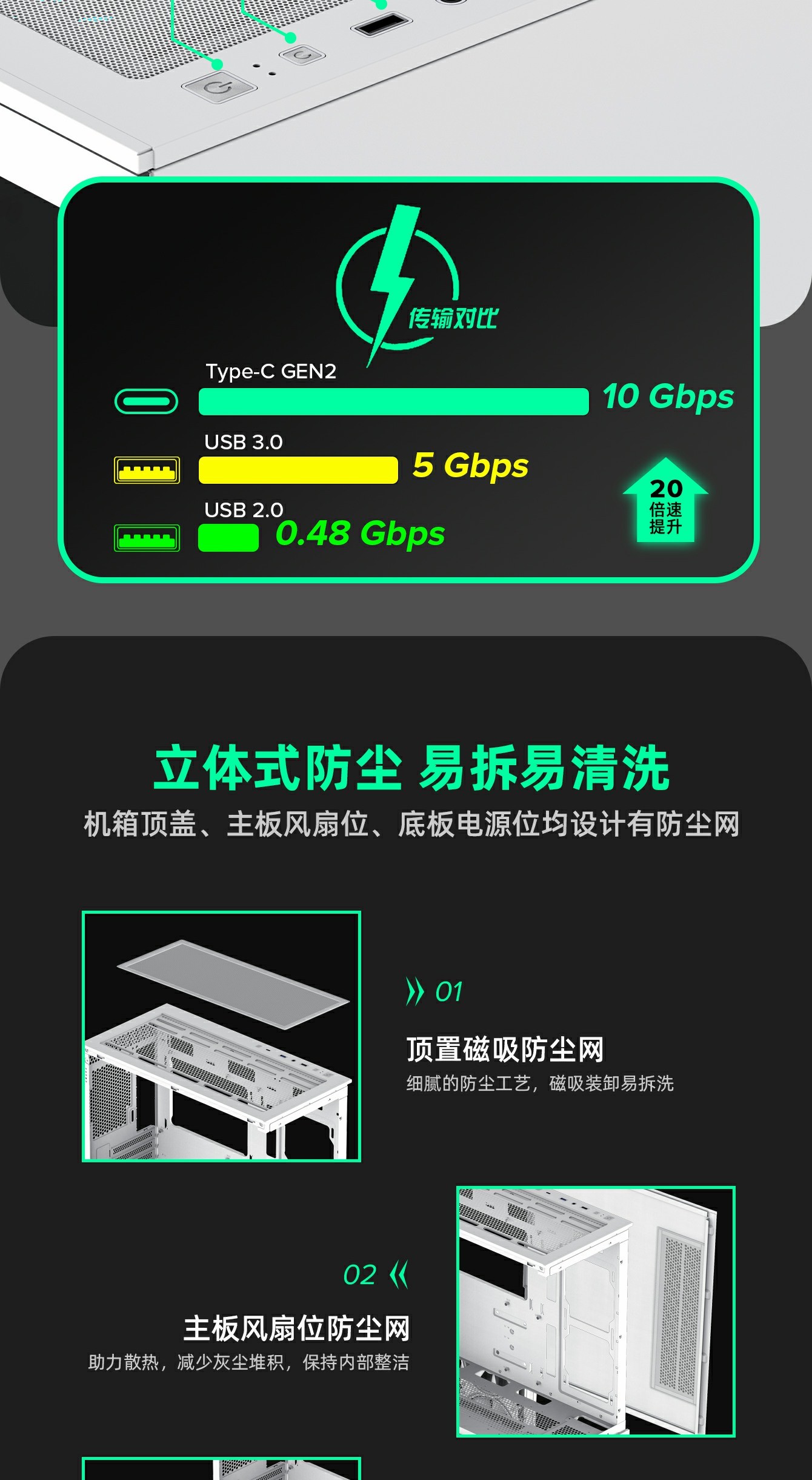

Dust Cover | Bottom, right side panel and top cover with dust filter | |

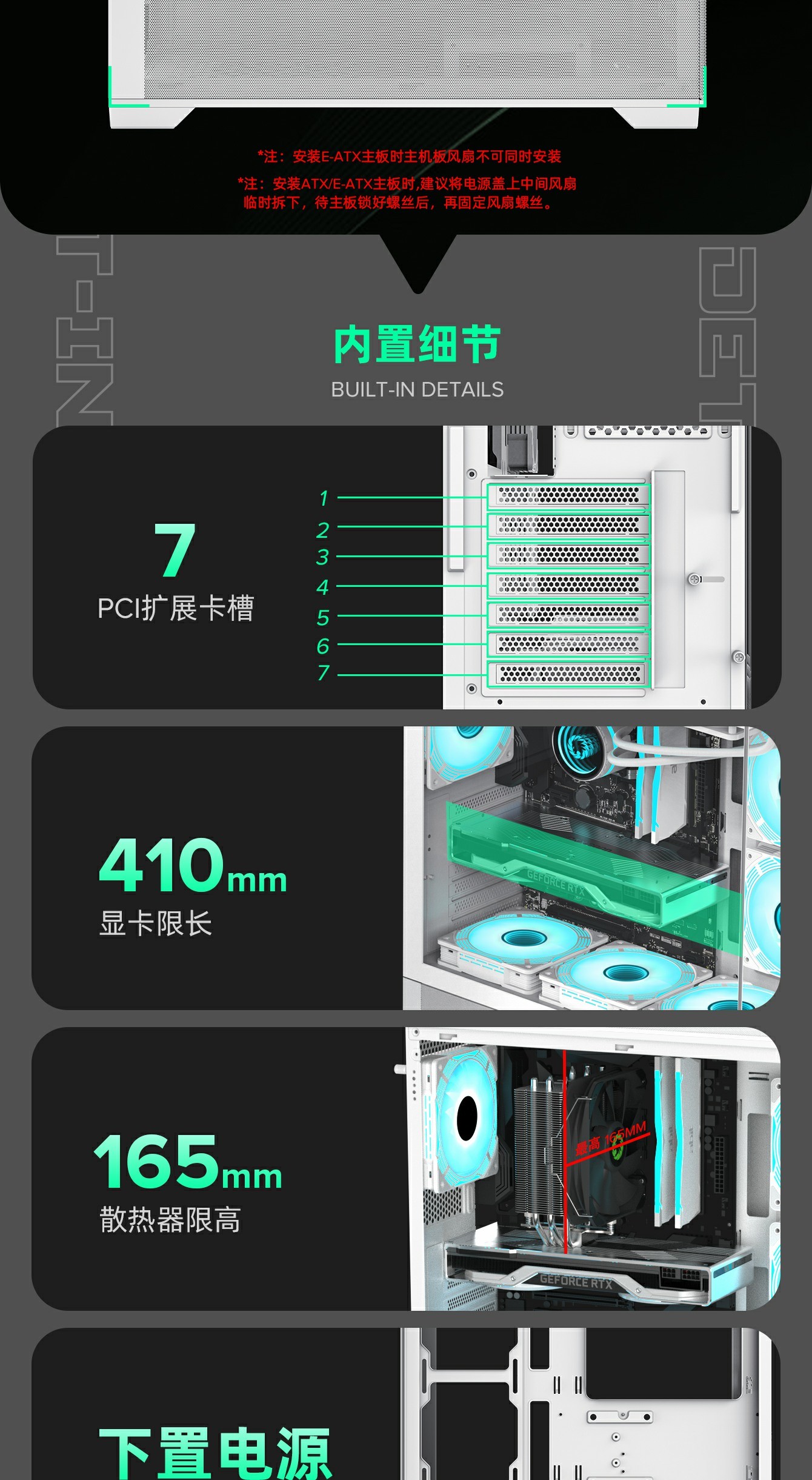

Slots | *7 | |
Carton & Logo | GAMEMAX | |

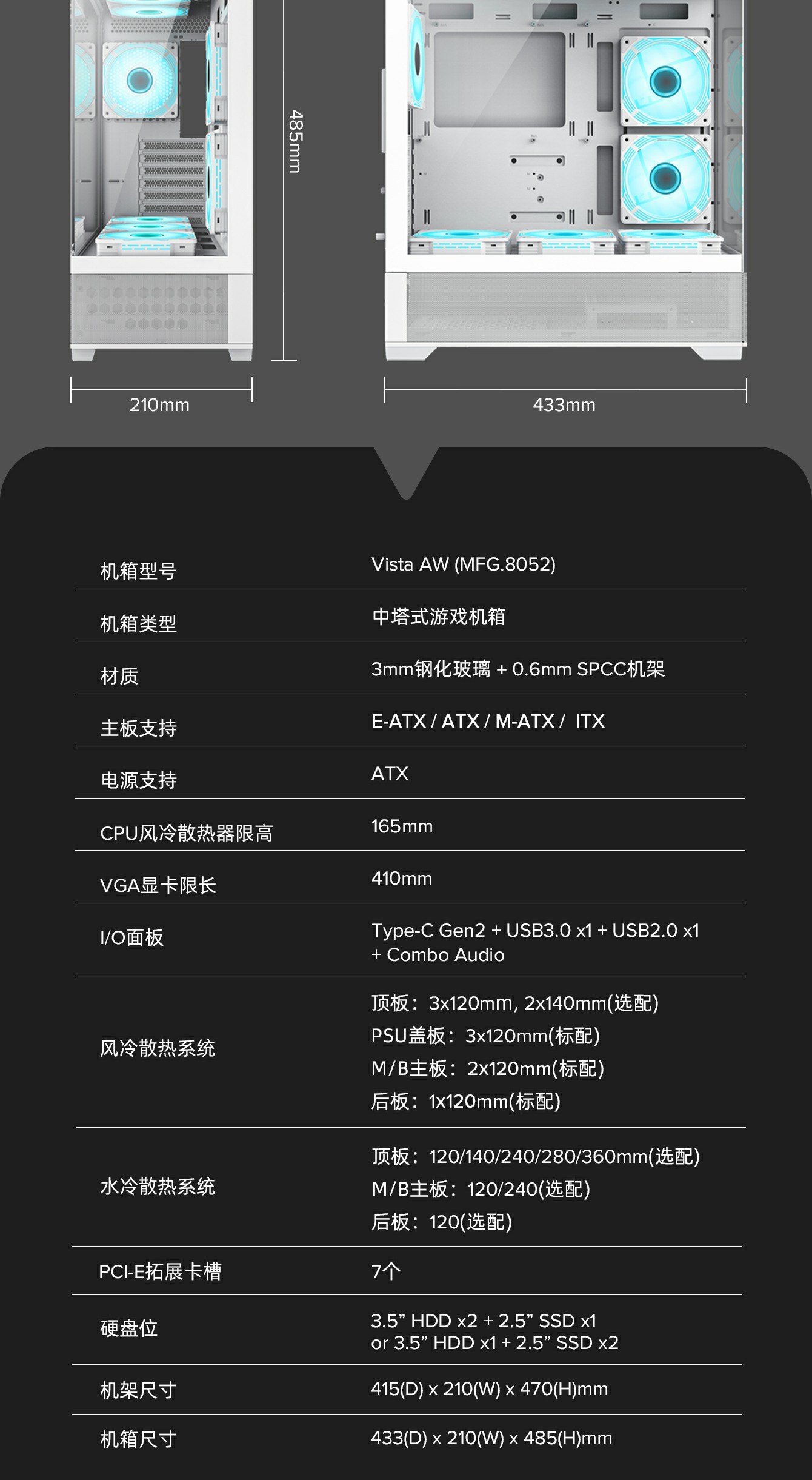

Dimensions | Chassis | (L)415*(W)210*(H)470mm |
Full Case (inc Fascia) | (L)433*(W)210*(H)485MM | |
Carton | (L)552*(W)282*(H)496MM | |
VGA Card Length | Up to 410mm | |
CPU Cooler Height | 165mm | |
SPS Length | Up to 265mm | |
Cable Management Depth | 25mm |
