| ITX01 (ABYSS) | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | Mini ITX | |
| Chassis | SPCC :0.8mm | |
| PSU Form Factor | Bottom/SFX | |

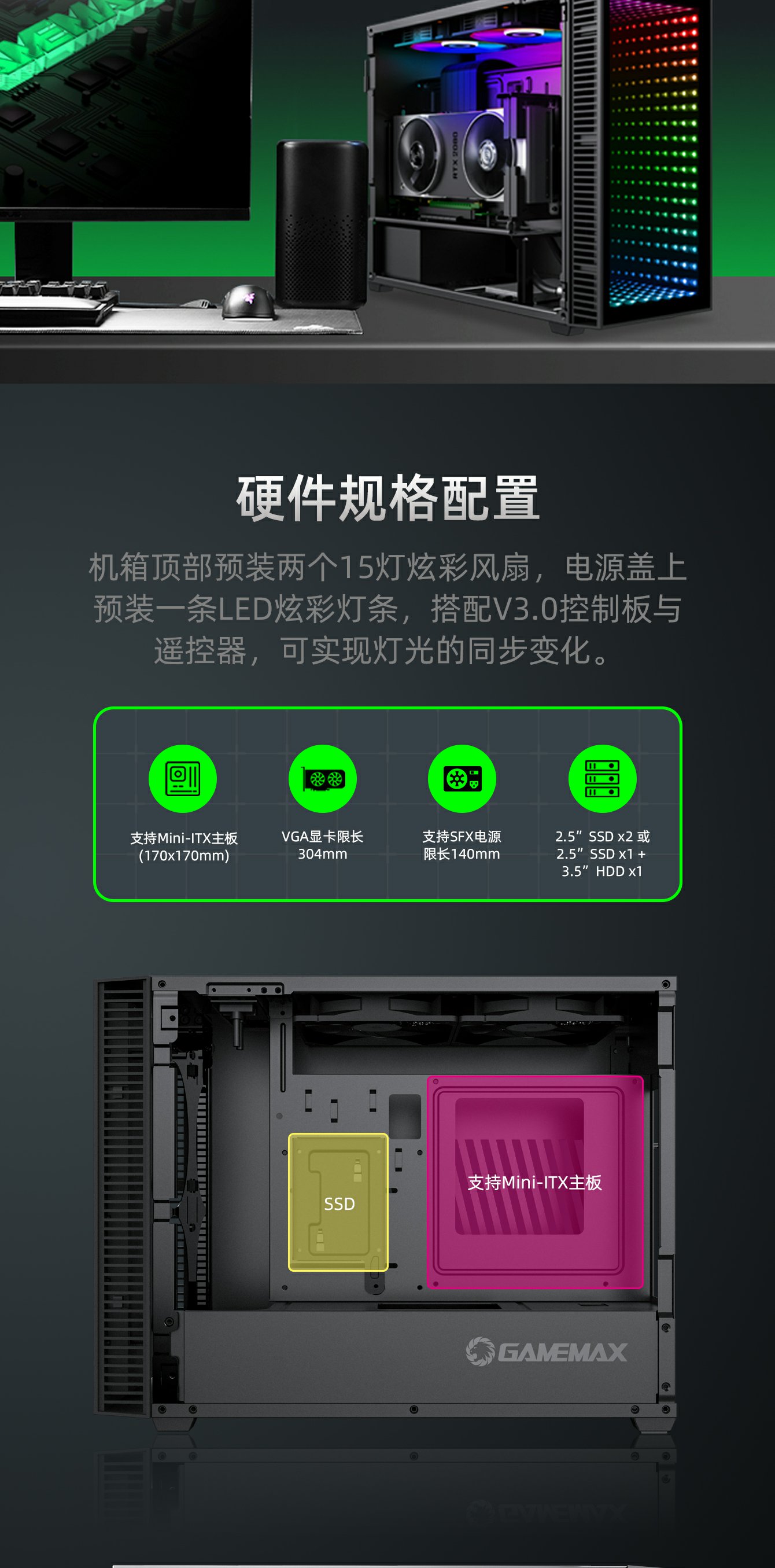

| M/B Form Factor | Mini ITX | |

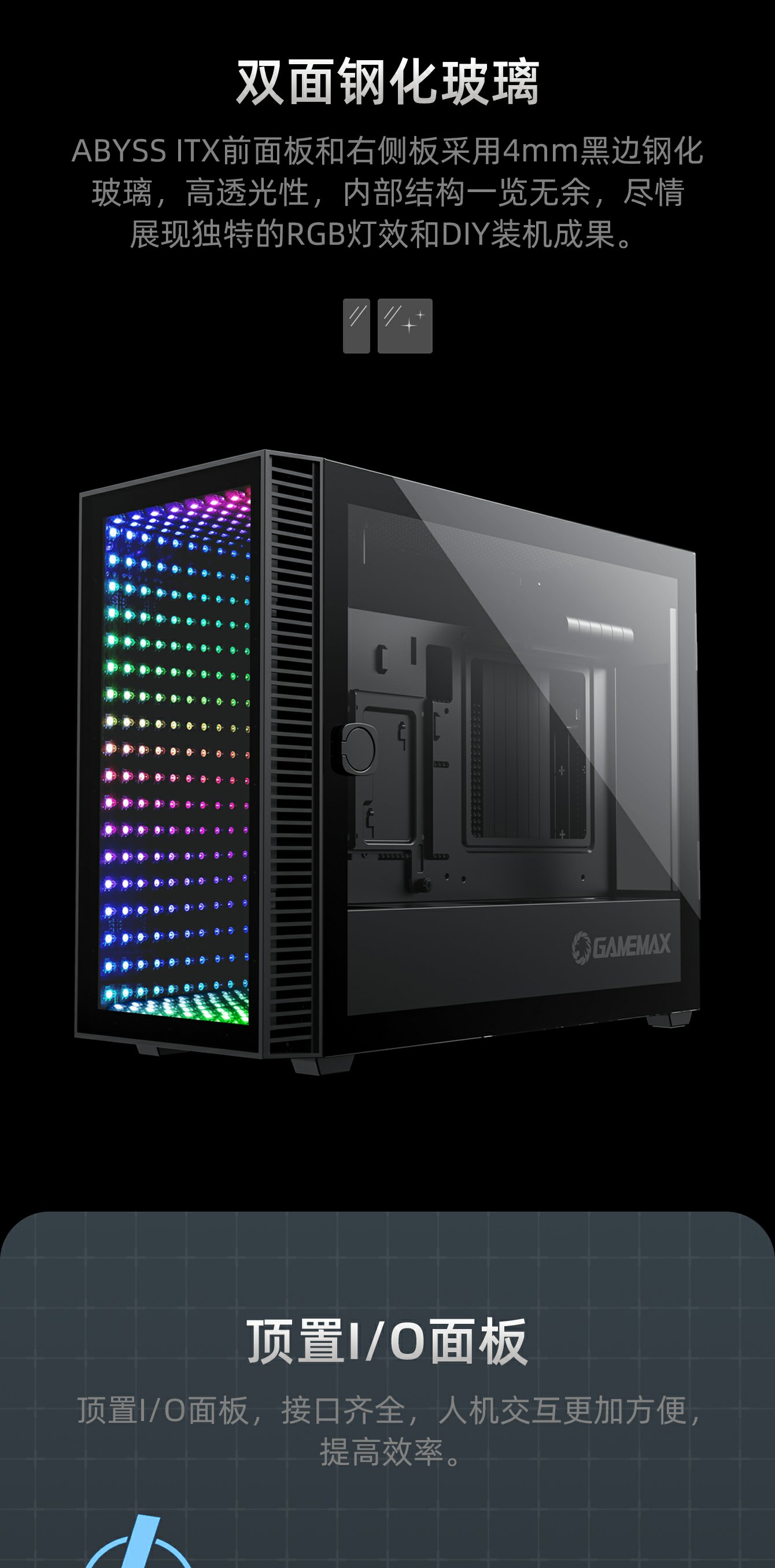

| Front Panel | ABS，Tempered Glass | |
| Top Panel | metal cover | |
| Branding | Box | GameMax standard |
| Unit | 1 | |
| Side Panel | Left | PMMA (acrylic) |
| Right | Tempered Glass | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *0 |
| 2.5" (SSD) | *2 | |

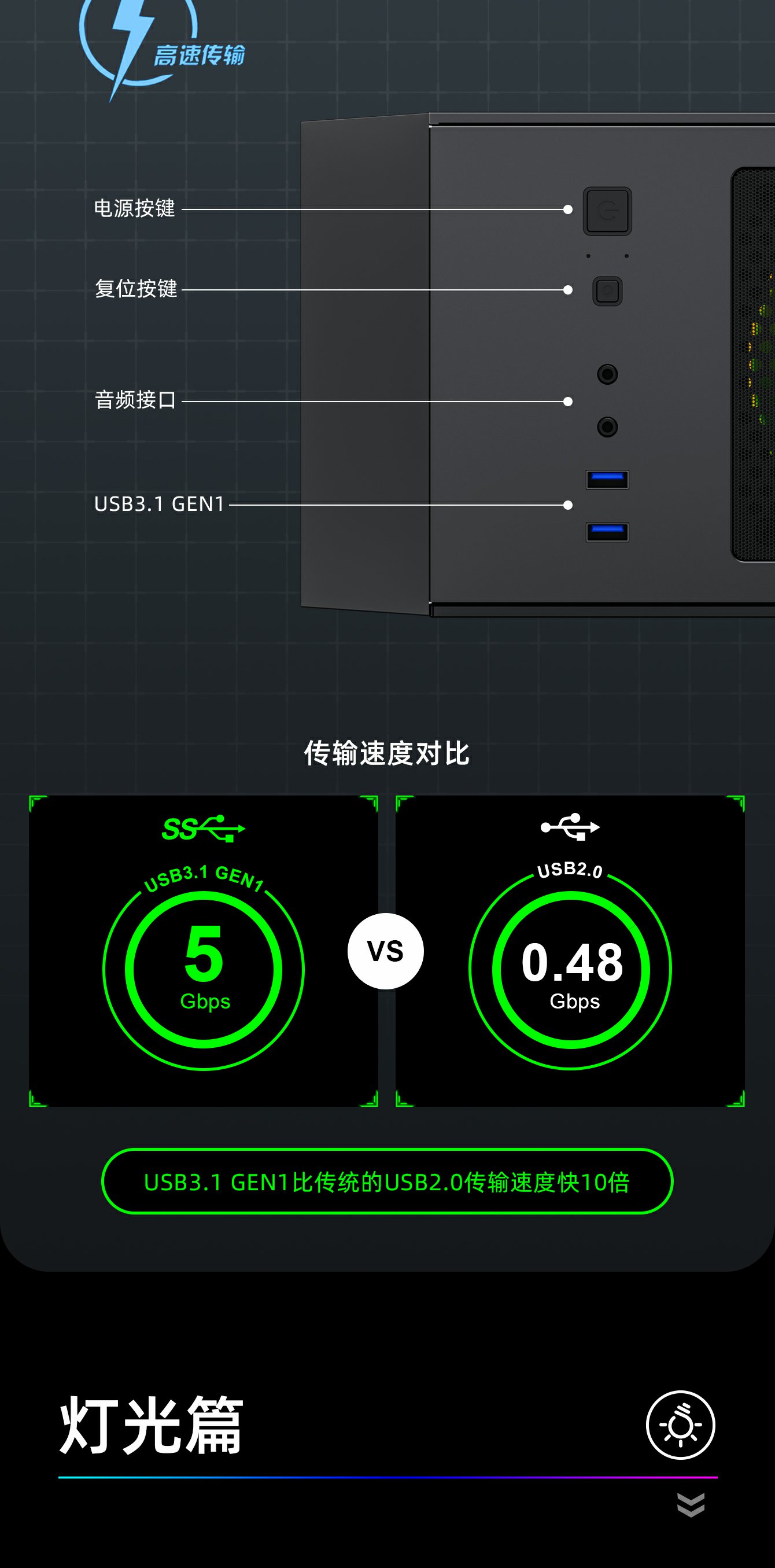

| I/O | Buttons | *2 (P/R) |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) USB3.1 GEN1 | *2 | |
| HD Audio Support | *1 | |
| Fan Controller | *0 | |

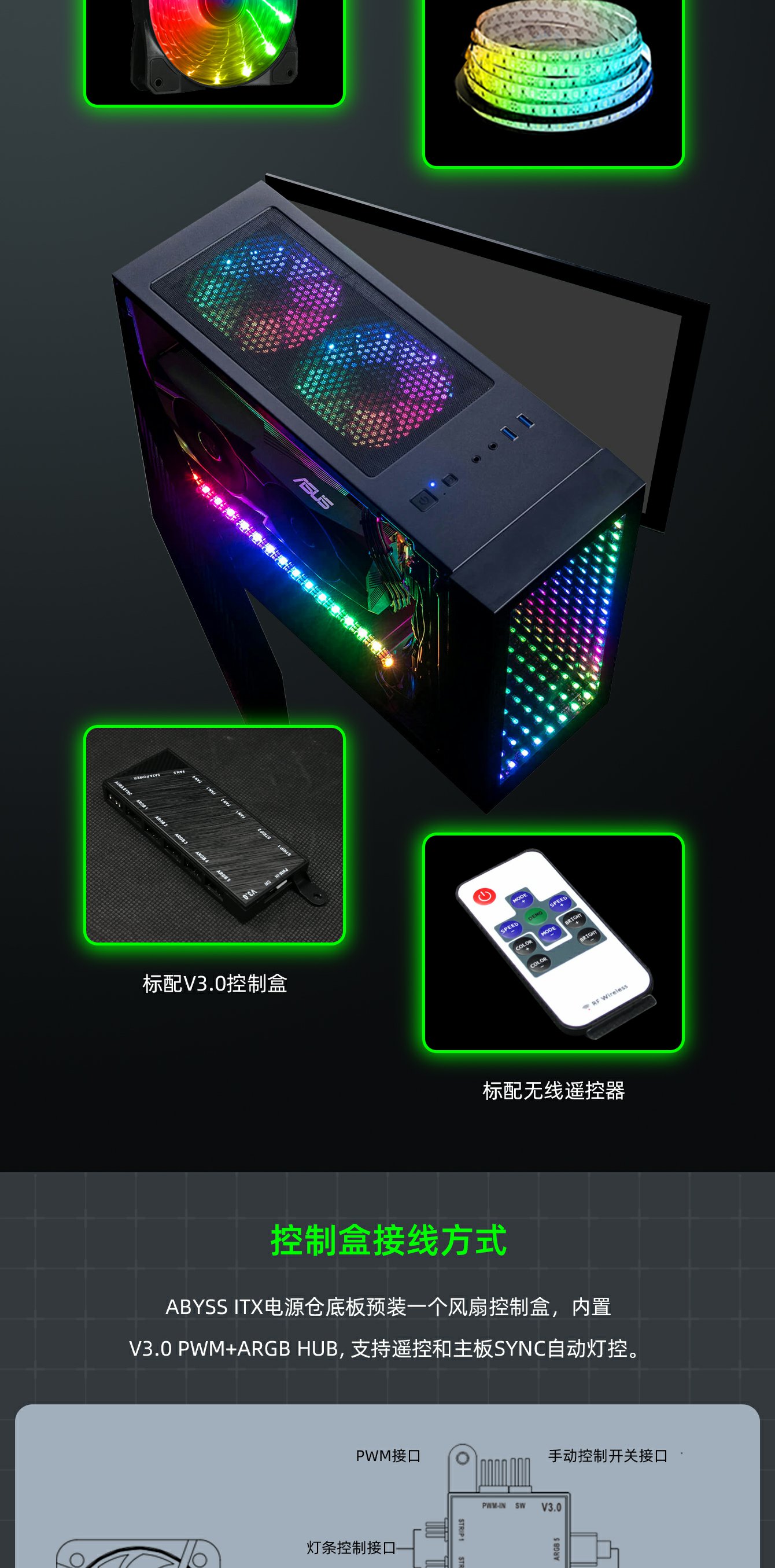

| RGB Controller | *1 | |
| Controller max. fans | *5 | |
| RGB Controller max. LED strips | *2 | |

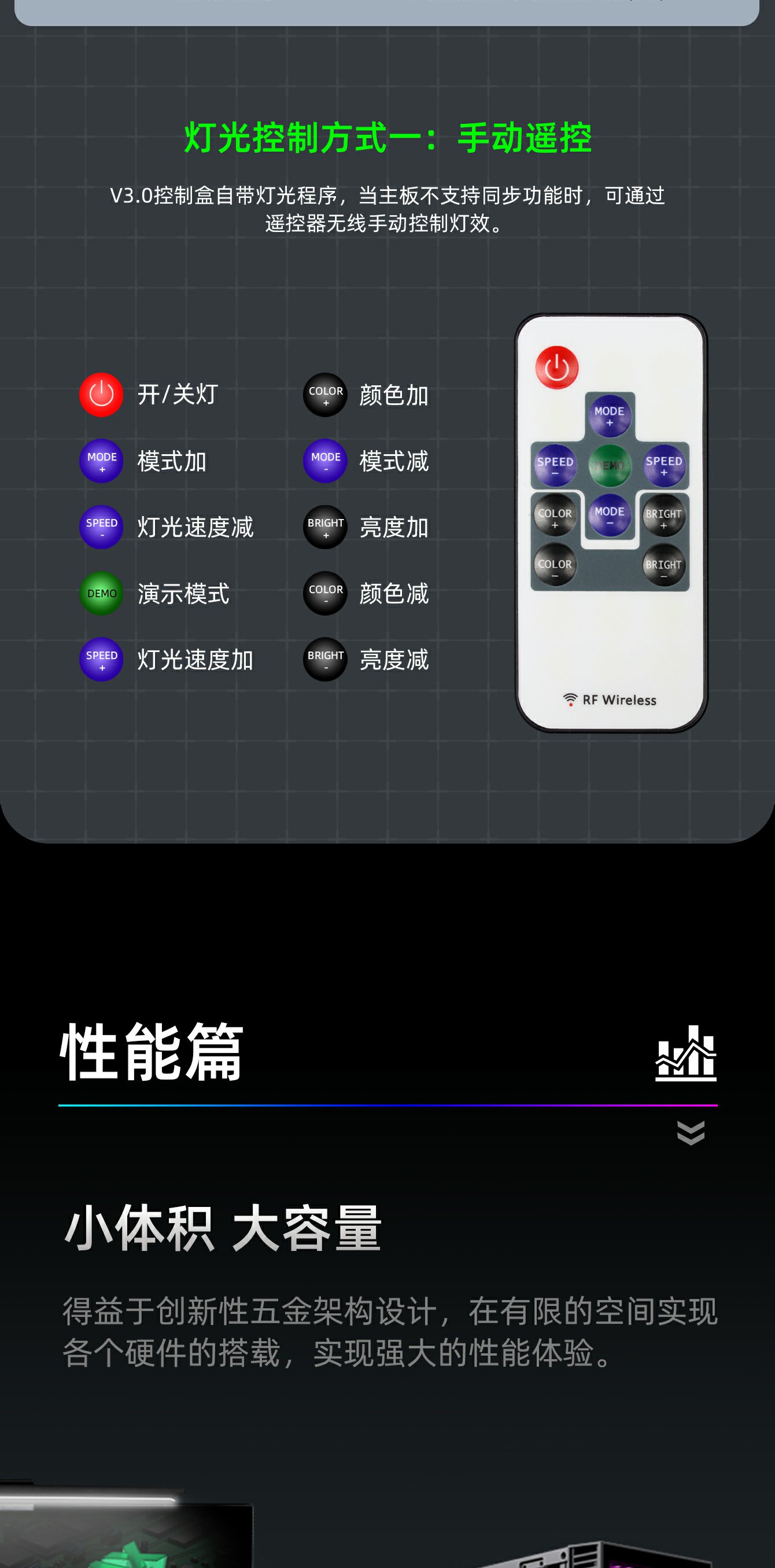

| Remote (IR or RF) | *1xRF | |

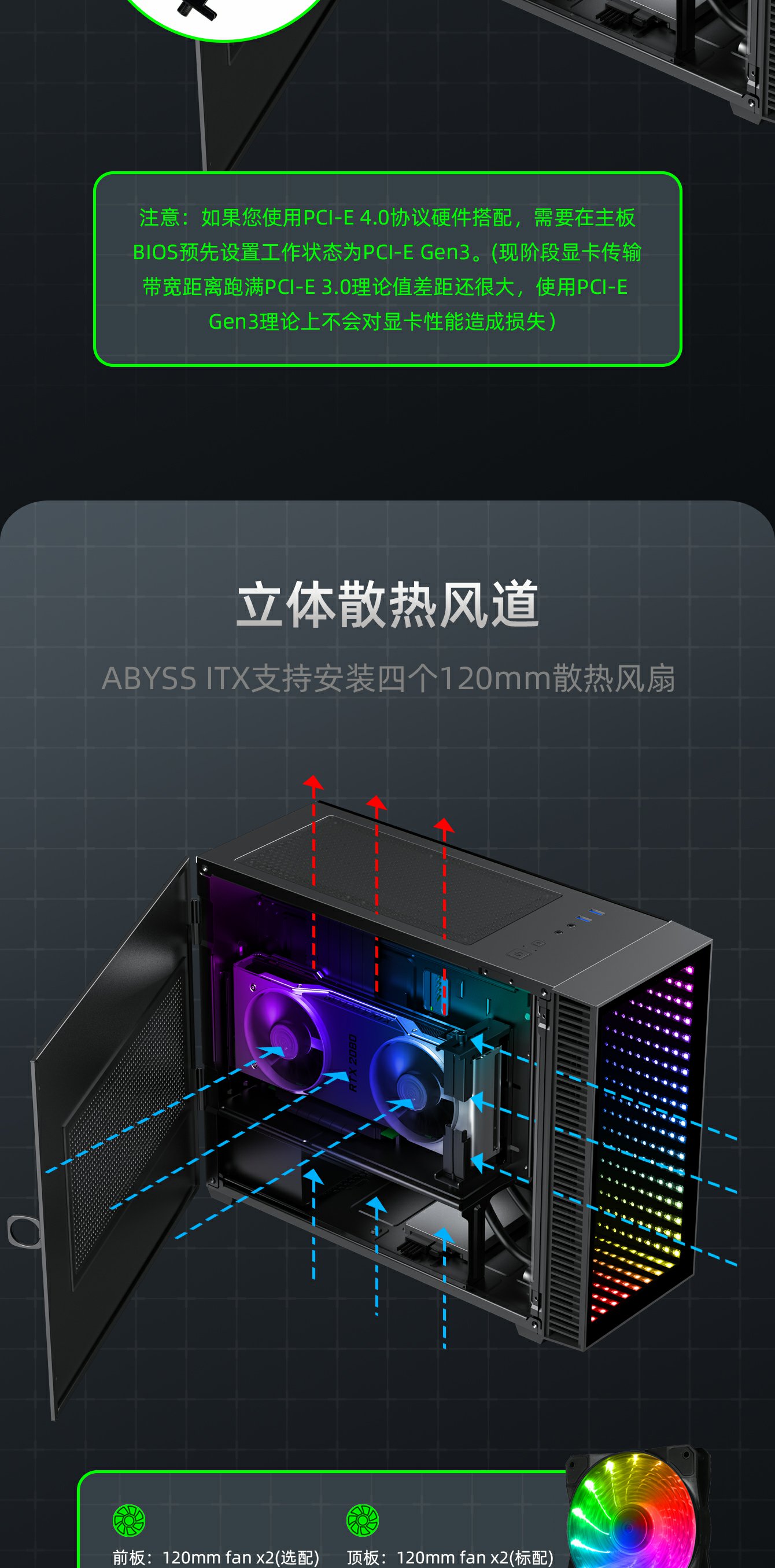

| Cooling Fan Support | Front | 2x120mm (Optional) |
| Top | 2x120mm (ARGB GMX-FN12-RBB) | |
| Rear | 0 | |
| Left Side | 0 | |
| PSU Cover | 0 | |
| Water Cooling Support | Front | 120mm*1 or 240mm*1 |
| Top | 0 | |
| Rear | 0 | |
| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *2 | |
| Carton & Logo | GAMEMAX | |

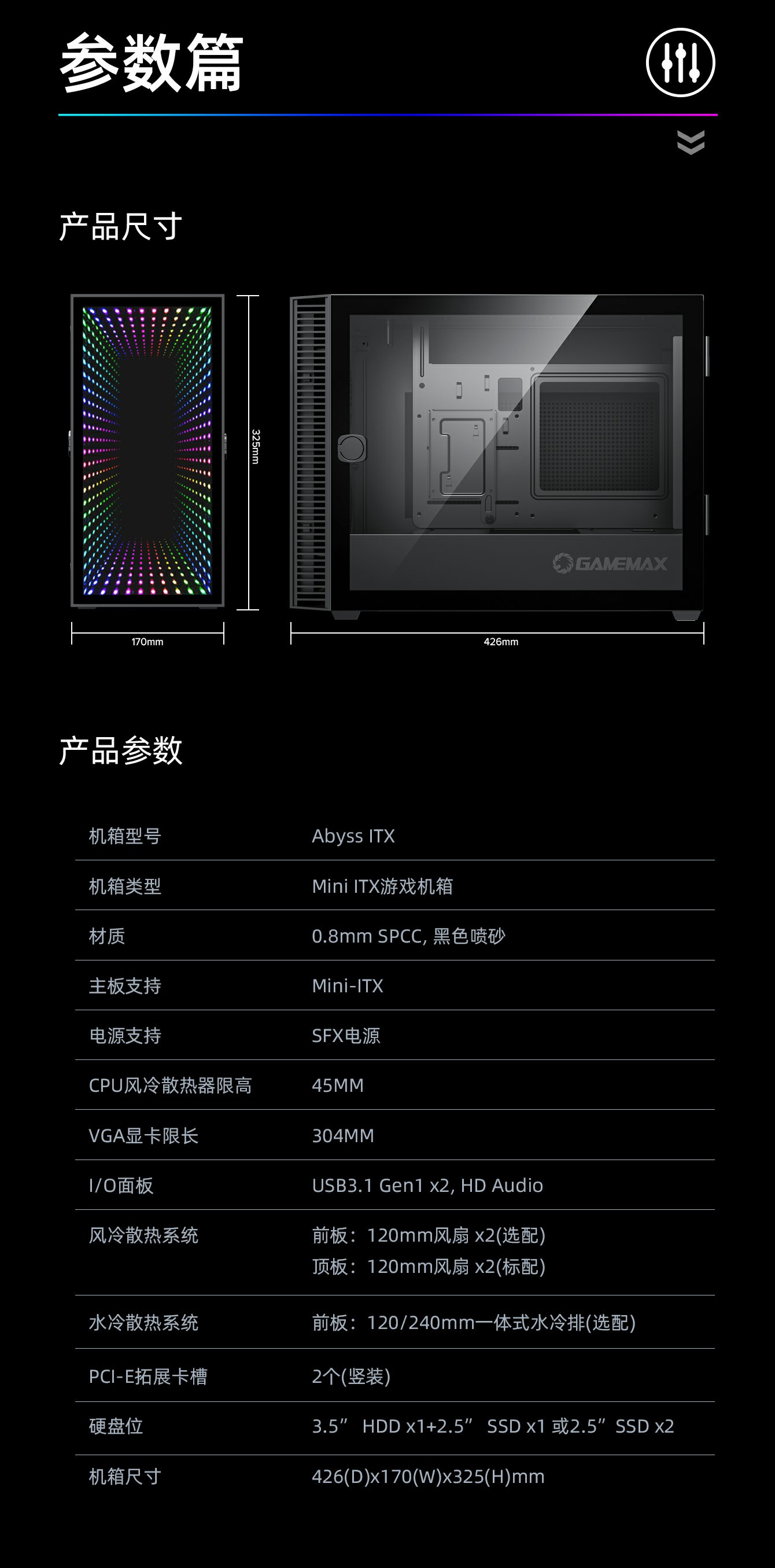

| Dimensions | Chassis | (L)375*(W)150*(H)315mm |
| Full Case (inc Fascia) | (L)426*(W)170*(H)325mm | |
| Carton | (L)362*(W)245*（H)510mm | |
| Net Weight (Kg) | 5.1kgs | |
| Gross Weight (Kg) | 6.1kgs | |

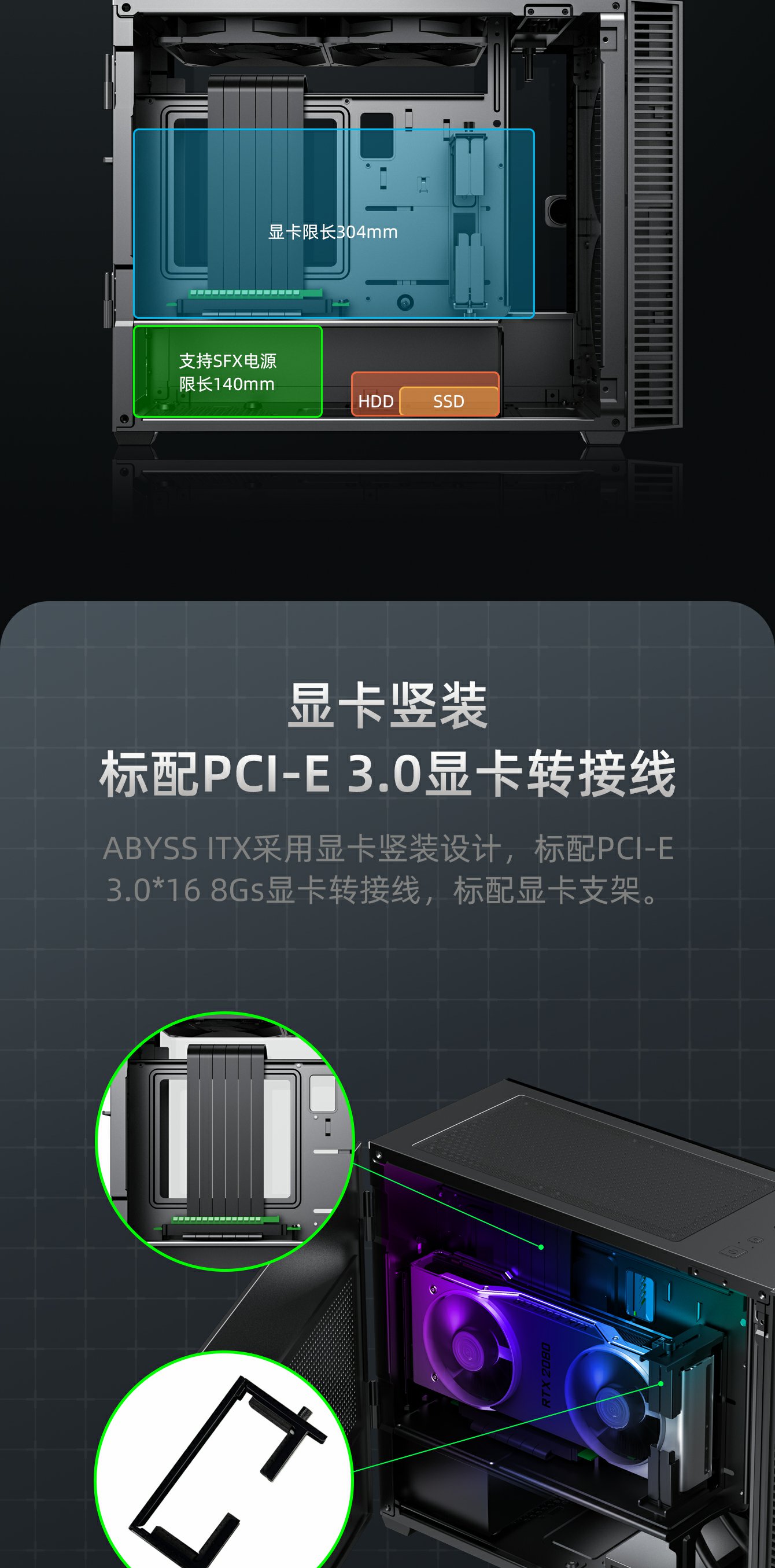

| VGA Card Length | 320mm | |
| CPU Cooler Height | 50mm | |
| Cable Management Depth | 80mm | |
