R200N
Open-Bay,2U,Middle,Depth,Server,Chassis

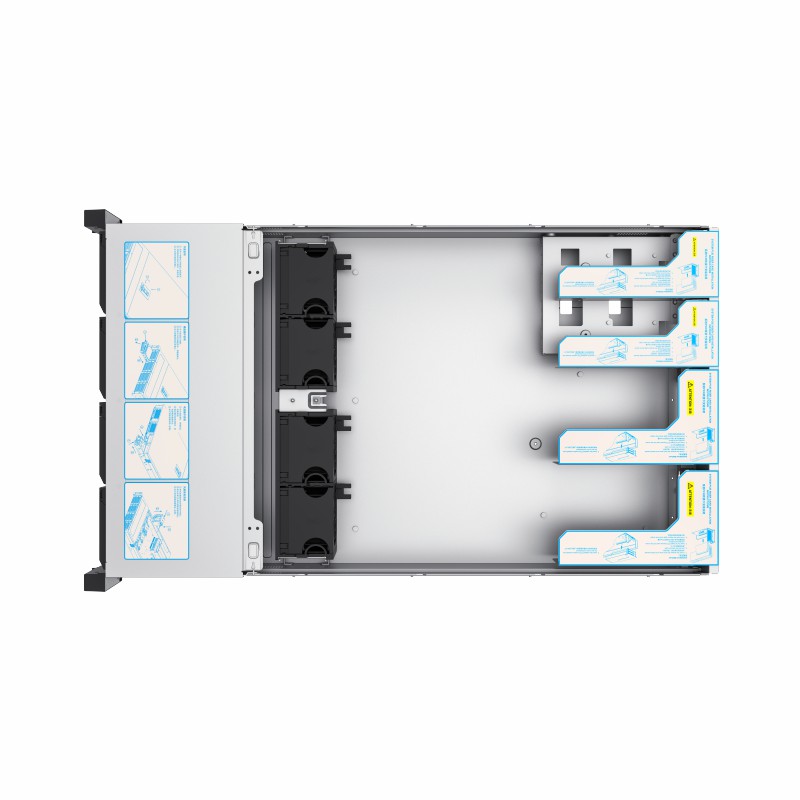

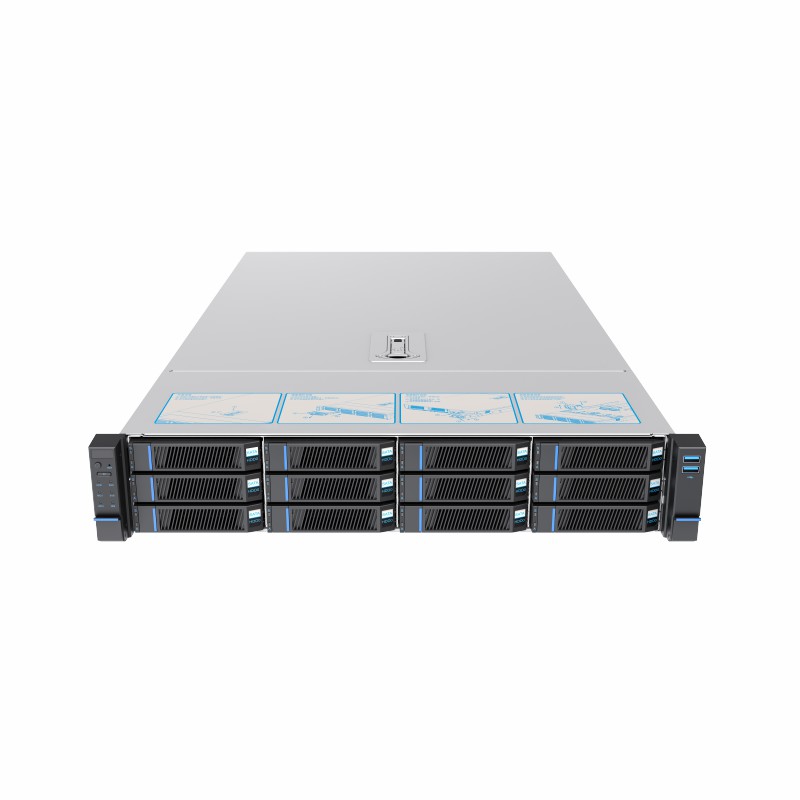

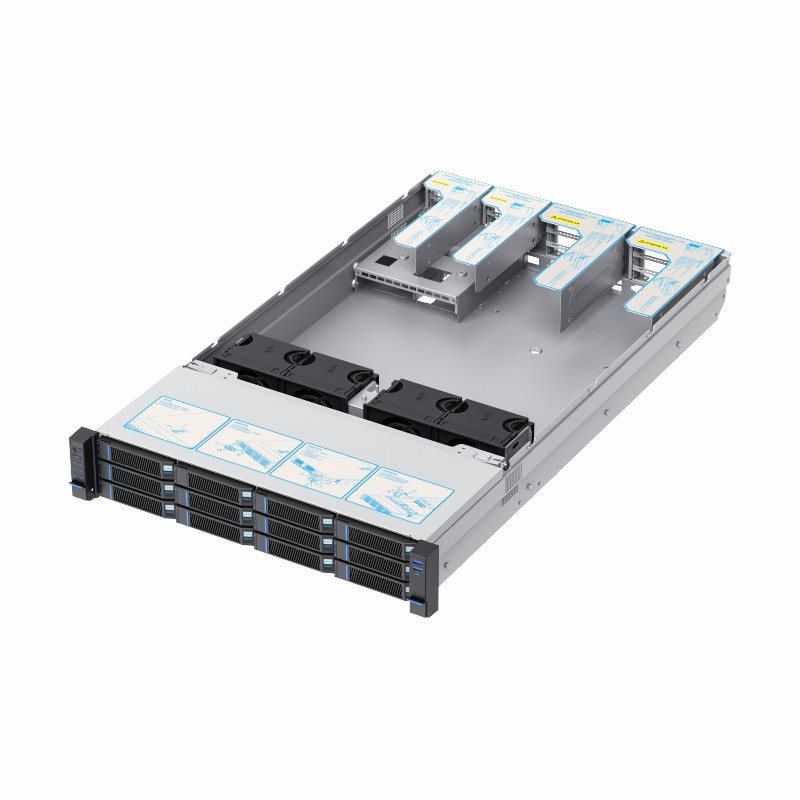

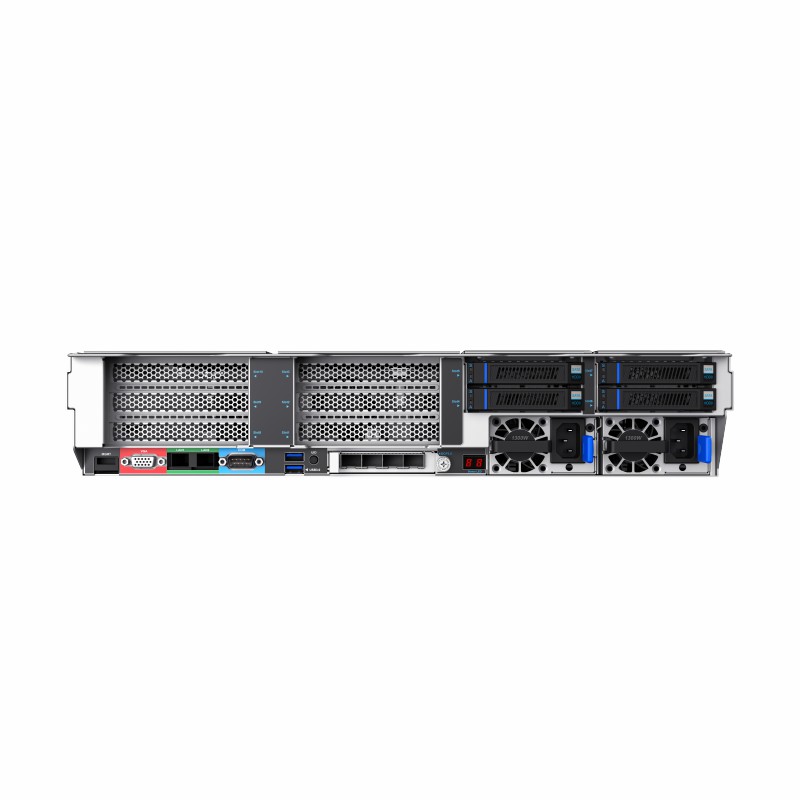

Open-Bay 2U Middle Depth Server Chassis
．2U rackmount supports ATX or CEB motherboards
．Supporting external 5.25 x 2 and internal 3.5 HDD x 6
．Compatible with single PSU 500W or CRPS 550W/800/1300W
．Tool-less top cover for quick maintenance
产品特征 产品规格

Specification requirements are customized, the following parameters are for reference only:


上一条 : 8S2080 下一条 : 没有了！
返回列表
Specification （Customized）
Industry StandardSH-R200
M/B Form FactorATX (12" x 9.6"), CEB (12" x 10.5")
Drive Bay? External: 5.25"x 2
? Internal: 3.5" x 6
Power SupplySupports:
? Form factor: single or CRPS
? Watt: Single 500W, CRPS 550W or 800W
IndicatorPower status, HDD, LAN activity LEDs
Front Control PanelPower switch, system reset, USB 2.0 x 2
Chassis SecurityIntrusion switch (optional)
Cooling FanSupports 80 x 25mm PWM middle fan x 3
Expansion SlotLow profile PCI slot x 7 or full-height PCI slot x 3 (via riser card)
Material? Material: SGCC
? Thickness: 1.2mm
Rail KitSupports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)607 x 432.4 x 88mm
(23.90" x 17.02" x 3.46")
Package Dimensions (DxWxH)785 x 563 x 204mm
Weight (Chassis Only)? Net weight: 8.36kg
? Gross weight: 11.8kg
Cubic Feet3.18
Container InformationSingle packing with pallets:
? 20': 252pcs
? 40': 504pcs
? 40' HQ: 560pcs
