8S2080
2U,Standard,Server,Chassis

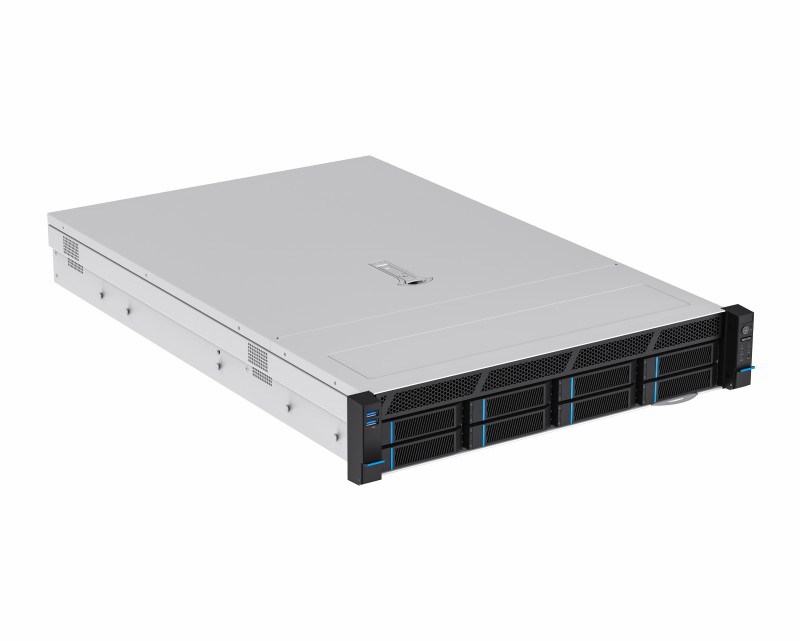

2U Standard Server Chassis
．2U rackmount supports E-ATX or CEB motherboards

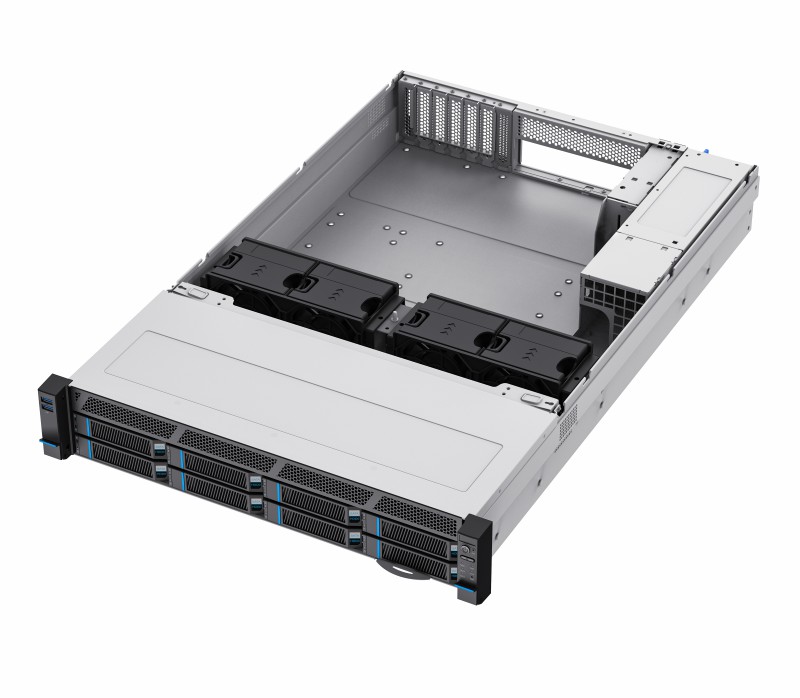

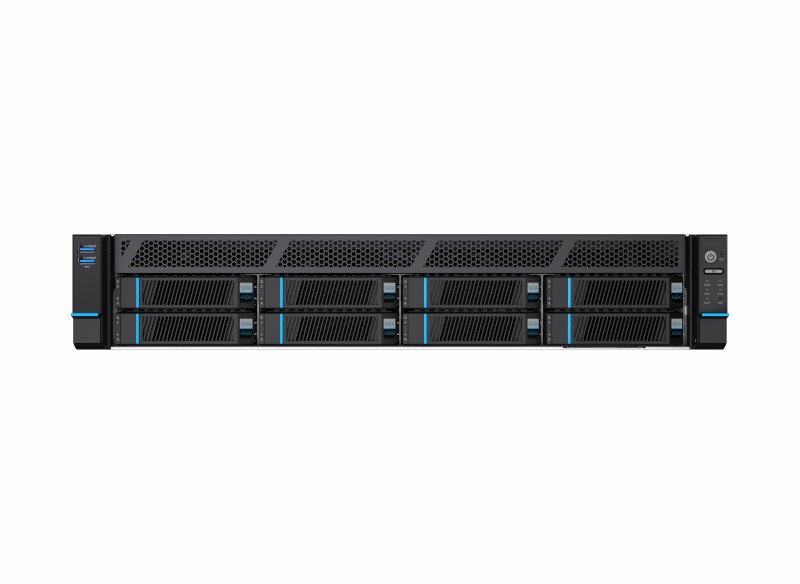

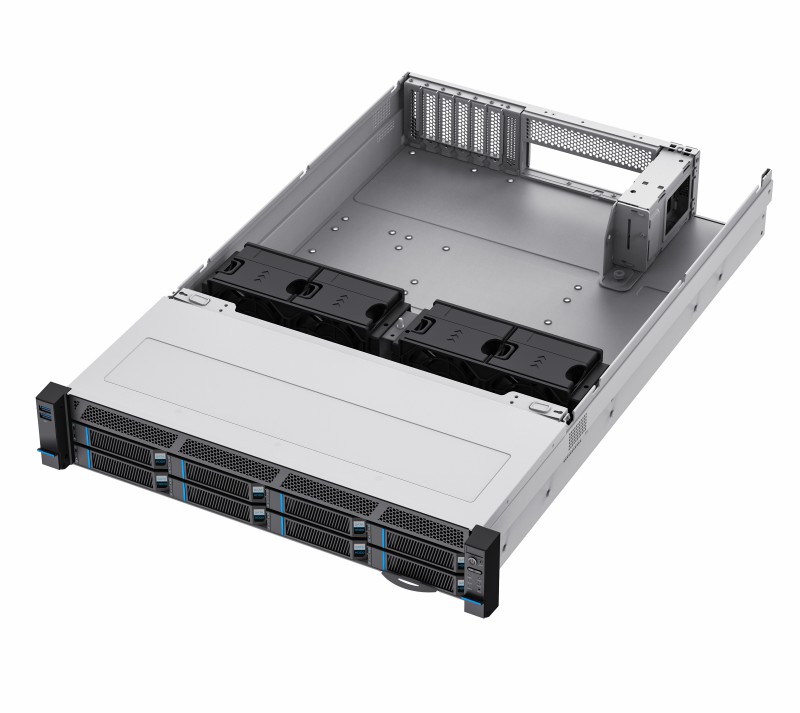

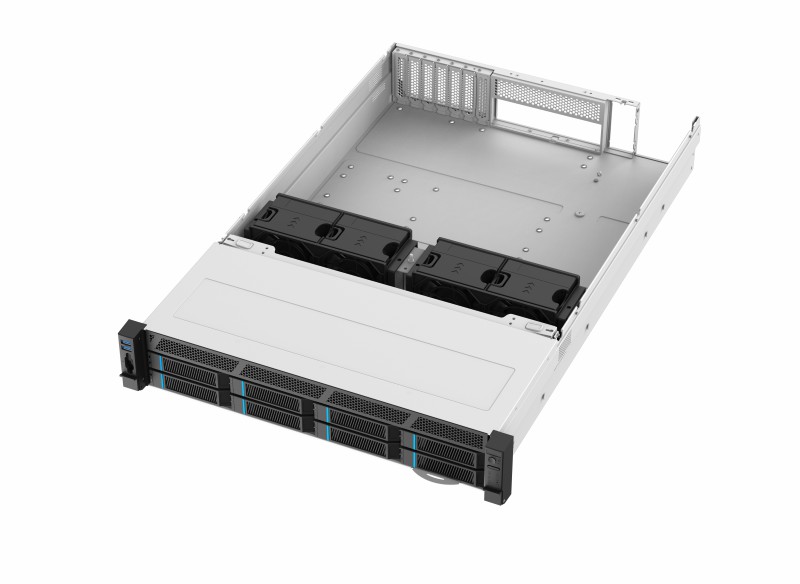

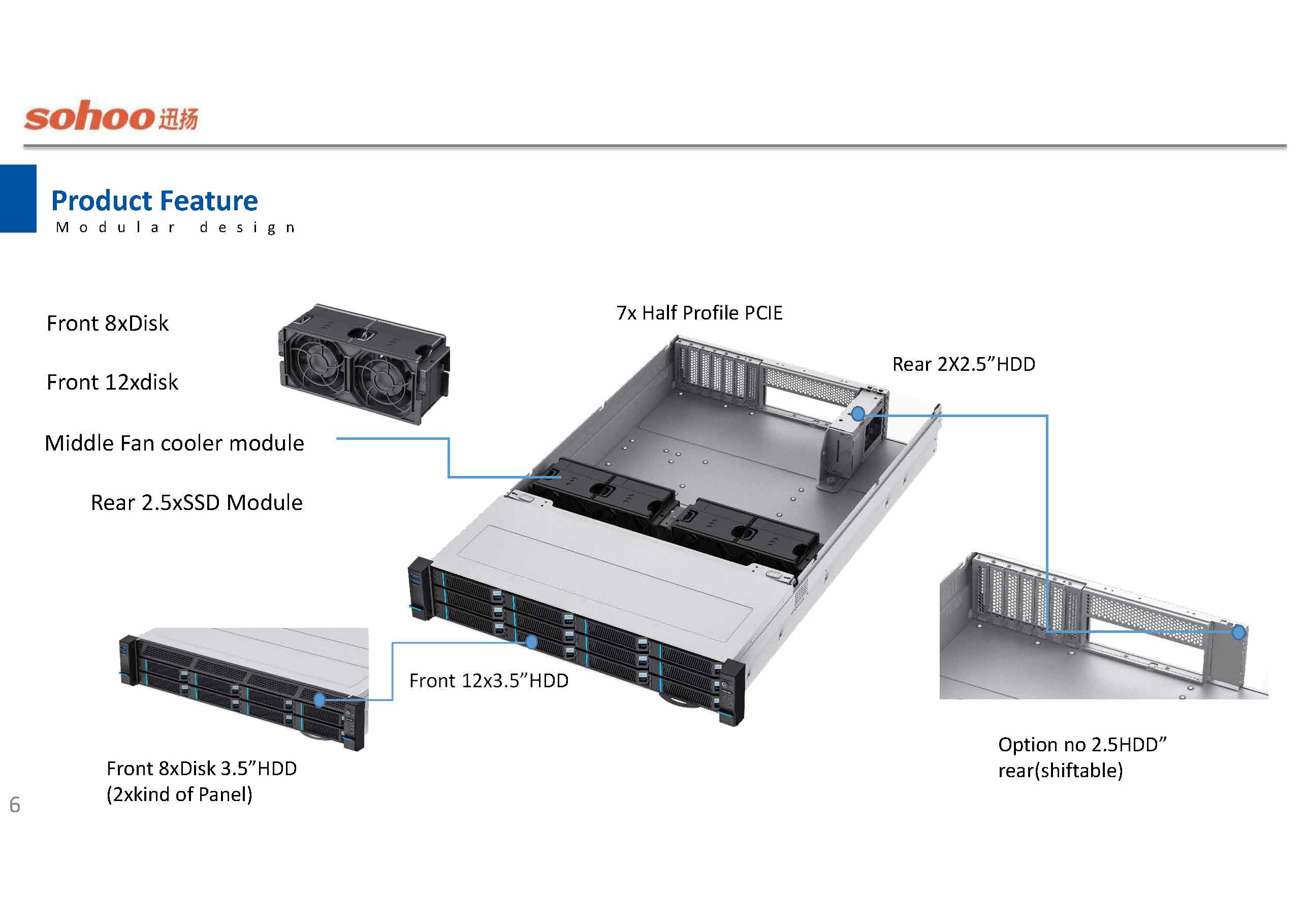

．Front 8xDisk, Middle Fan cooler module, Rear 2.5xSSD Module(option)
．Compatible with single PSU 500W or CRPS 550W/800/1300W
．Tool-less top cover for quick maintenance
产品特征 产品规格
Model8S2080-00001
Product2U-Standard Server
Disk NO#2U 8Disk
PLC-SegmentMP


上一条 : 8S2120 下一条 : 8S2120
返回列表
Item 8S2080-00001Specification
Model#8S2080-00001 2U Server Chassis
Size infoD685.4mm×W447.6mm×H87mm
MaterialsSGCC, RoHS,Thickness 0.8~1.2mm

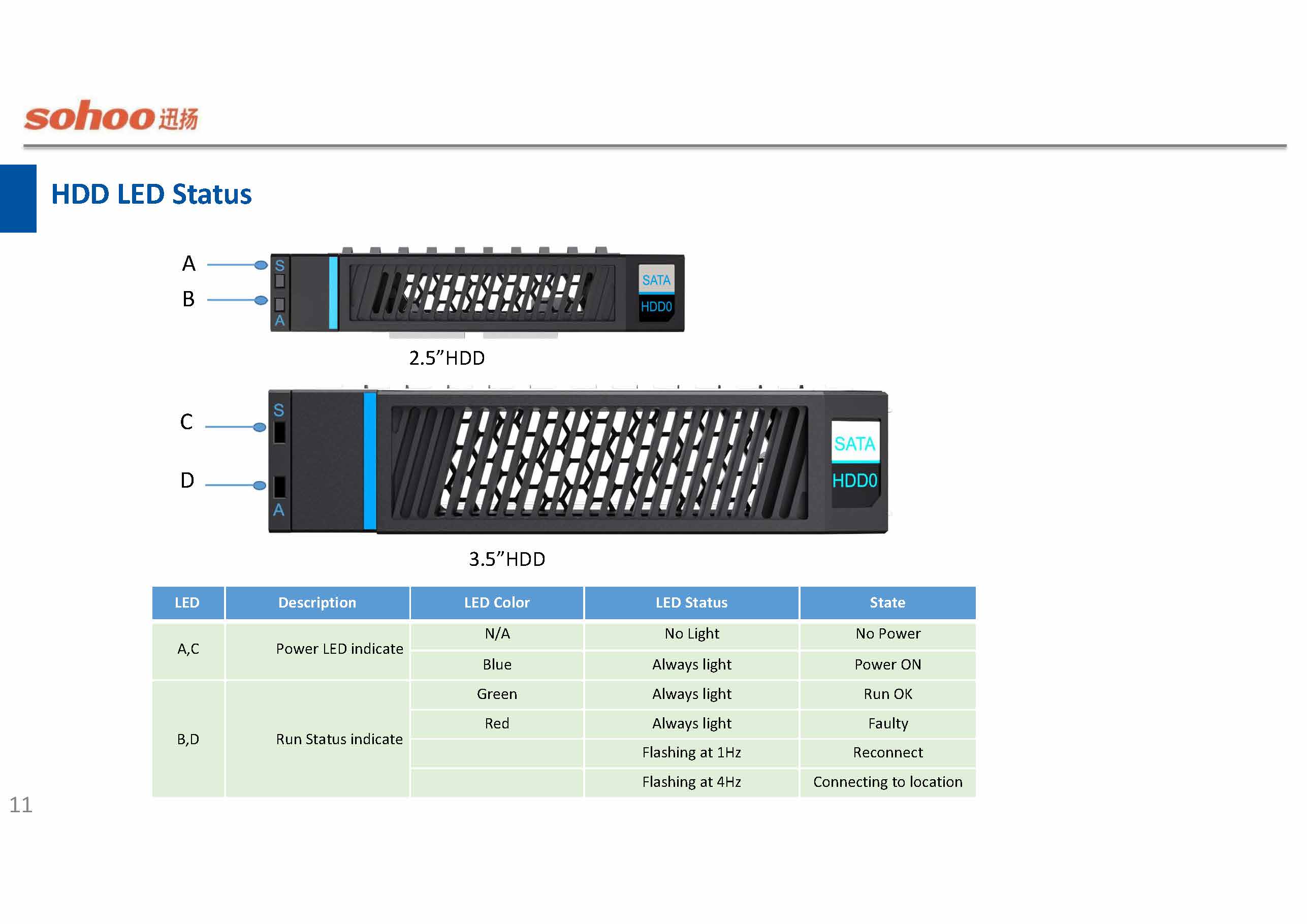

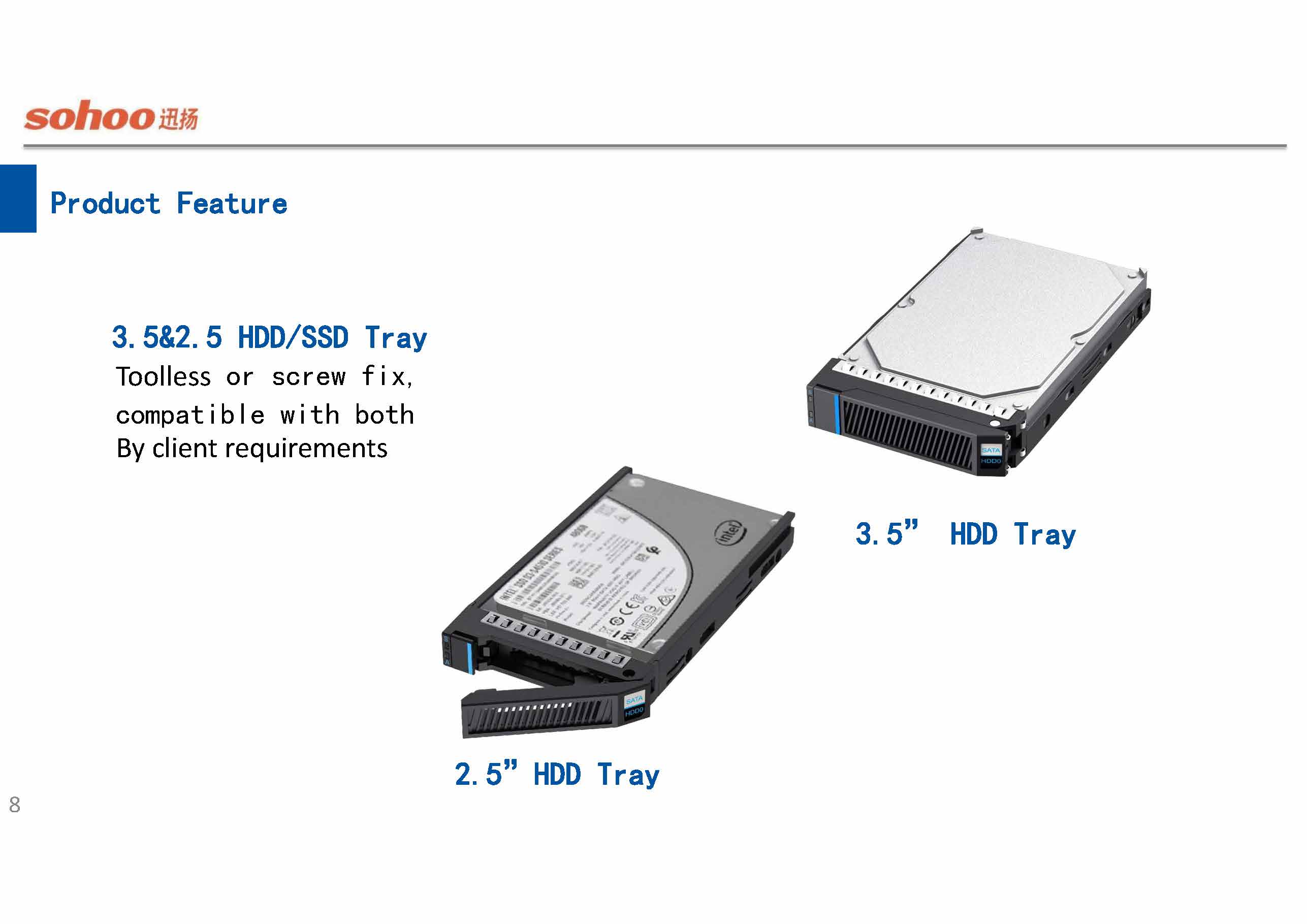

HDD PositionFront 8x3.5“ HDD，
Rear 2x2.5" HDD/SSD(Option），Build-in 3x2.5" HDD/SSD  (Option）
ODD PositionN/A

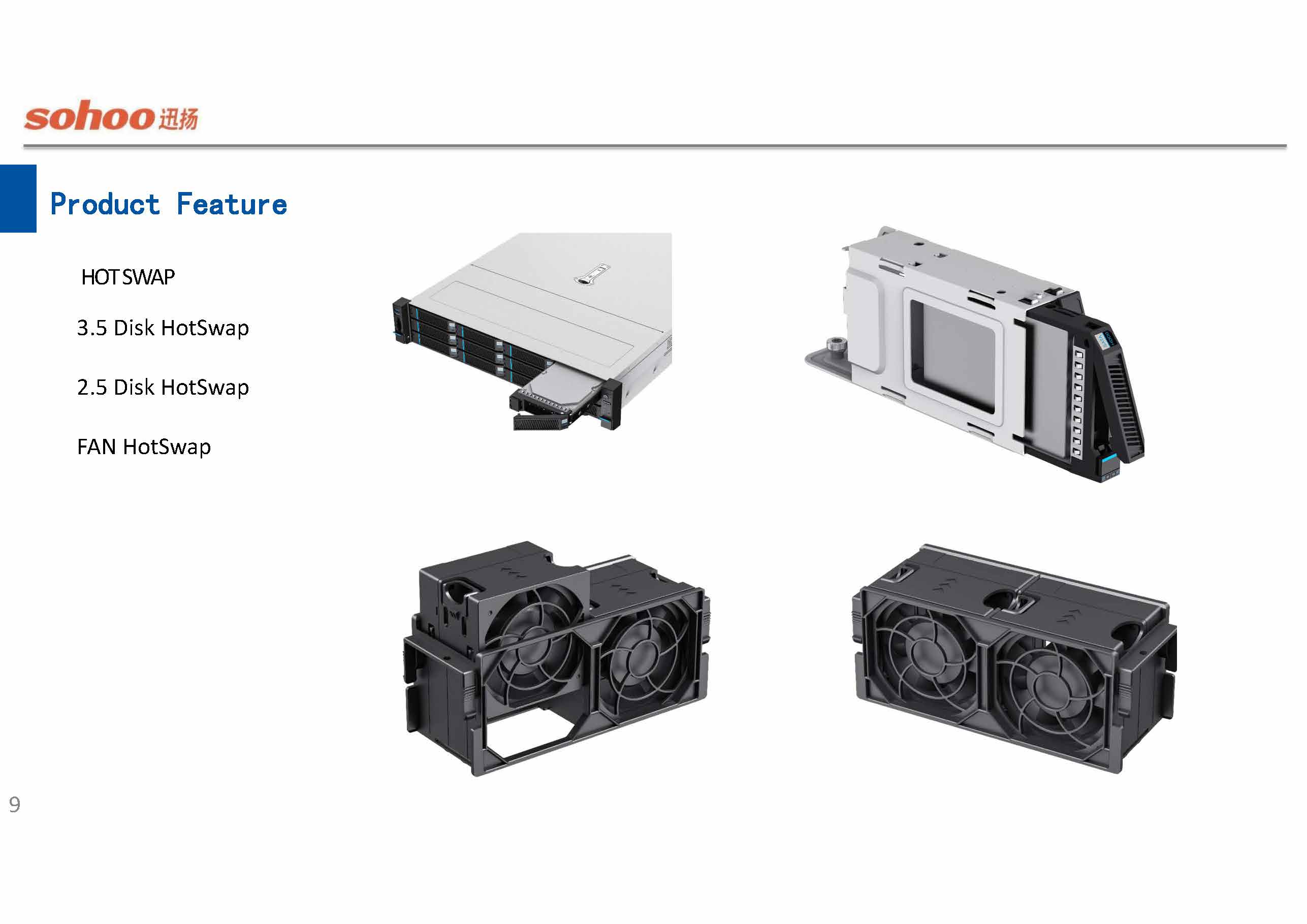

Cooling FansIncl. 3 or 4 8038 fans. hot swap and shock absorption
MB TypeE-ATX（12"x13"）
HDD Backplane12Gbps direct connection to backplane, HDD time sharing and SGPIO function
Expansion Slot7xHalf-Profile PCI-e expansion card slot，3x full profile PCI-e expansion card slot (Option)
Sys Leds/Control1 x Power Status, 2 x LAN Activity, 1xUID,1 x HDD Status, 1 x System status；Power On/Off, System Reset, UID

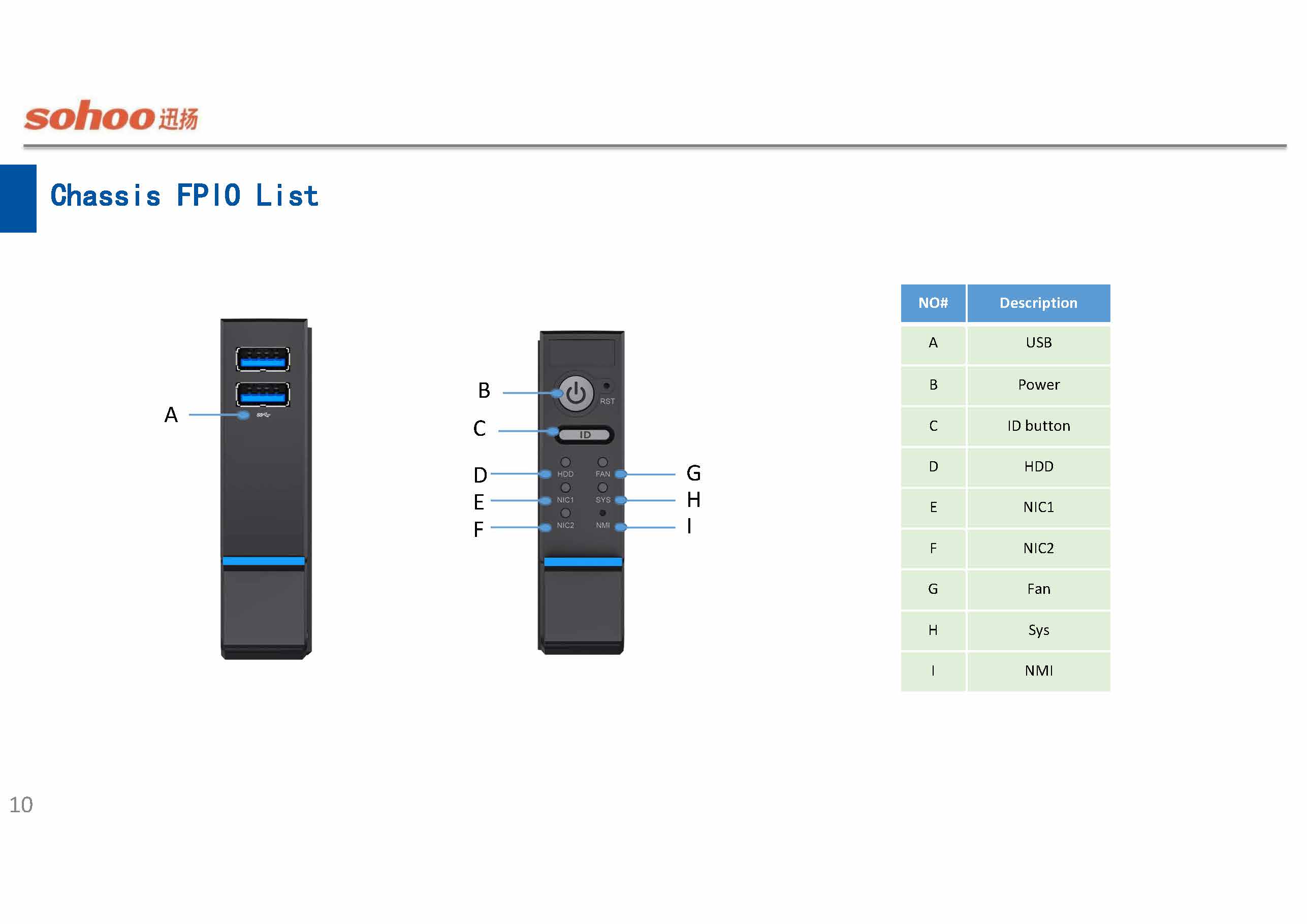

FPIO2个USB3.0，VGA（Option），3个USB3.0 (customized)
Power Supply CRPS redundant power supply / single power
