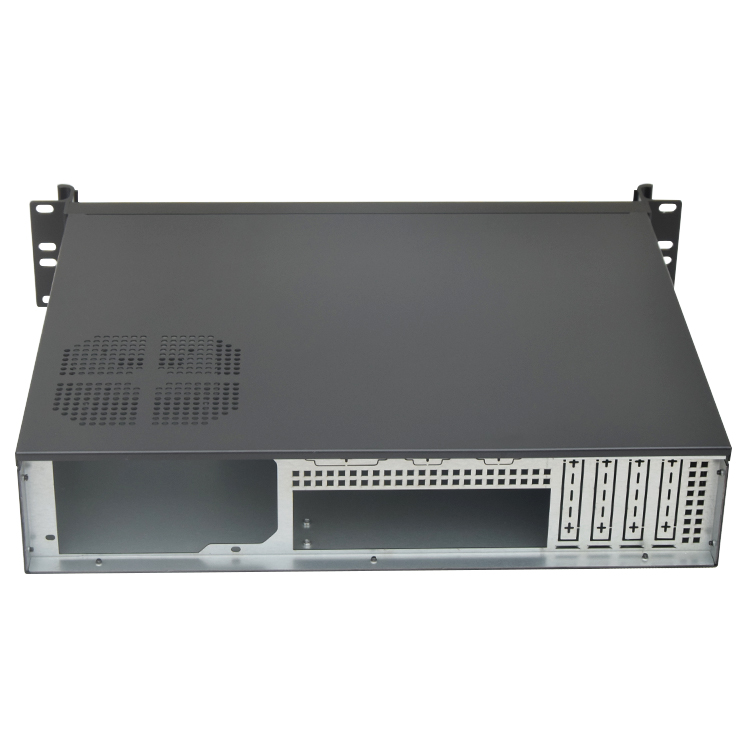

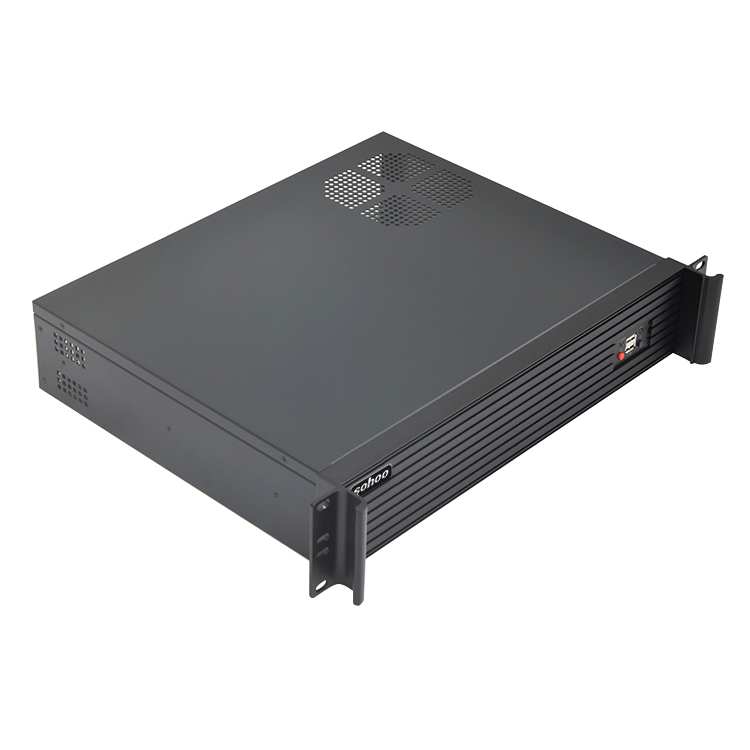

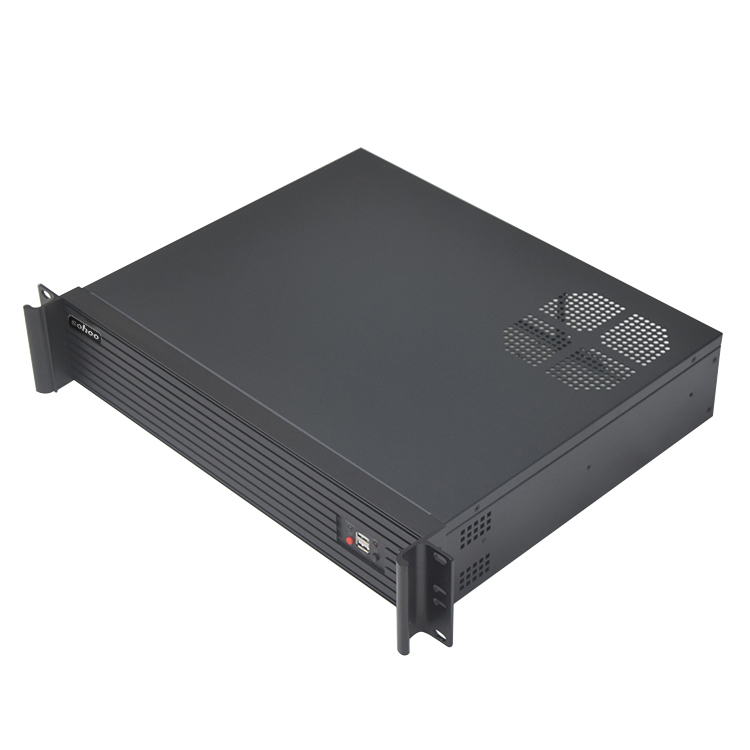

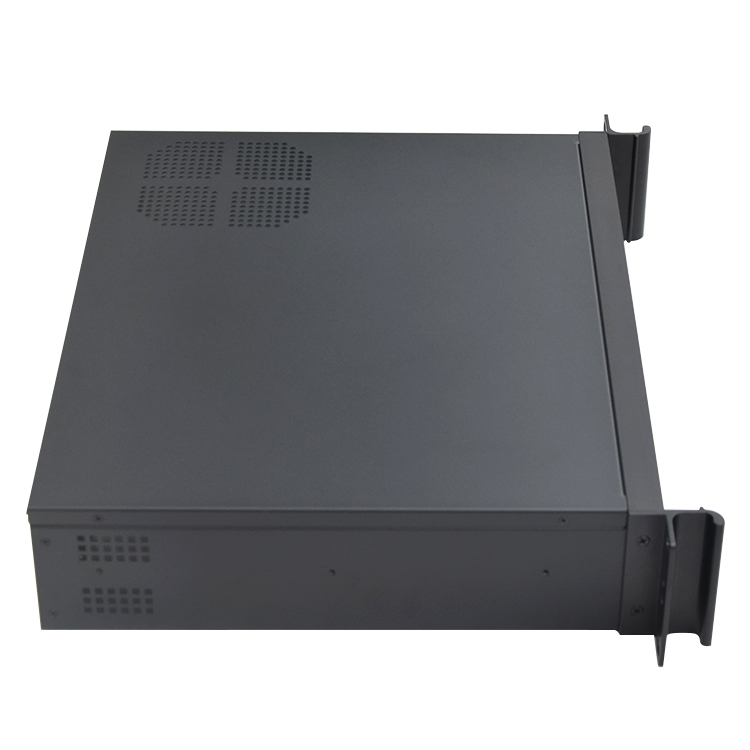

RY2U280-ATX
2U,Chassis,19,inch,rackmount
2U server chassis 280MM chassis ATX power supply supports MATX motherboard
19-inch standard rack-mount shell aluminum alloy profile panel handle
Adapt to the motherboard M-ATX/iTX motherboard
Standard ATX power supply
1x 2.5-inch HDD and 2x3.5-inch HDDs
Cooling system Optional 8025*3 fan (front)
Radiator height within 70mm
GPU card length within 290mm
产品特征 产品规格

上一条 : NAS-8 下一条 : RY2U350 -ATX
返回列表
Standard2U 19"   Rackmount
MaterialsHeavy-duty   cold-rolled steel +Aluminum Panel
Drive Bay ODDN/A
Drive Bay HDD2 x 2.5"
System Board SupportMATX/ITX
IO of USB2xUSB2.0,
IO,Switch Spec1xPower Switch,1x   Reset, 1xPwr LED, 1xHDD LED
Expansion4 low profile slot   opening
Power Supply SupportATX   PSU, PS2
Cooling   Sytem3x8025 fan Options (included 2xfans)
CPU   cooler Height<70mm
GPU Card   Length295mm
Dimensions  Chassis280mm x 430mm x 88mm
Dimensions  Packing370mm x 525mm x 160mm
Weight NWGW(KG)3.3/4.18Kg
