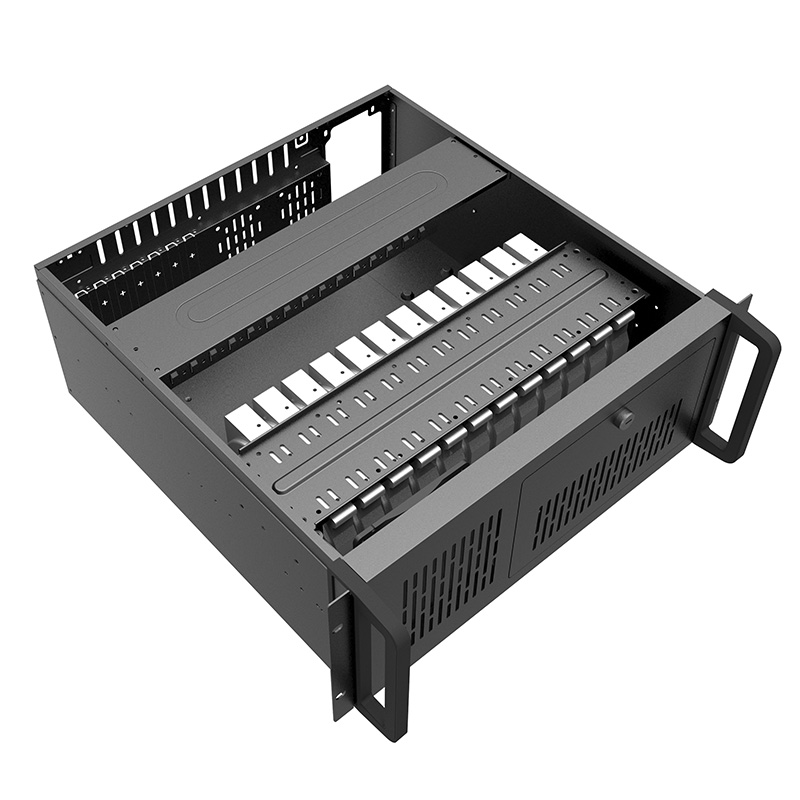

4U-455C

4U,Rack,Mount,14,HDD,Position

4U Rack Mount，Support 14x3.5 HDDs
Motherboard Support - Micro ATX & Extended ATX (up to 12 inch x 13 inch)
System Security: Front Door Is Lockable

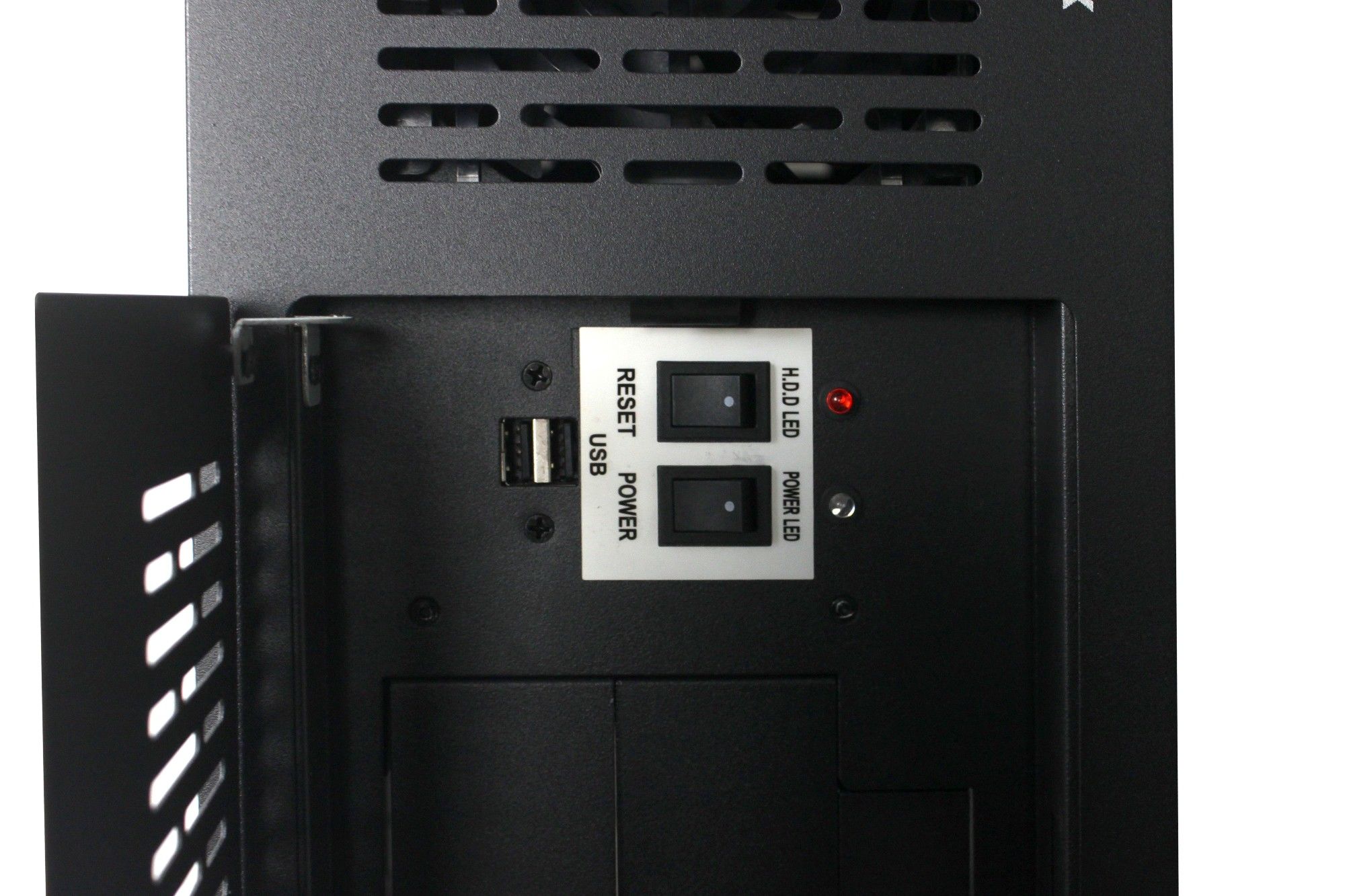

LEDs for server functions - LEDs to indicate the following: Machine state (Power LED), HDD Activity, Switches: Power ON/OFF, Reset,
Powerful Airflow- included 1x120mm on front, make chassis in best airflow

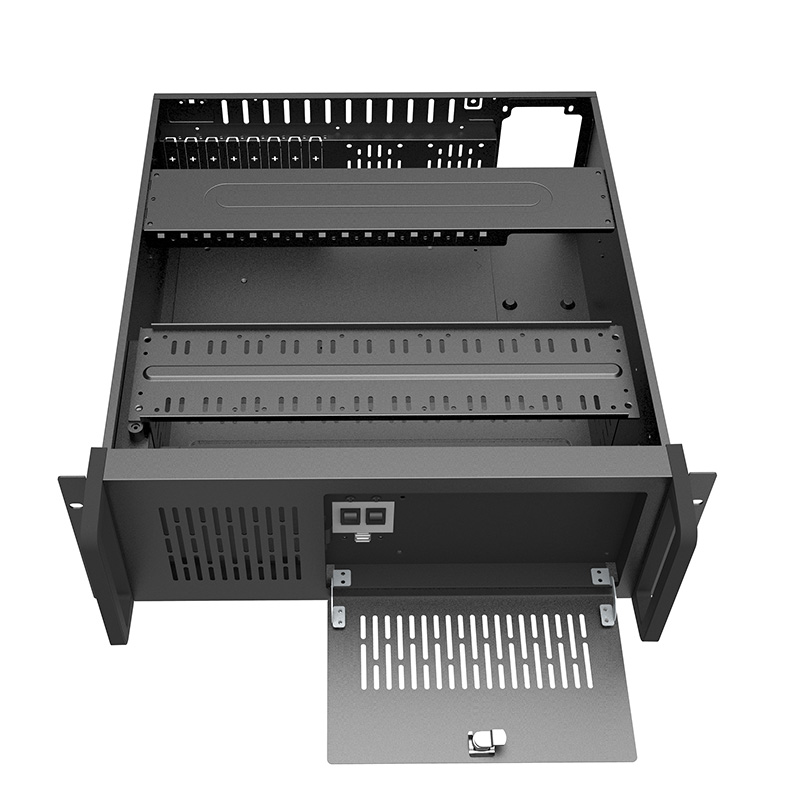

Added Security - Door of front panel is lockable with keys provided
Optional extra: - Slide rails - to allow easy access to internals, when installed in a rack

上一条 : 4U-455B 下一条 : 6U Mining Case

返回列表

Case Specifications
Form Factor:	Rackmount
Motherboard Support:	ATX, Micro ATX
PSU Support:	Standard ATX
PSU Location:	Rear
Gaming Case:	No
Water Cooling:	Not Water Cooling Ready
Body Material:	1.0mm SECC Steel
Front Bezel Material:	1.5mm SGCC Steel
Side Panel:	Metal
External Bays:	0 x 5.25 External
Internal Bays:	6 x 3.5 Internal
Drive Bay Notes:	None
Expansion Slots:	7 x Full Size
Cooling Front:	Space for 1 x 120mm fan (inc.)
Cooling Top:	None
Cooling Rear:	Space for 2 x 60mm fan
Cooling Side:	None
Cooling Bottom:	None
IO Ports:	2 x USB 2.0
GPU Max Length:	270mm
CPU Cooler Maximum Height:	125mm
Front Bezel Colour:	Black
Body Colour:	Black
System Cabinet Features:	Cross beam support with 3 x PCI / PCI-e supports
PSU Included:	No
General Specifications
Manufacturer Part Number:	4U Rack mount
EAN Number:	5055492430748
Has Mains Plug:	No
Colour:	Black
What's In The Box:	Case
	Screw Pack
	Keys for door lock
	4 x Feet
Unit (Product) Dimensions (mm):	503177480mm
Packaging Dimensions (mm):	565520242mm (W x Dx H)
Net Weight (KGs):	11 KGs
Gross Weight (KGs):	13.1 KGs
