NAS-8
NAS-8

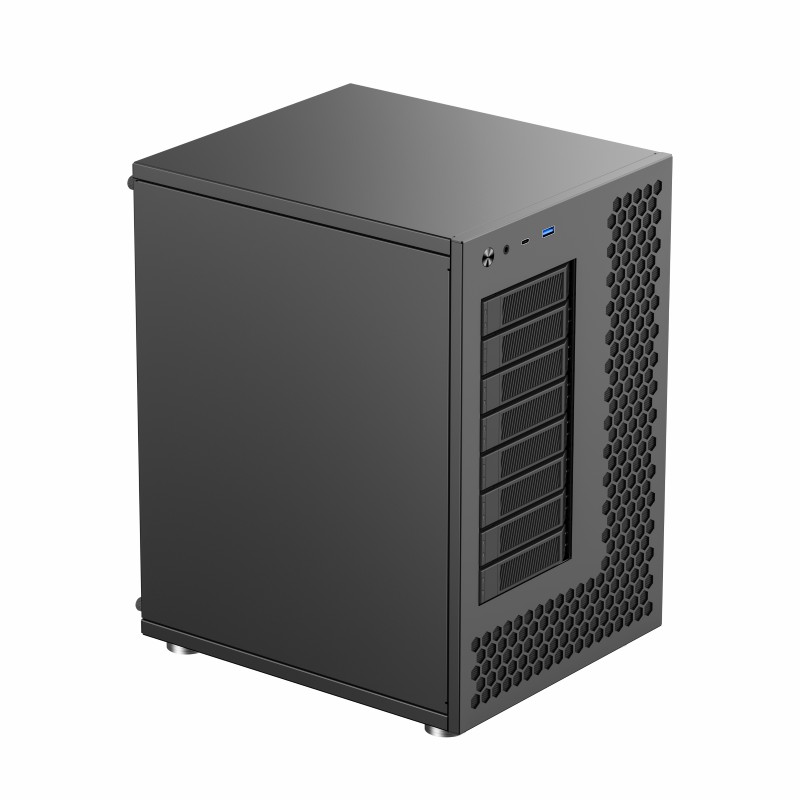

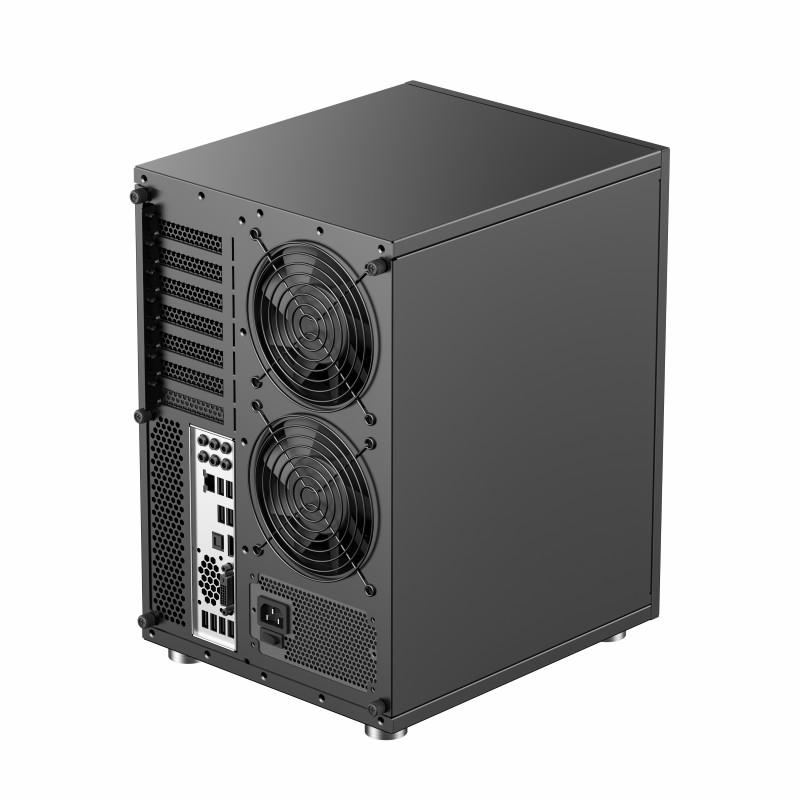

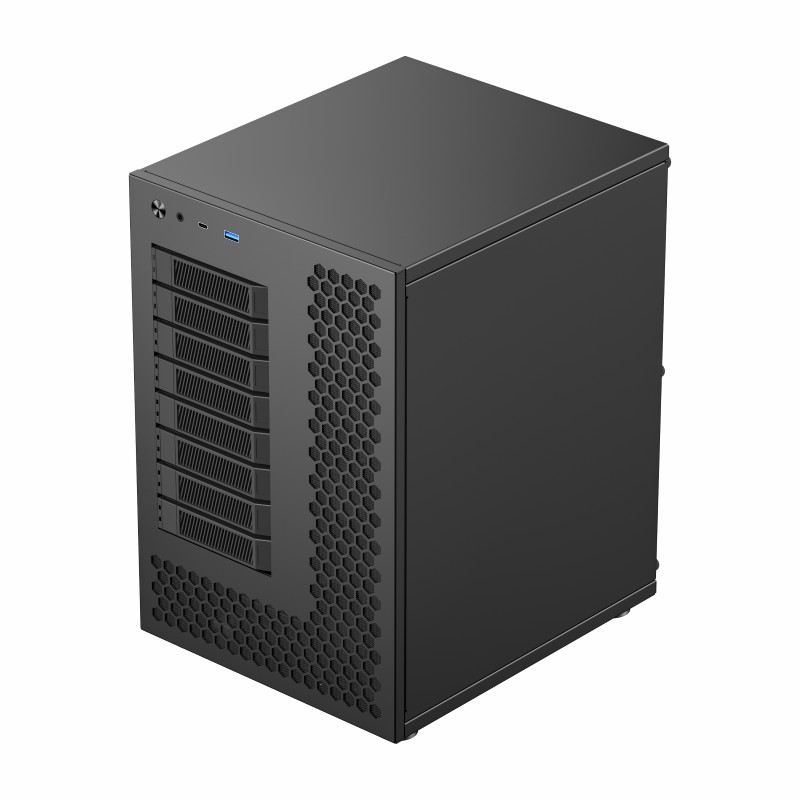

NAS-8,Supporting 8 SAS 12G/SATA-6G hot swappable multi-functional NAS chassisThe hot-swap hard drive tray design allows your hard drive chassis to use up to 8x 2.5 or 3.5 SAS-12G /SATA-6G hard drives simultaneously, with two LED lights for you to understand the operation status of the hard drive
Independent anti-theft lock ensures that confidential information is not easily leaked
Can accommodate 8x 2.5 or 3.5 hard drives and additional 3x 3.5 hard drives
Compatible with ITX/Micro ATX motherboard and SFX power supply
Supports 250mm expansion cards
Front I/O interface: USB Type-C x 1, USB 3.0 x1, Combo audio x 1
产品特征 产品规格


上一条 : 8W Mining Case 下一条 : 没有了！
返回列表

产品名称

Product name

NAS CASE

扩展槽

Expansion slot

7pcs(半高卡Half Profile)

产品型号

Product model

NAS-8

电源位置

PSU  position

下置, SFX(125*100*63.5mm)

产品颜色

Color

黑色

Black

最大兼容性Compatibility(Max)

CPU散热器限高70mm(下压散热建议不超过63mm)；显卡限长250mm

CPU radiator : 70mm height(max)

VGA card : 250 length(max)

产品尺寸

Product size

（L)291*(W)240*(H)361.7mm

净重

N.W

8.0Kg

包装尺寸

Packing size

（L)*(W)*(H)mm：

毛重

G.W

9.0Kg

五金尺寸

Chassis size

（L)281.4*(W)240*(H)350mm

背板

Backplane

SATA/SAS背板*2，SFF-8643接口方案或SATA接口方案(选配)

产品材质

Meterial

0.8/1.0mm Thickness

SATA/SAS BackPlane, SFF-8643 or SATA

主板类型

Mother Board

    ATX(305*245mm),  Micro-ATX(245*245mm)、ITX(170*170mm)、

前置接口

Front IO

电源按键*1, Combo audio*1, U3*1,TYPE-C*1

磁盘空间

Drive space

5.25“ODD  0个

5.25“ external for CD/DVD-ROM 0pcs

散热系统

Cooling system

前置： 8015 FAN*3

Front：8015 FAN*3

3.5“HDD(Or 2.5")  8 个 (支持热插拔)Hot-Swap

3.5“internal for H.D.D   8 PCS

后置： 12cm FAN*2

Rear：12cm FAN*2

2.5“固态硬盘位 3个

2.5”  internal for SSD 3pcs

装柜数量

Quality for  container
