Sepcification

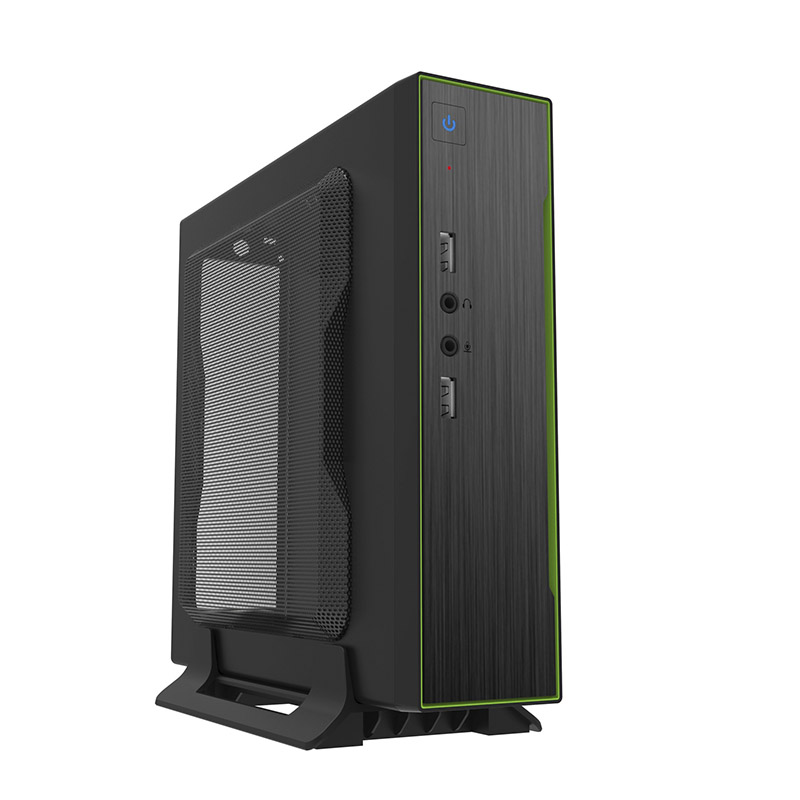

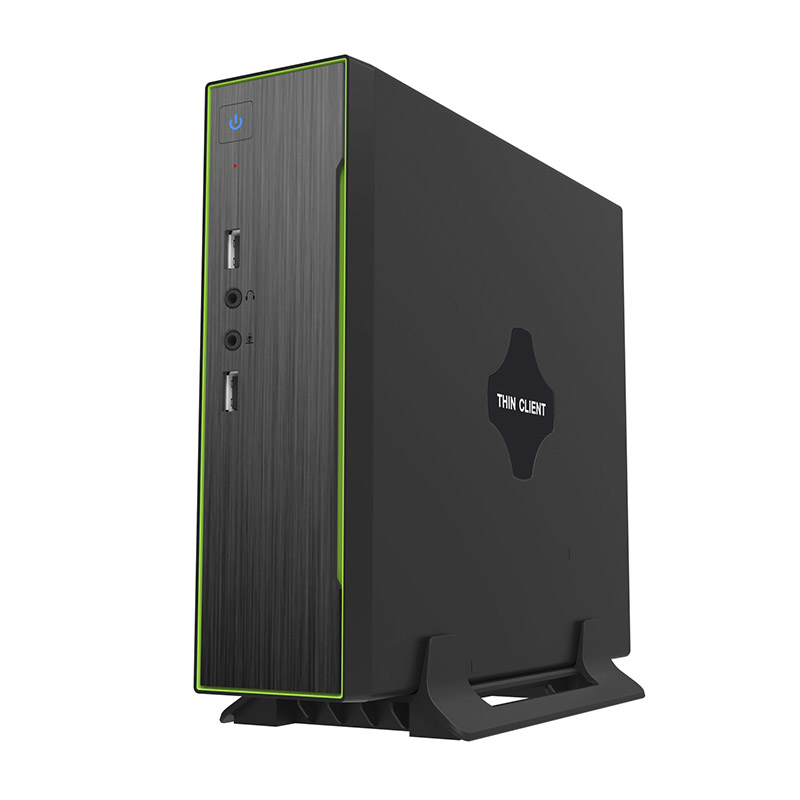

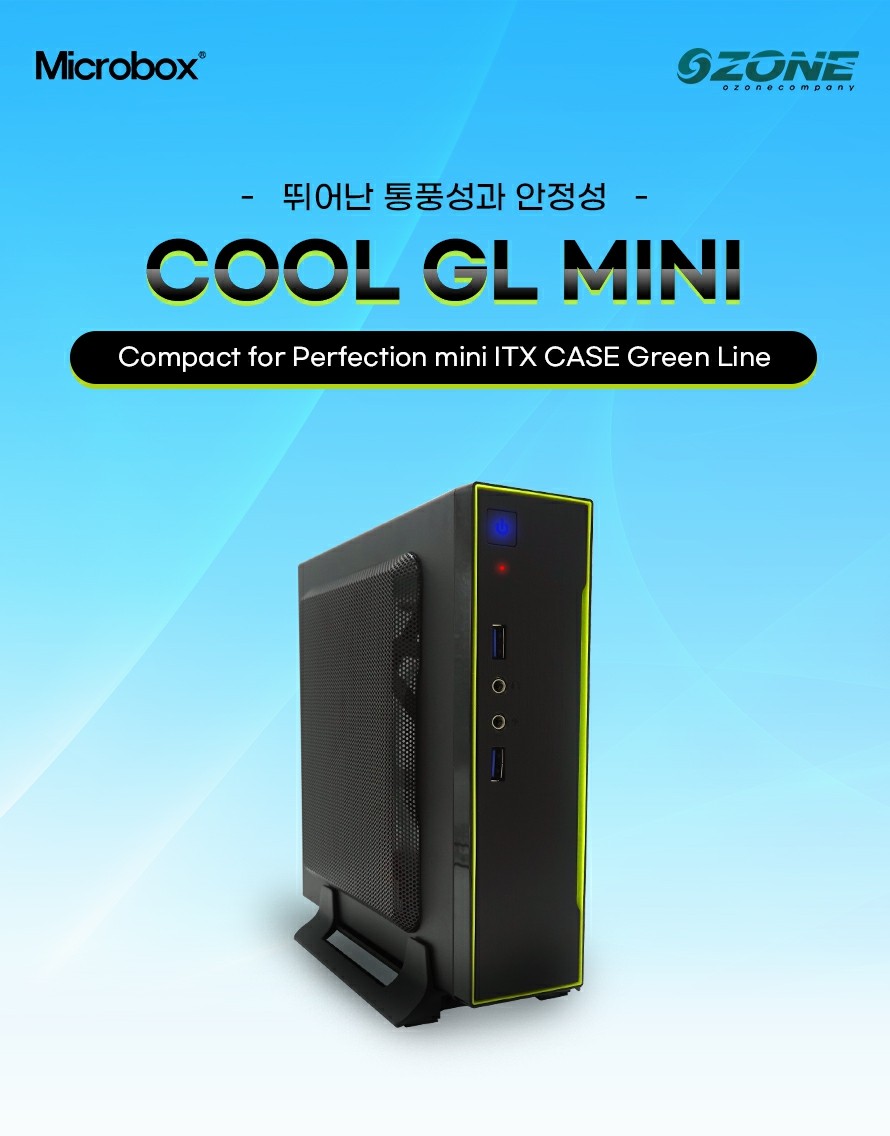

| Model No.: | M200 Mini ITX (Thin Client Chassis) |
| Type: | Mini ITX/Thin-ITX (2L design chassis) |

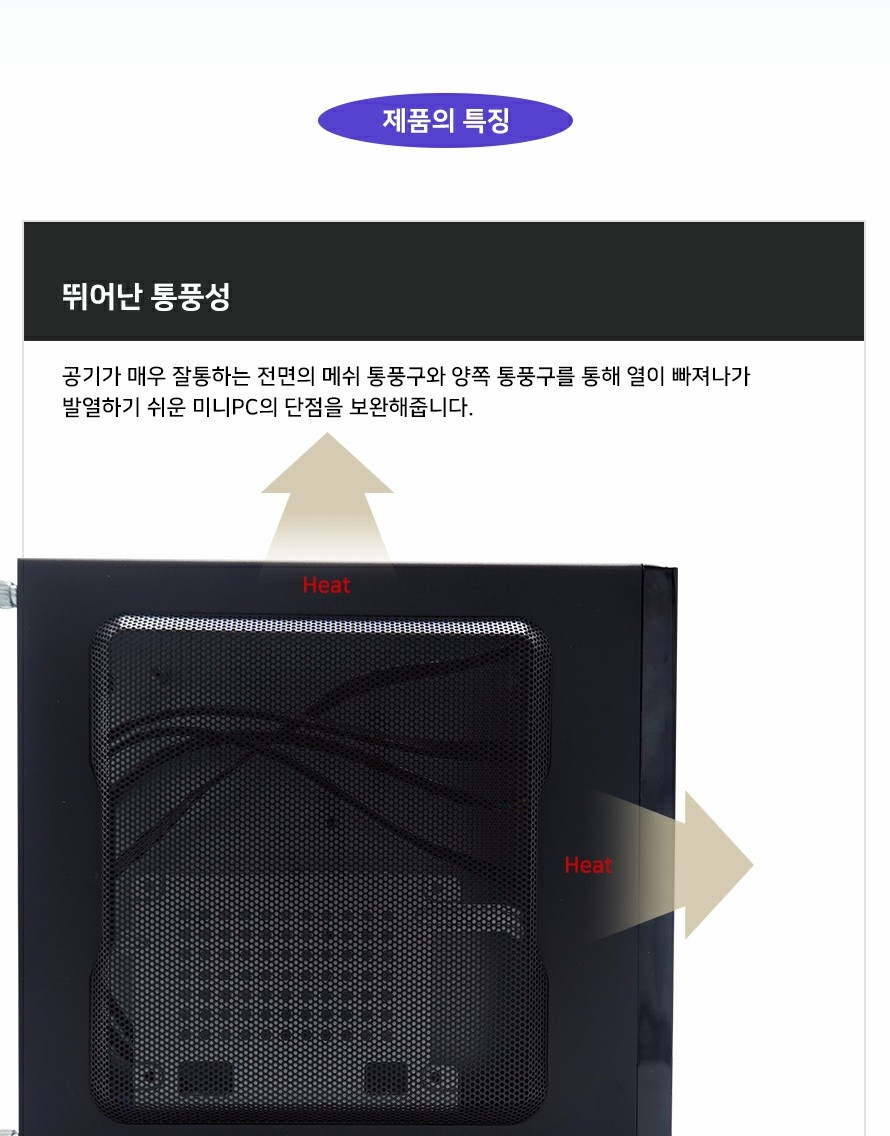

| Front Panel: | Elegant matte finish with hidden airflow hole |
| Side Panel: | Dual air vent side panel for better heat disspation |

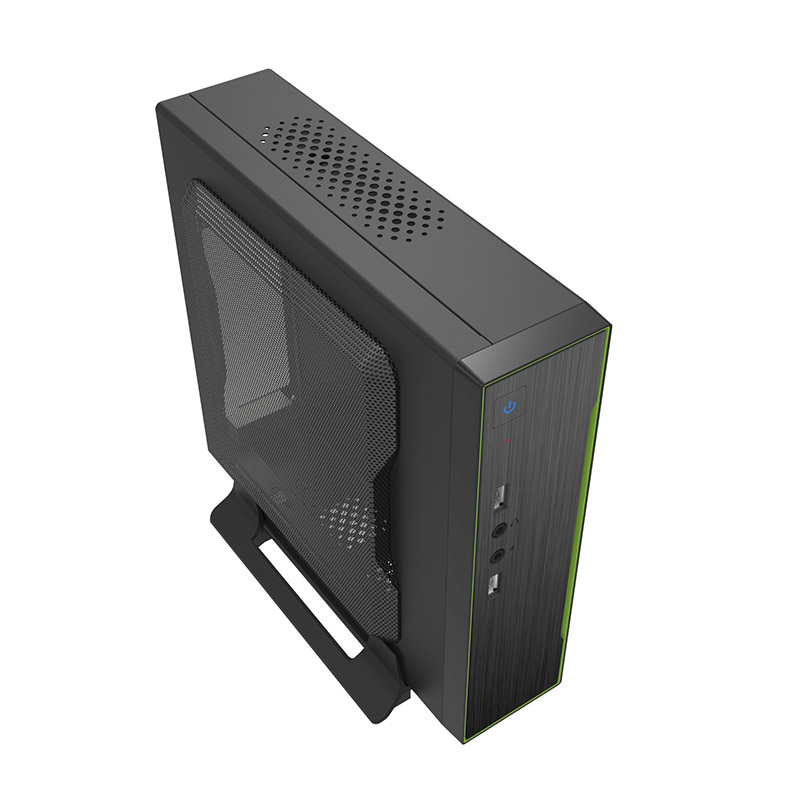

| Top Panel: | Top with air vent for better heat disspation |
| Bottom Panel: | Bottom with air vent for better heat disspation |
| Chassis Steel: | 0.6mm, SGCC outside black painting |

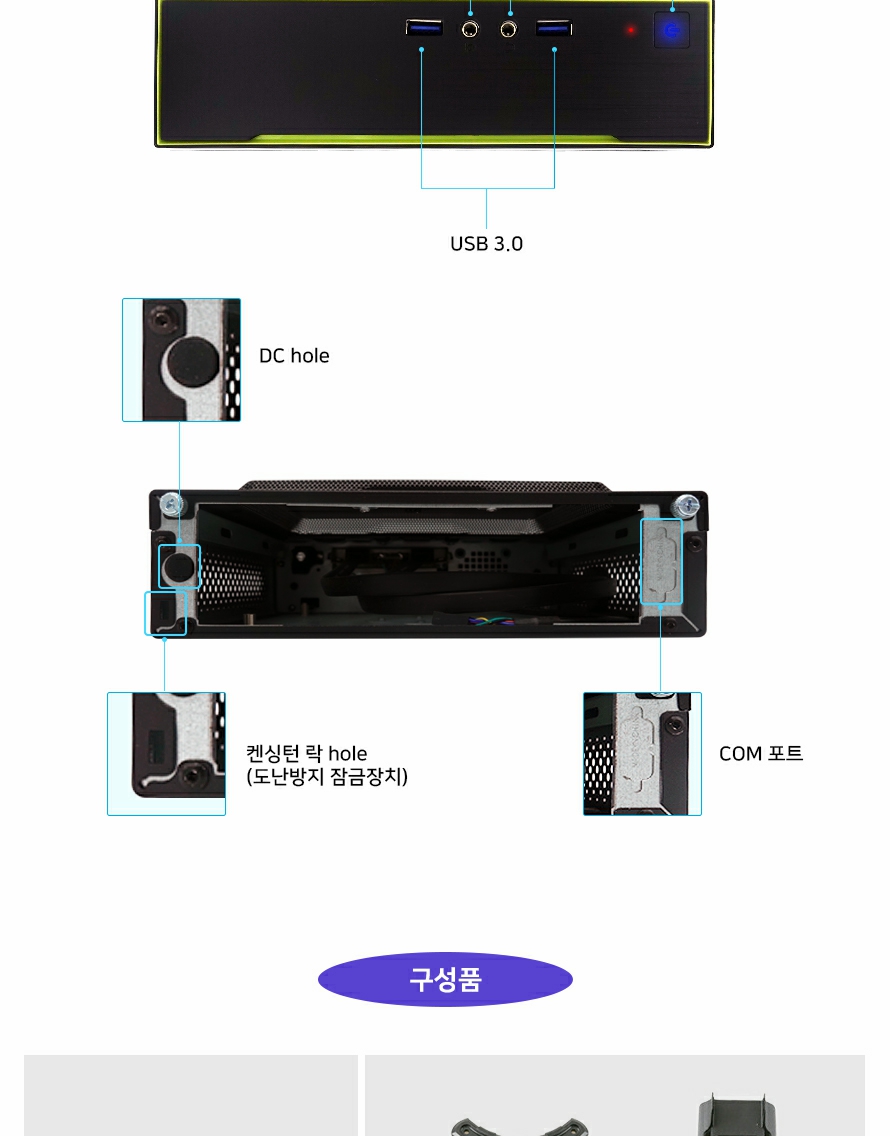

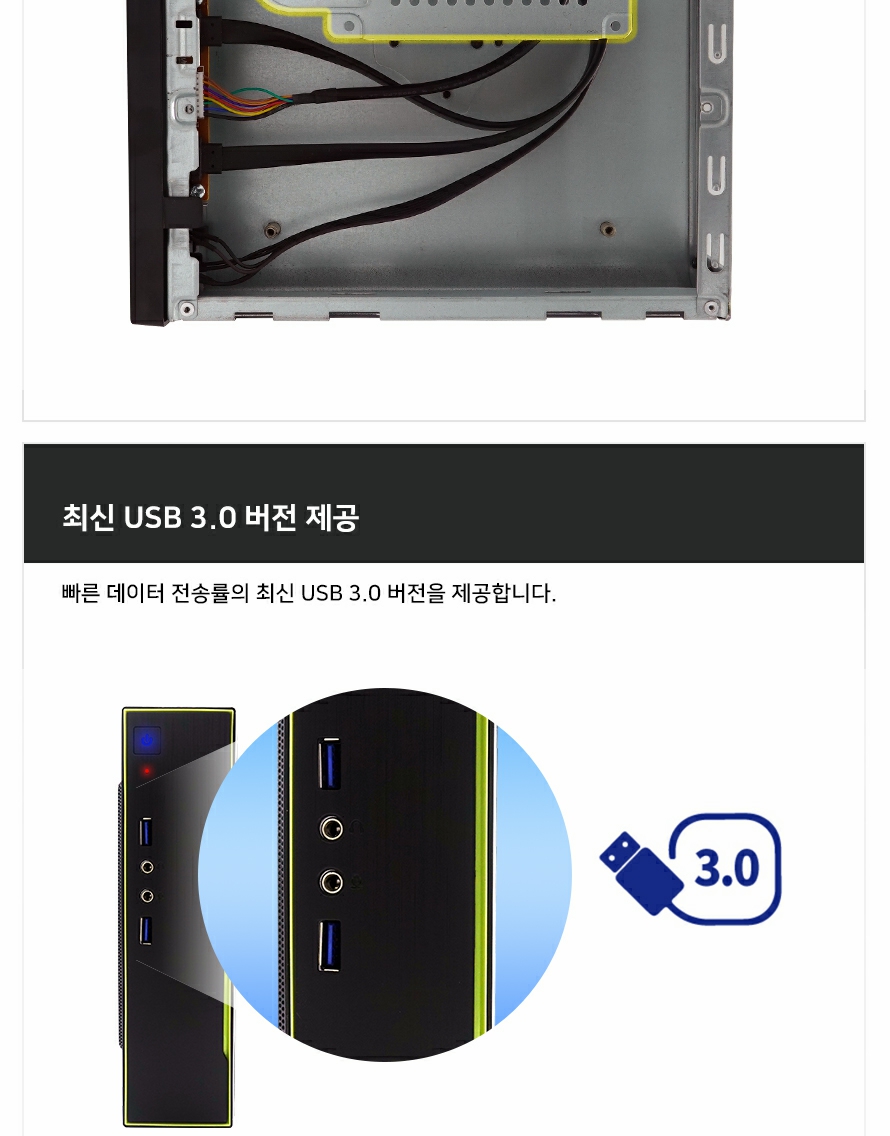

| Front USB Ports: | USB2.0x 2 +HD-Audio |
| Upgrade to USB3.0x 1 (avaliable) | |
| Upgrade to USB3.0x 2 (avaliable) | |
| PSU (DC-ATX/Adapter(optional): | DC-ATX PSU GM-120W |
| 12V DC Adapter 120W | |
| AC EU PowerCord for Adapter | |

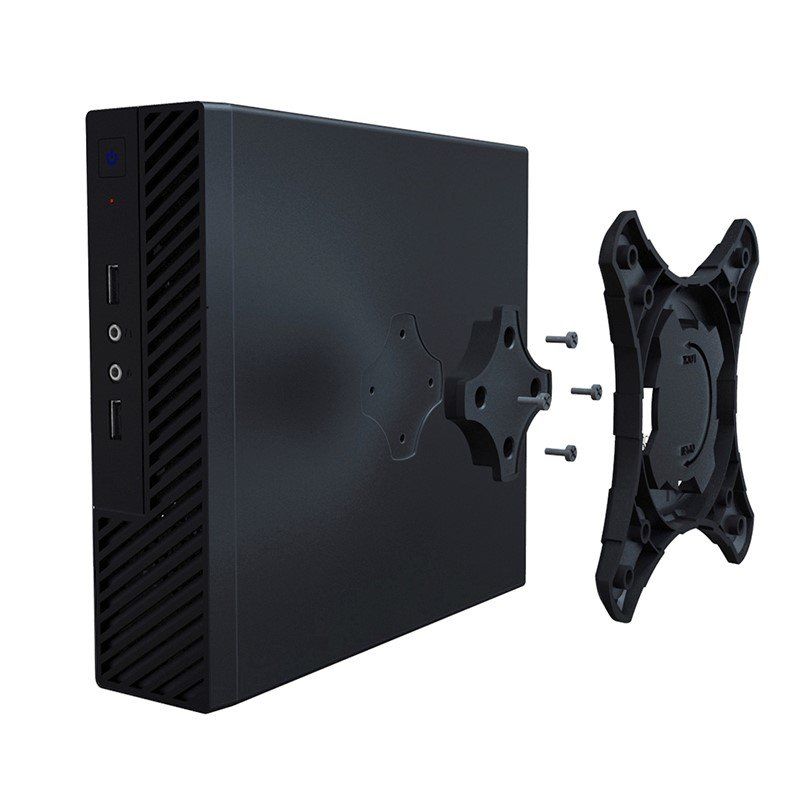

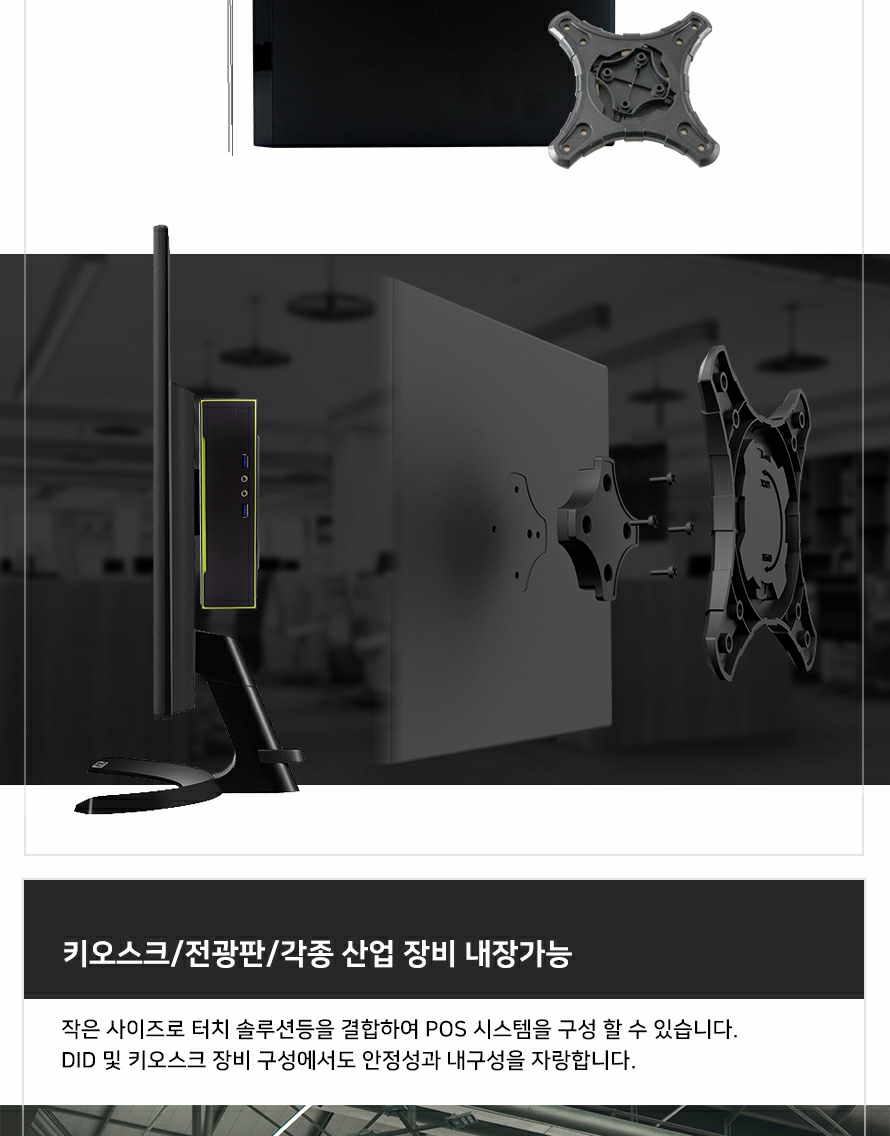

| VESA MOUNT(optional) | Support as Optional |
| Cooling Fan (Recommend!!) | Front: 1x40mm fan 3pin (Option) |

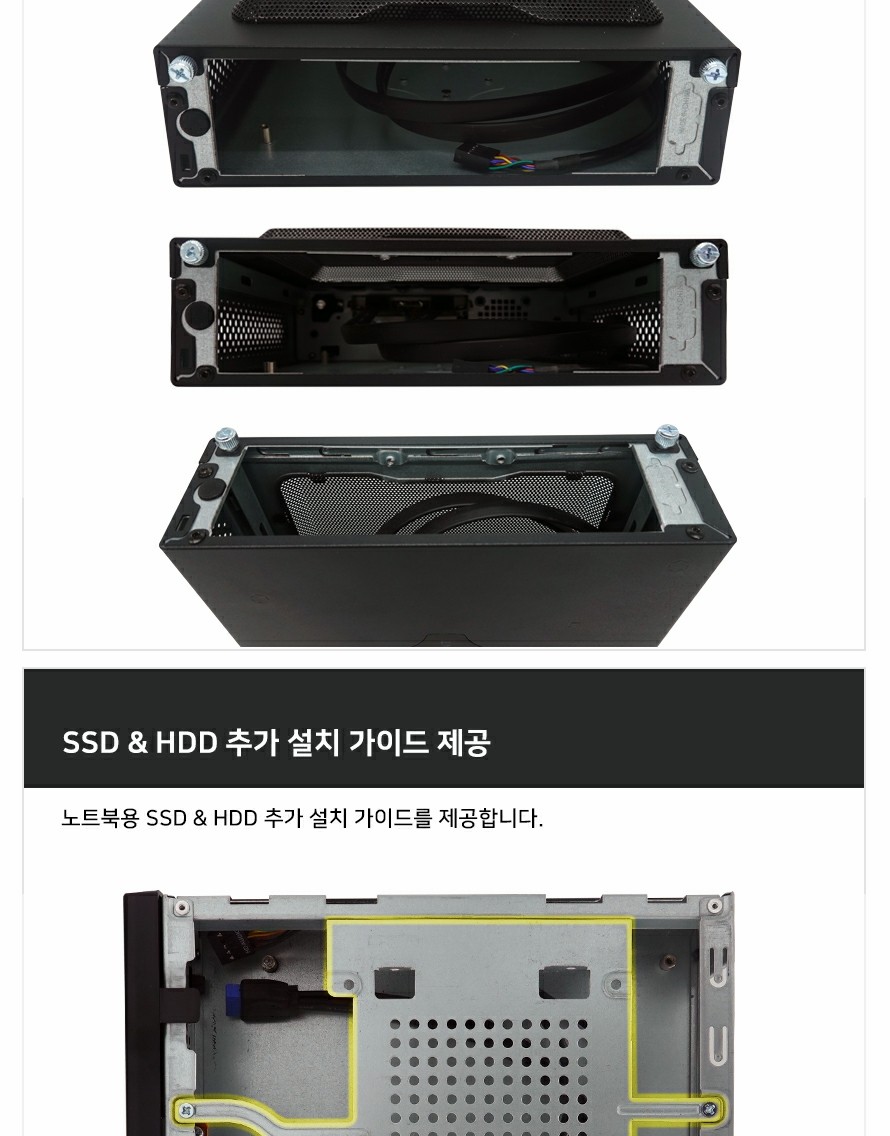

| Drive Bay 1x 2.5'' SSD | 1x "I" type HDD cage or 1x"L" type HDD cage |
| Max.CPU Cooler(Height): | 30 mm |

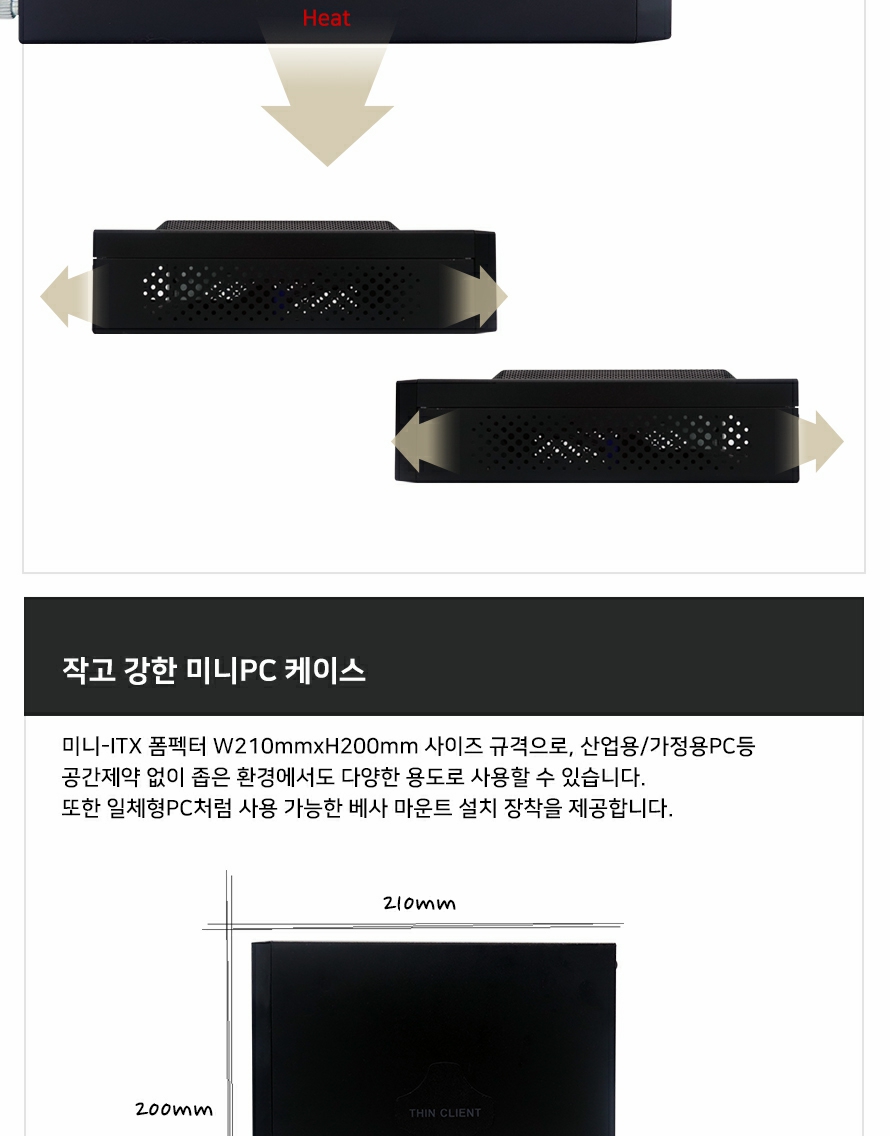

| Chassis Size: | L200*W55*H200 mm |
| Carton Size: | L226*W136*H288 mm |
| Certify of chassis | Match with CE/EMI standard |
| Recommend to pre-install 4cm cooling fam, for best active internal airflow！ | |
