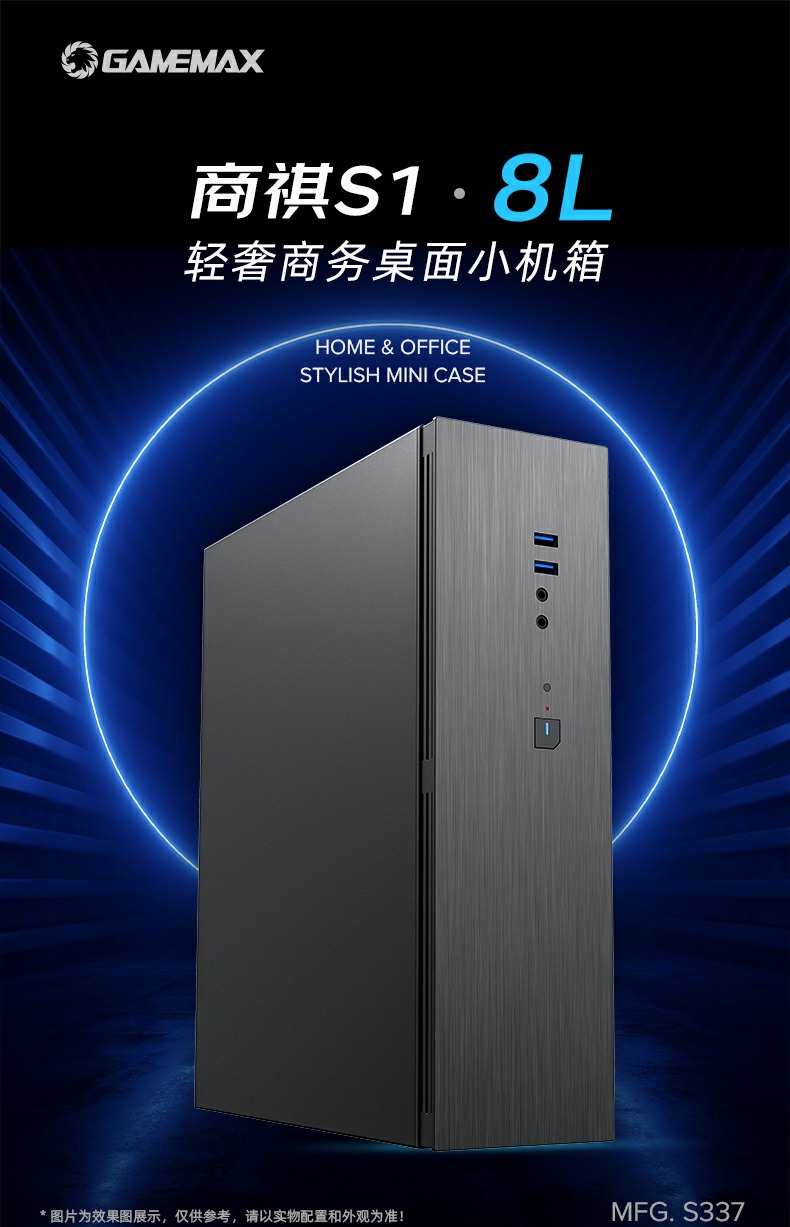

Form Factor (Midi, Micro, Mini ITX, Full) | Micro mATX SFF 8.3L Chassis | |

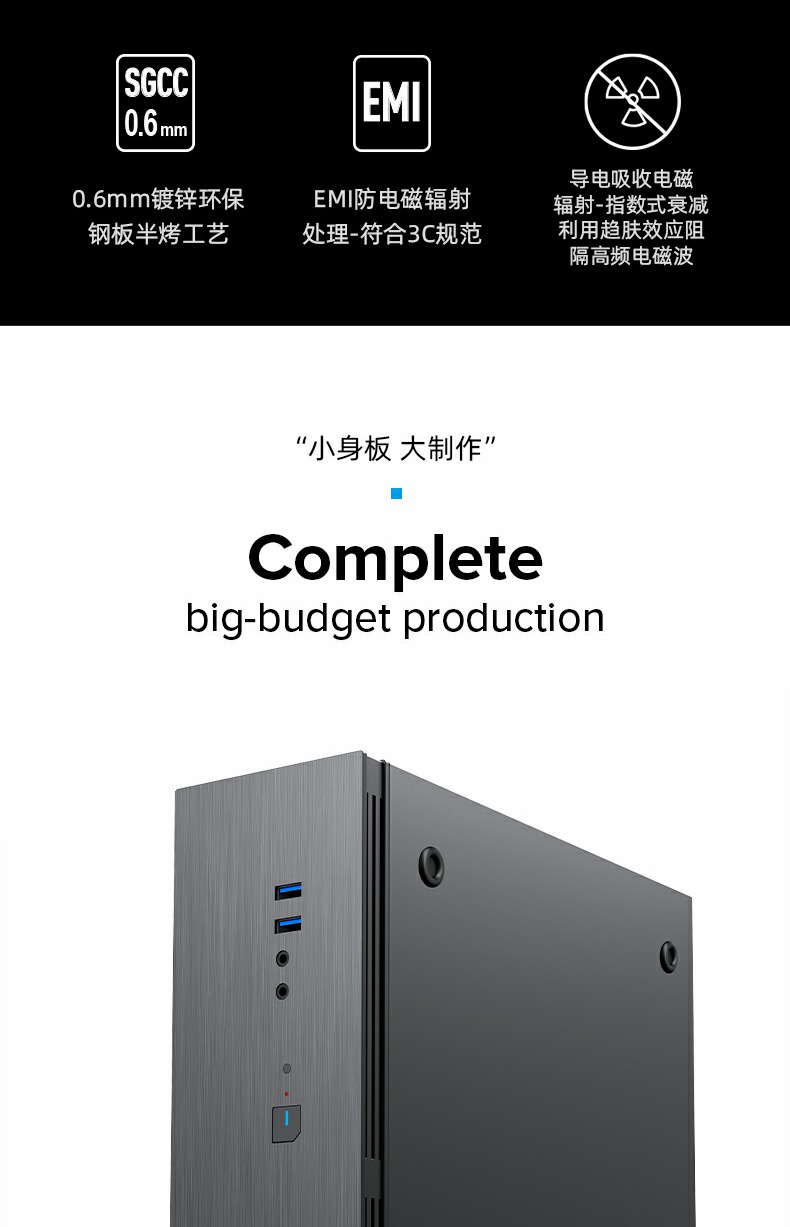

Chassis | SGCC 0.6mm | |

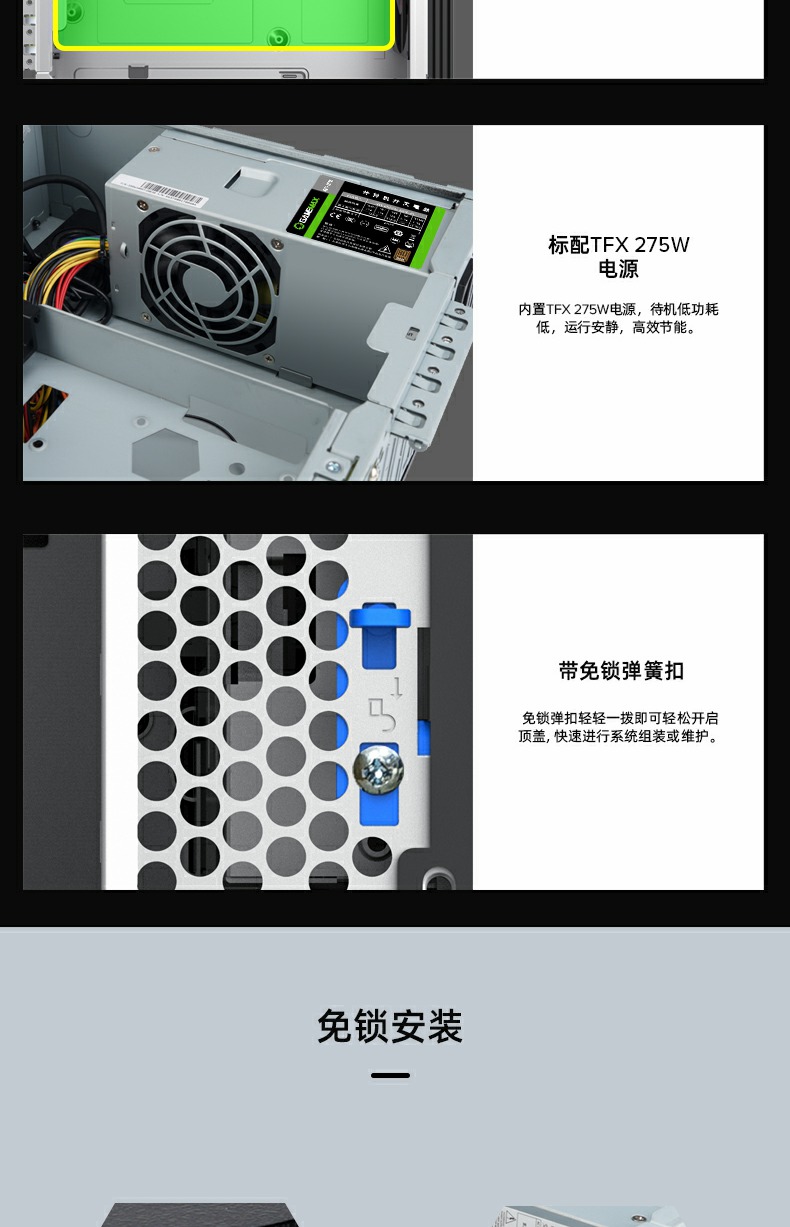

PSU Form Factor | Bottom/TFX | |

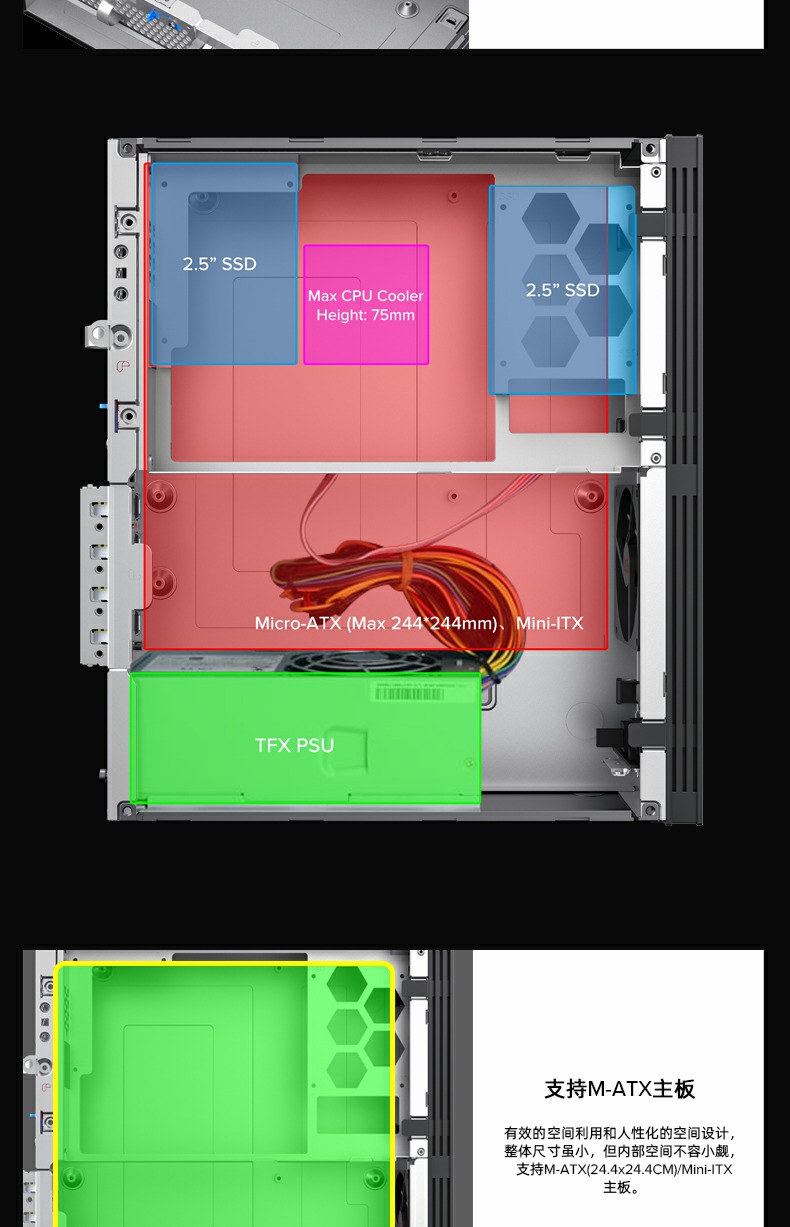

M/B Form Factor | Micro-ATX (Max 244*244mm)、Mini-ITX | |

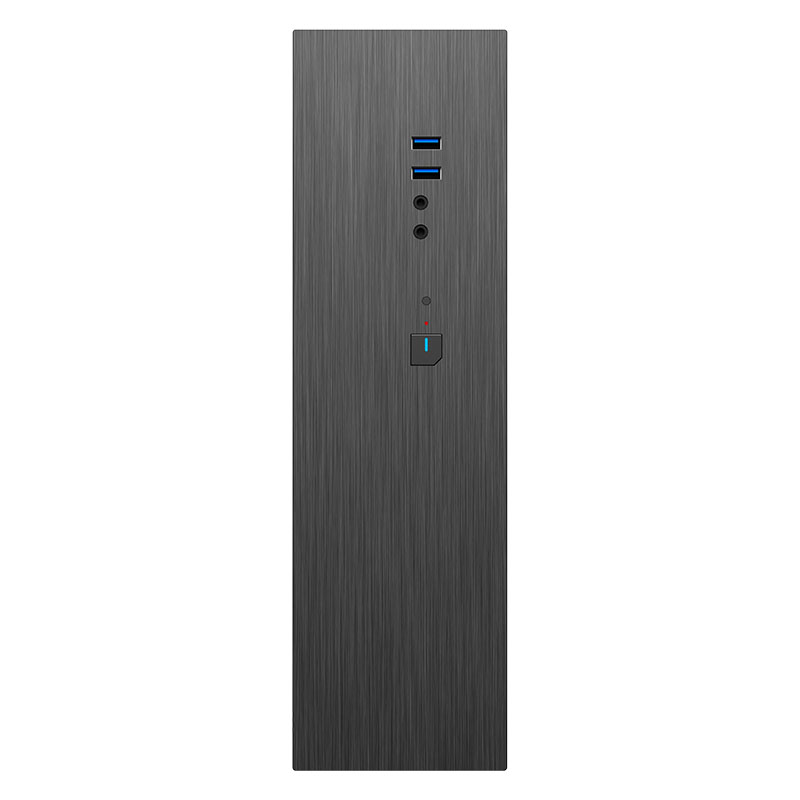

Front Panel | ABS | |
Top Panel | Metal | |
Side Panel | Left | Metal cover |
Right | Metal cover | |
External Drive Bay(s) | Slim ODD (9.5mm) | *0 |
3.5" | *0 | |
Internal Drive Bay(s) | 3.5" (HDD) | *1 |
2.5" (SSD) | *1 | |
3.5“ or 2.5“ HDDx 1, 2.5“SSD x 1 | ||
I/O | Buttons | *1 |
USB3.0 Port(s) | *2 | |
HD Audio Support | *1 | |
Type C | *0 | |
P-lock | *1 | |
Card reader | *0 | |
Security /COM port | Kensington lock,Pad lock,DB9 Com hole | |

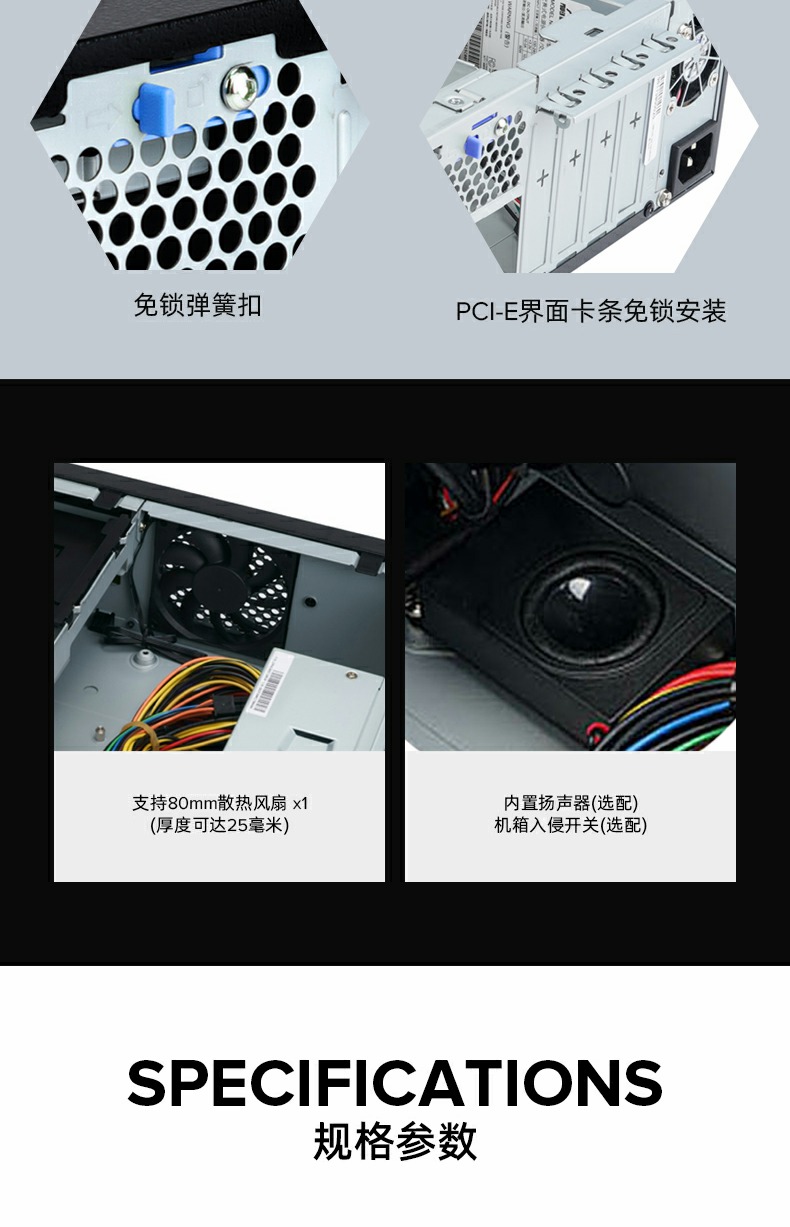

Cooling Fan Support | Front | 1x 8025mm (Recommend) |
Dust Cover | Option | |
Slots | *4 | |
Carton & Logo | by OEM | |

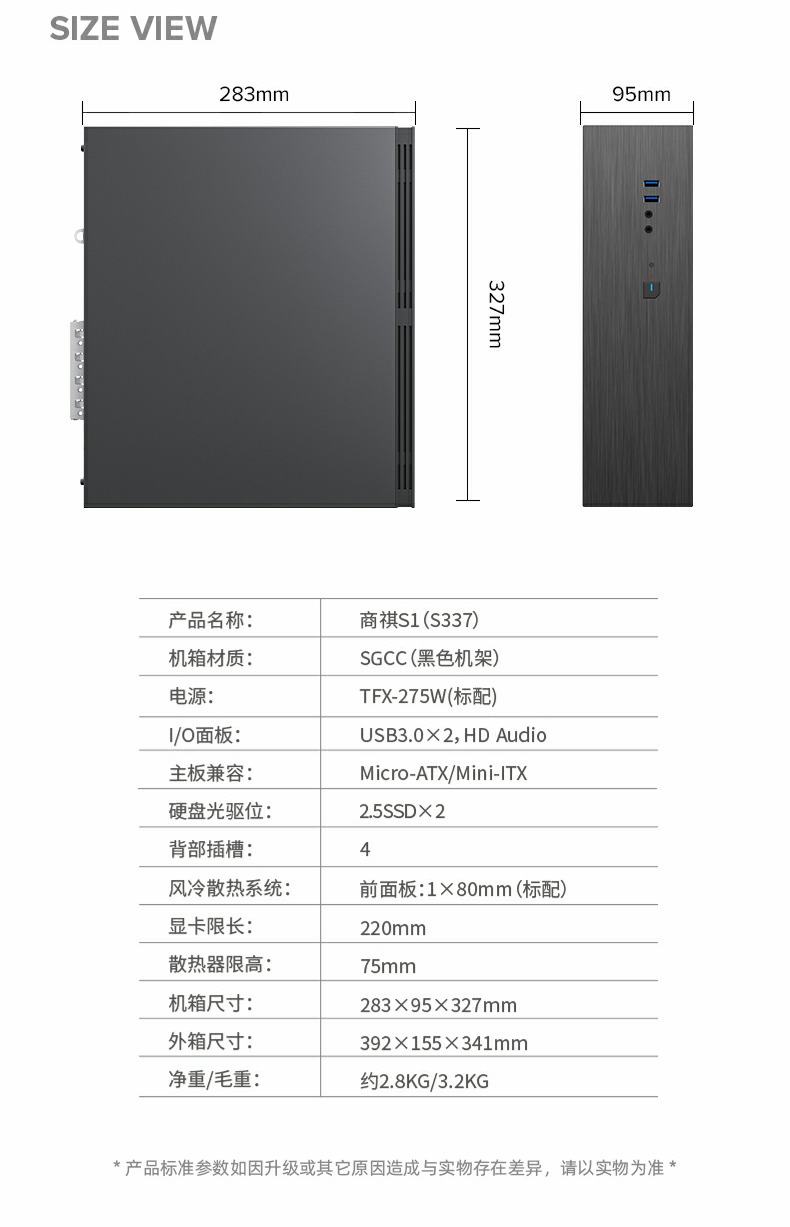

Dimensions | Chassis | (L)266*(W)95*(H)327mm |
Full Case (inc Fascia) | (L)283*(W)95*(H)327mm | |
Carton | (L)392*(W)155*(H)341mm | |
Net Weight (Kg) | 2.8kgs | |
Gross Weight (Kg) | 3.2kgs | |
VGA Card Length | UP to 220mm | |
CPU Cooler Height | UP TO 45mm |
