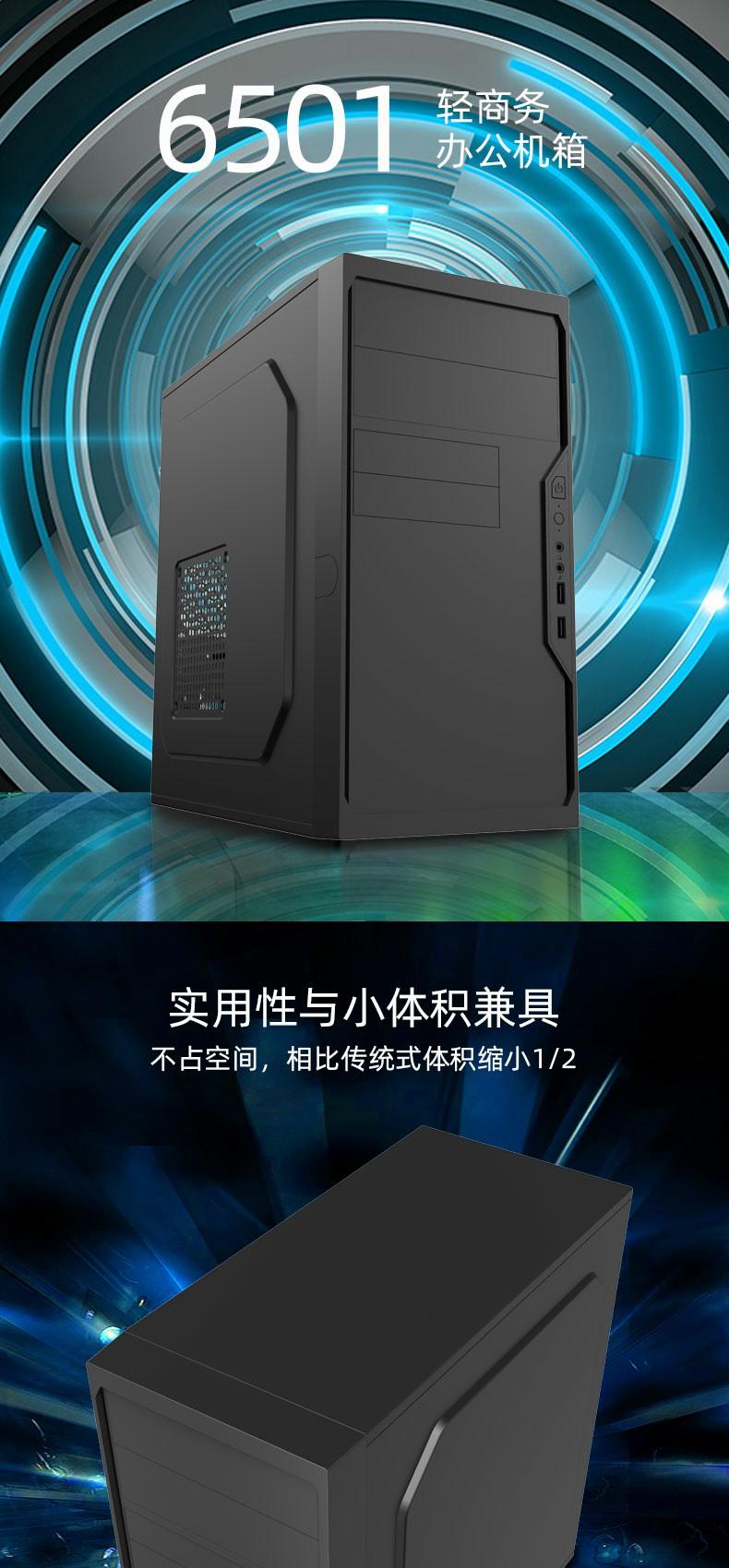

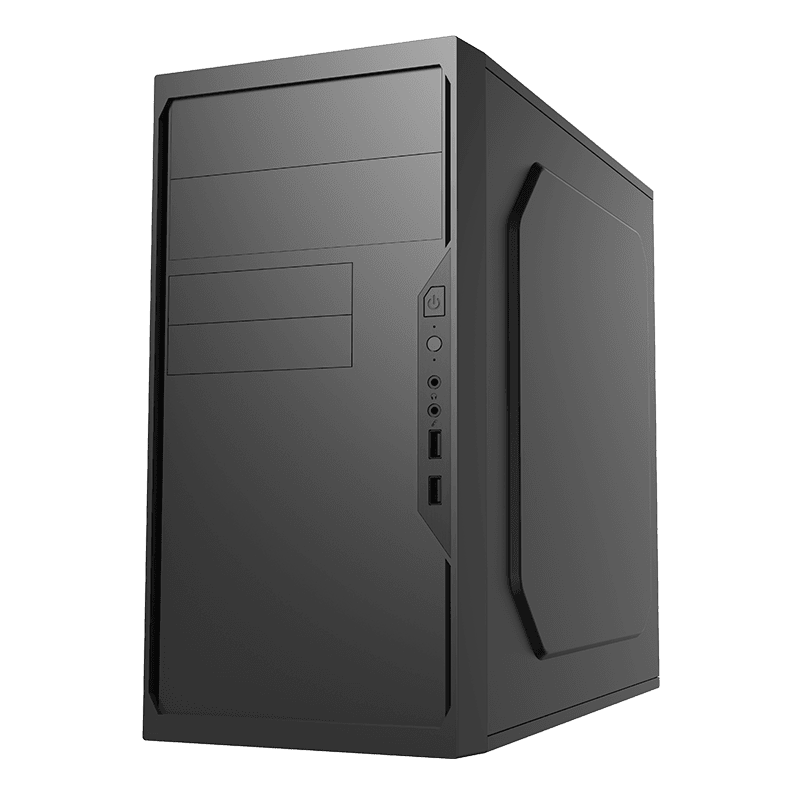

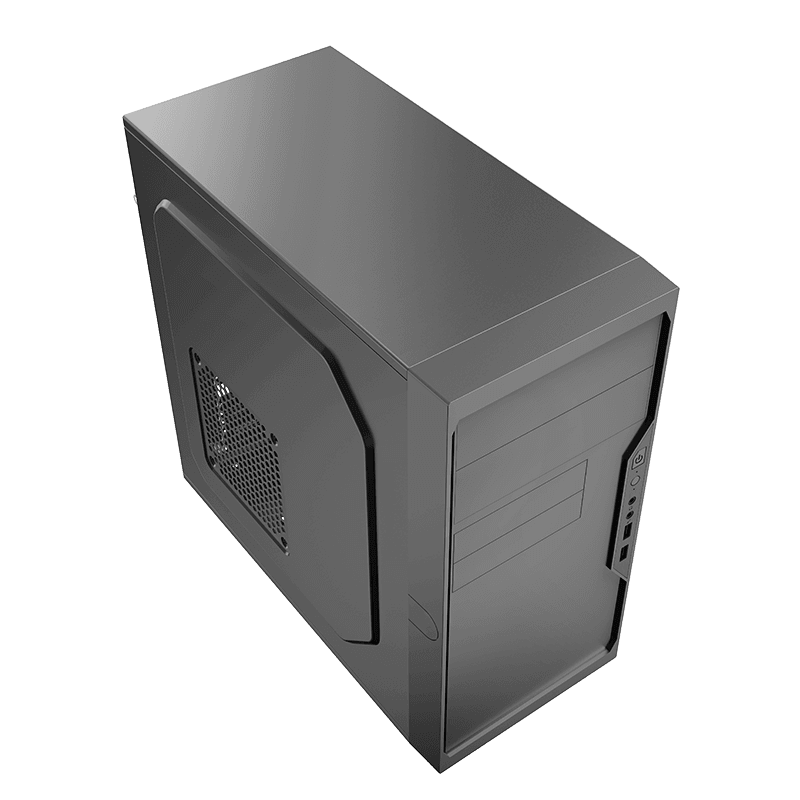

| Model Micro ATX Chassis | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | Micro | |
| Chassis | SPCC,SGCC 0.4mm | |
| PSU Form Factor | TOP/ATX | |

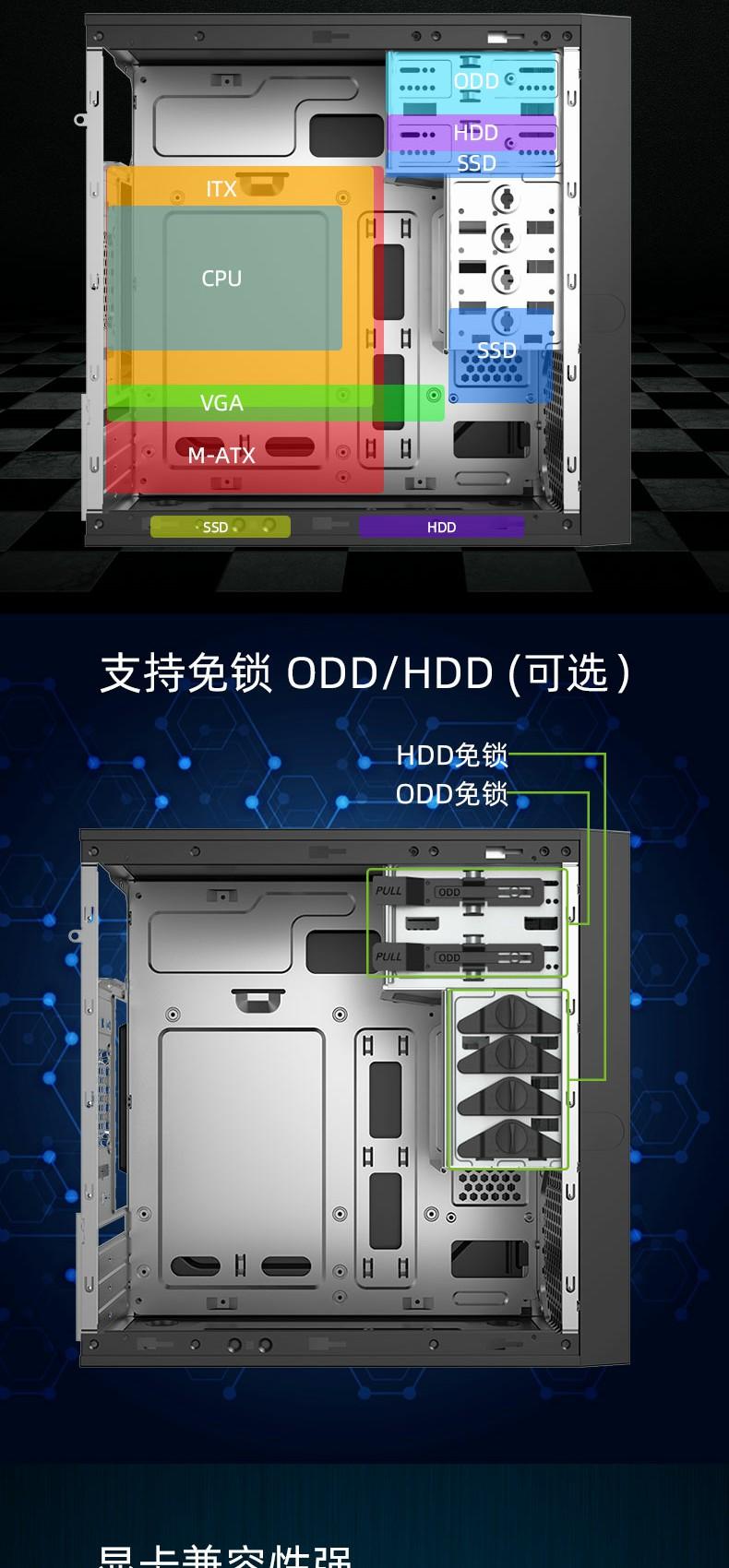

| M/B Form Factor | Micro-ATX、Mini-ITX | |

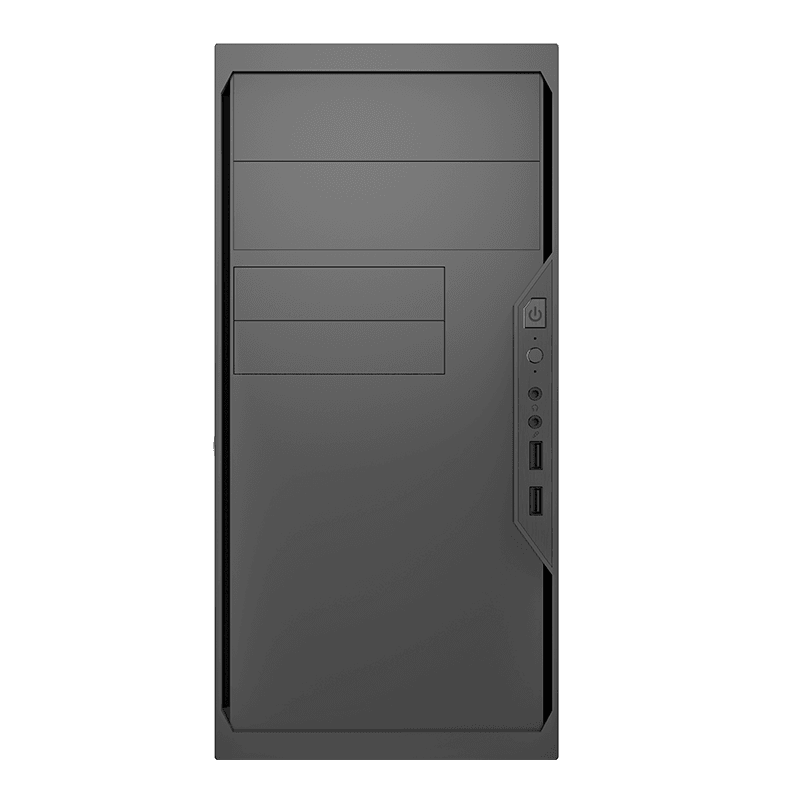

| Front Panel | ABS | |
| Top Panel | Metal | |

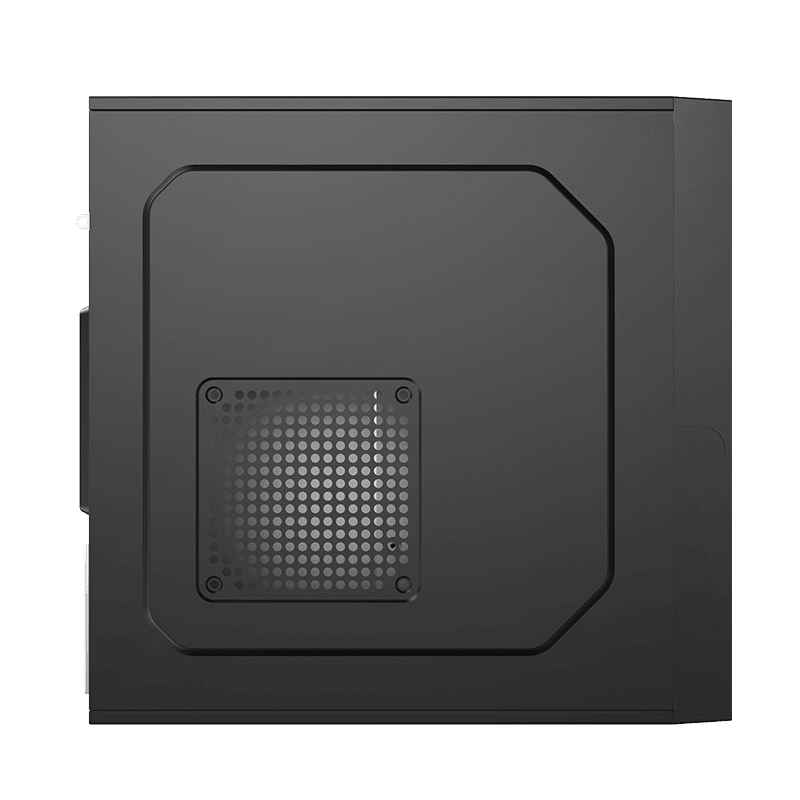

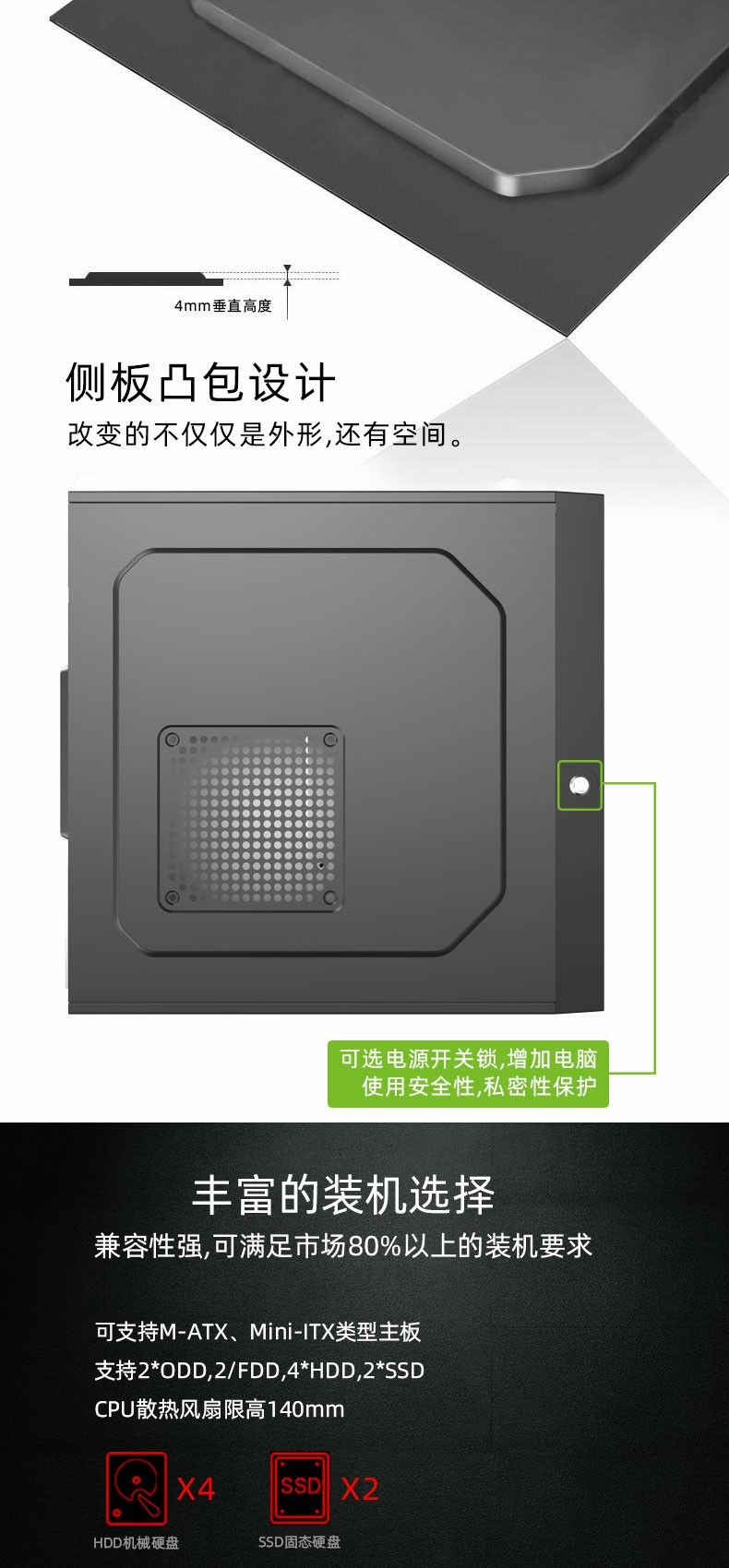

| Side Panel | Left | Metal cover |
| Right | Metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *1 |
| 3.5" | *1 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *3 | |

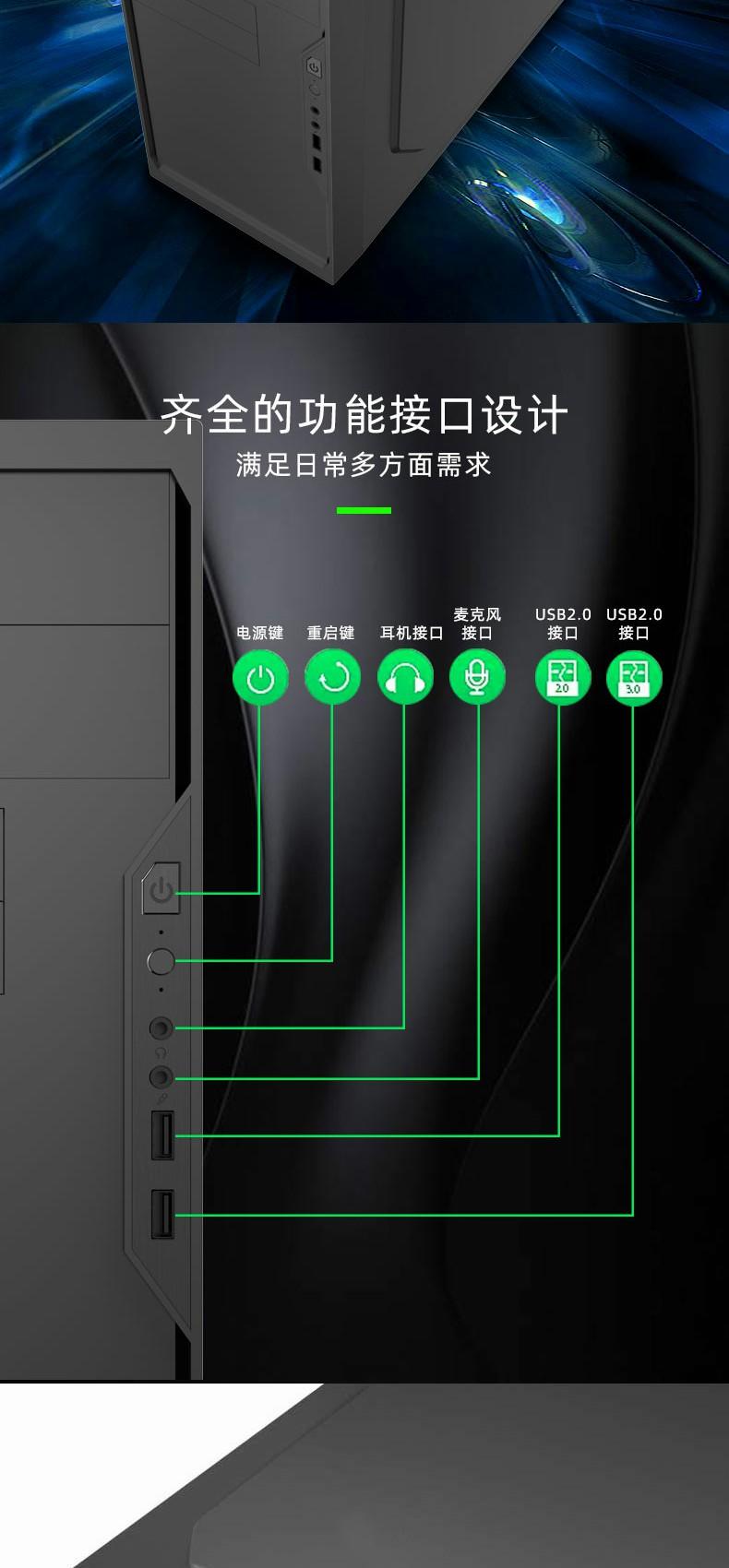

| I/O | Buttons | *2 |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *0(Optional) | |
| USB3.1 Port(s) | *0(Optional) | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| P-Lock | *0 | |

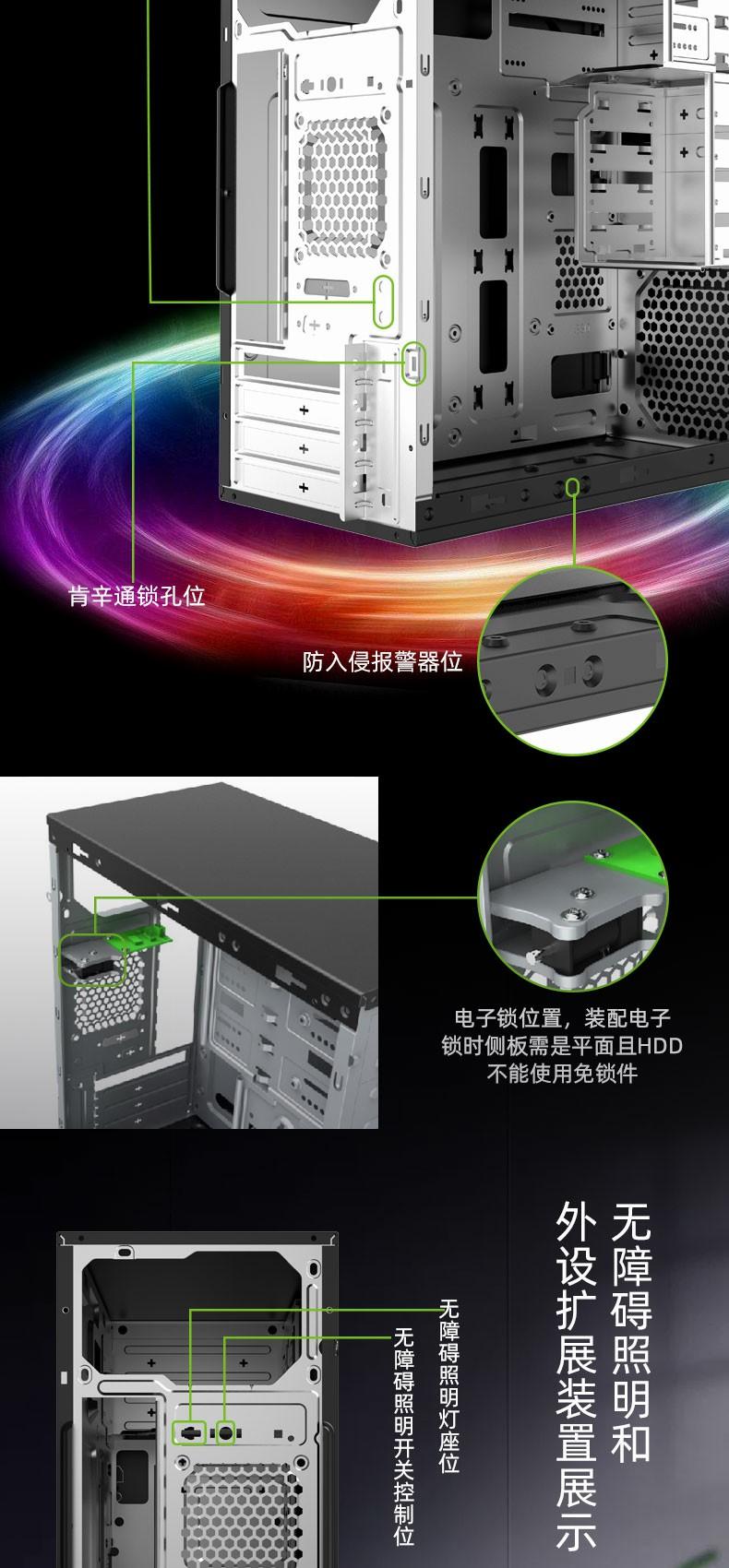

| Controller max. fans | Kensington lock,Pad lock,Alarm Switch,electronic lock(Optional) | |

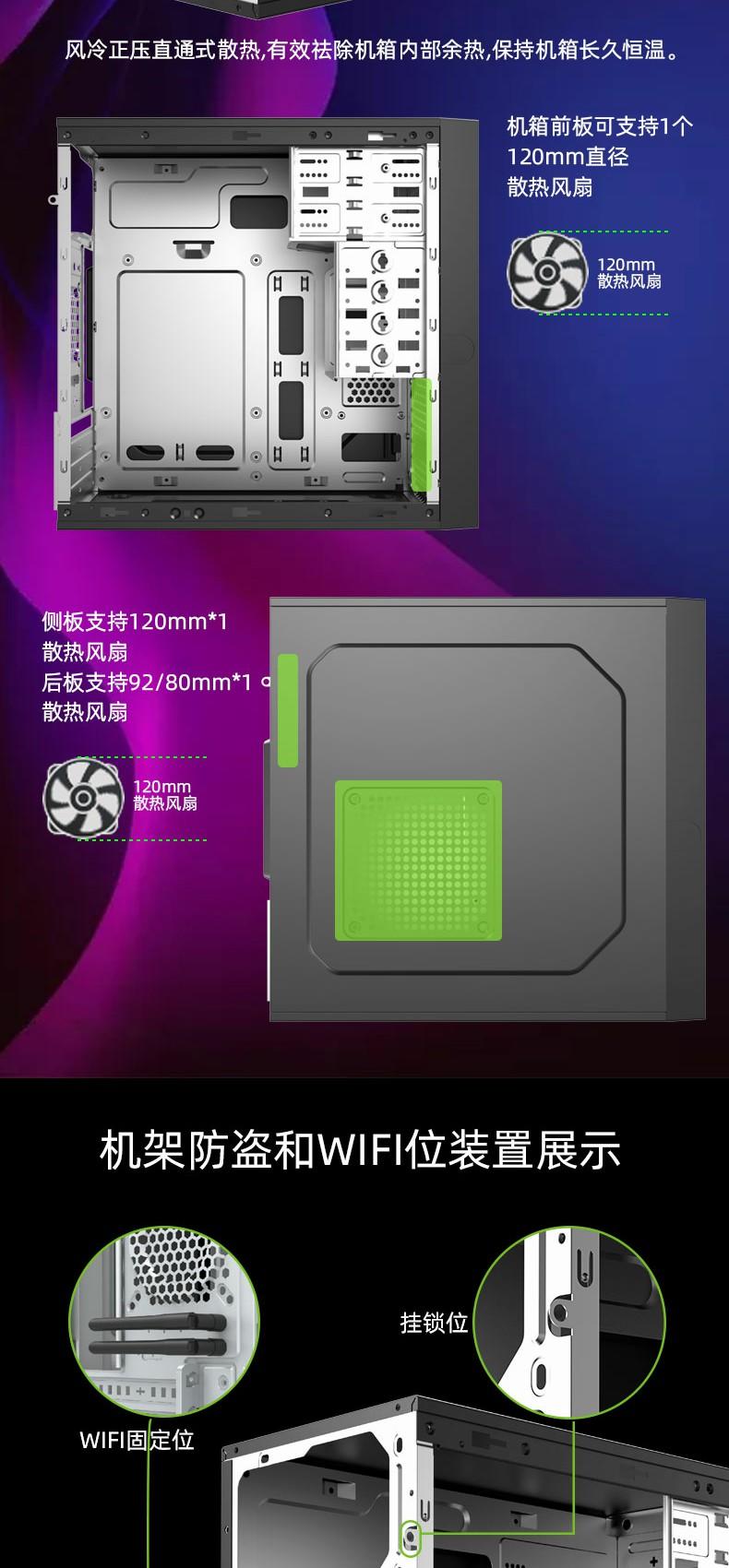

| Cooling Fan Support | Front | 2x120/92/80mm(Fan optional) |
| Top | 0 | |
| Rear | 1x92/80(Fan optional) | |
| Left Side | 1x120mm(Fan optional) | |
| PSU Cover | 0 | |
| Water Cooling Support (Radiator Size) | Front | 0 |
| Top | 0 | |
| Rear | 0 | |
| Dust Cover | 0 | |
| Slots | *4 | |
| Carton & Logo | Sohoo by OEM | |

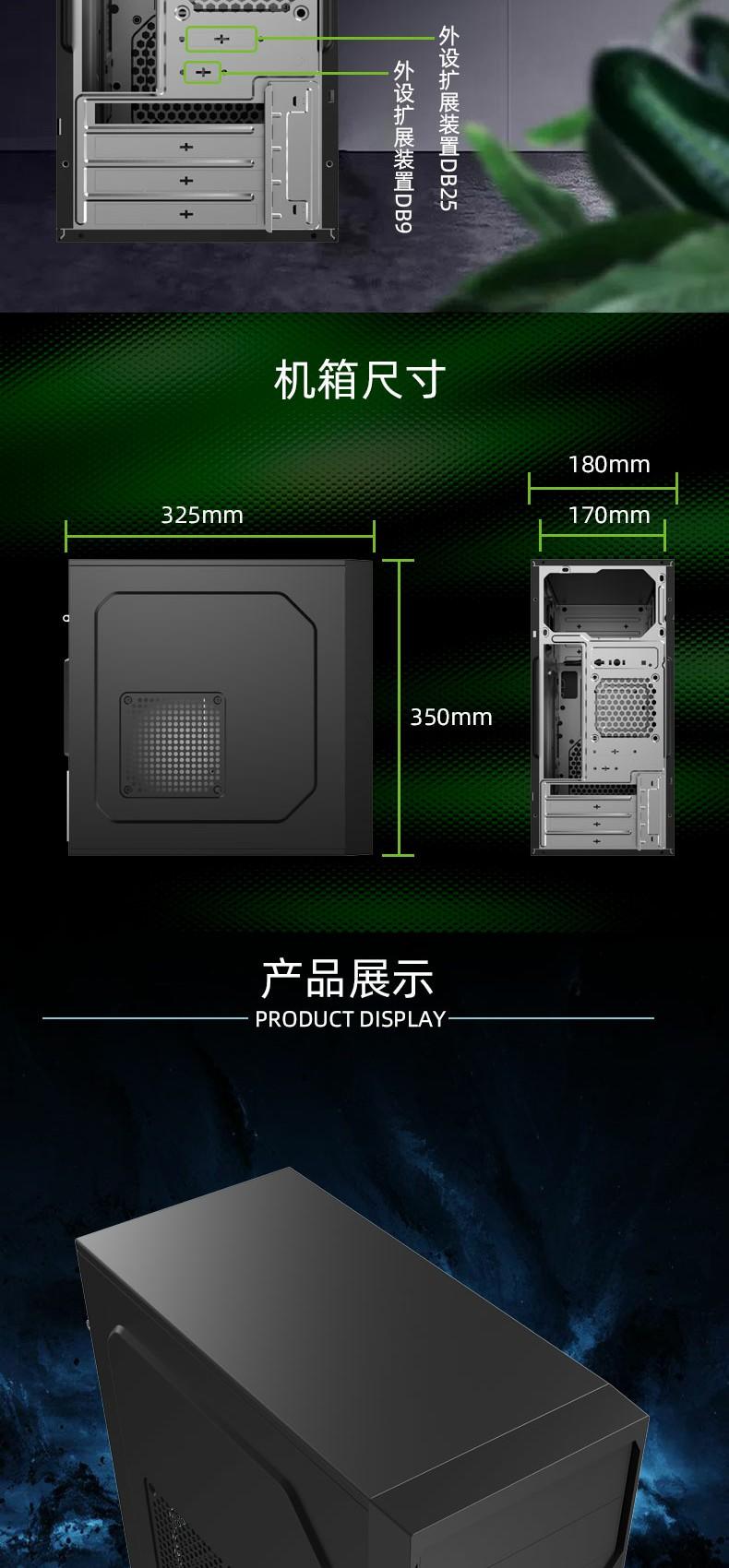

| Dimensions | Chassis | (L)325*(W)170*(H)350mm |
| Full Case (inc Fascia) | (L)368*(W)178*(H)353mm | |
| Carton | (L)390*(W)209*(H)400mm | |
| Net Weight (Kg) | 3 kgs | |
| Gross Weight (Kg) | 4 kgs | |

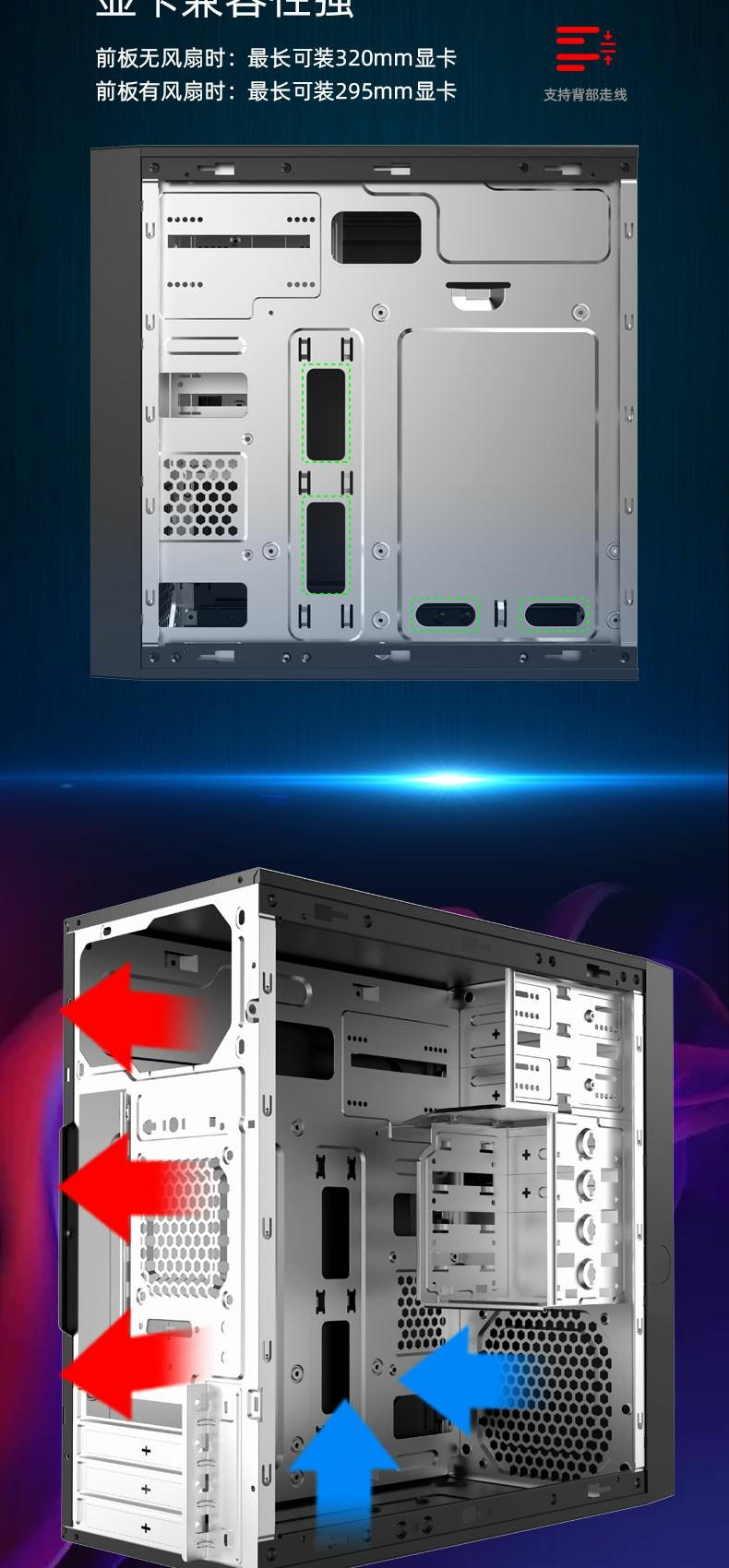

| VGA Card Length | up to 270mm | |
| CPU Cooler Height | 140mm | |
| Cable Management Depth | 14mm | |
