| Form Factor (Midi, Micro, Mini ITX, Full) | Micro-ATX/Mini ITX | |

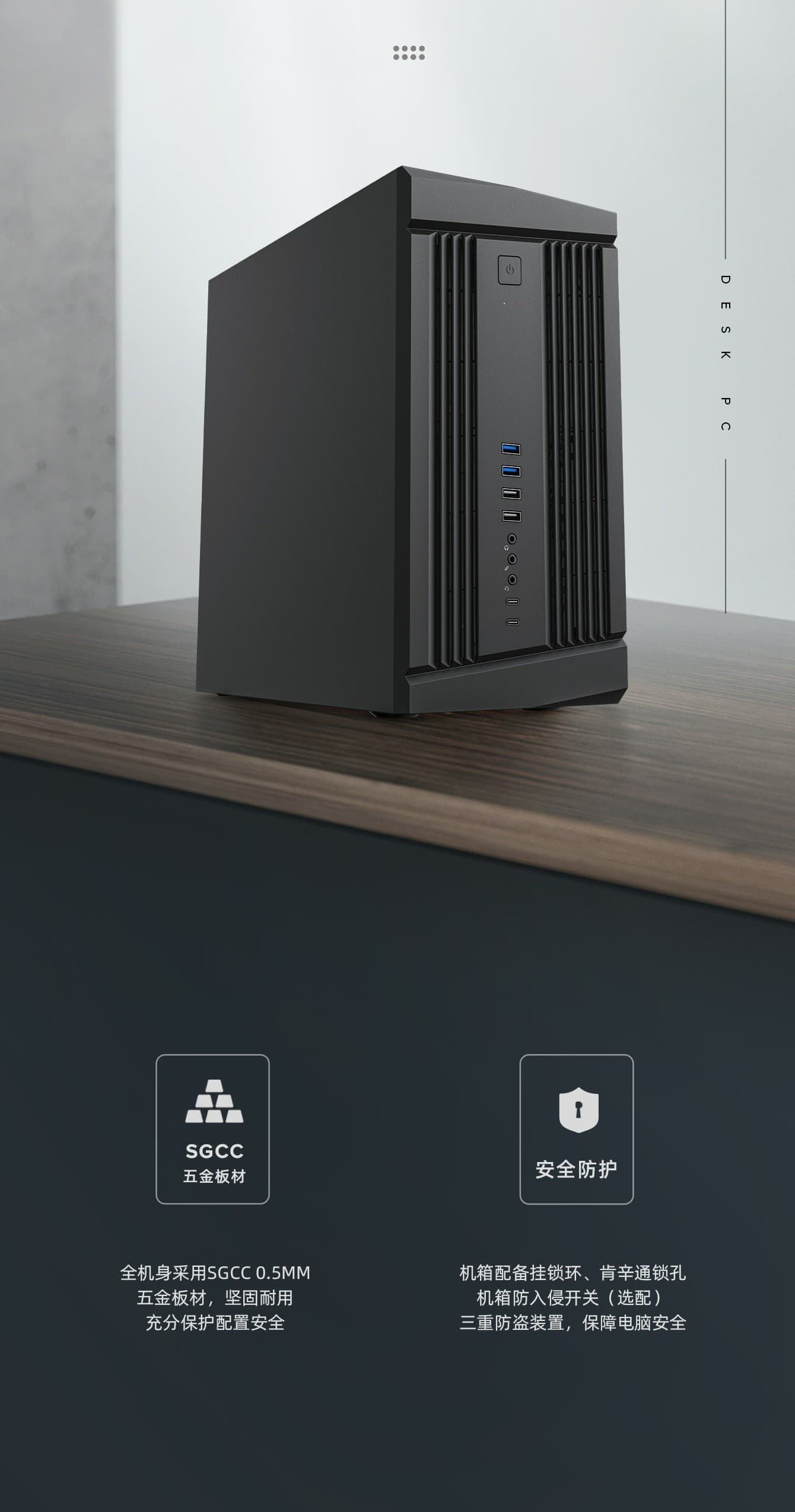

| Chassis | SGCC 0.5mm | |
| PSU Form Factor | TOP,ATX or SFX | |

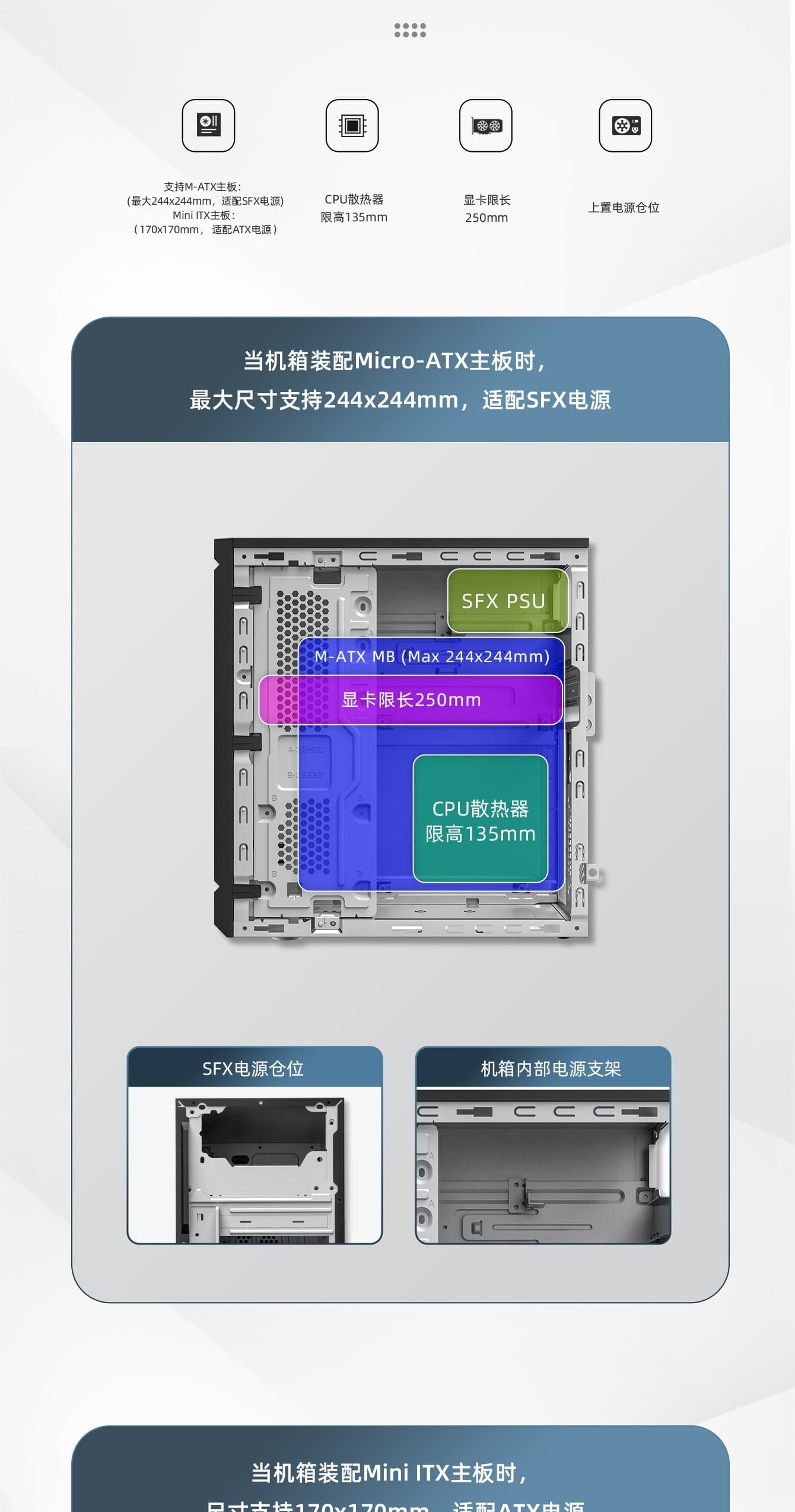

| M/B Form Factor | Micro-ATX(244*244), ini ITX | |

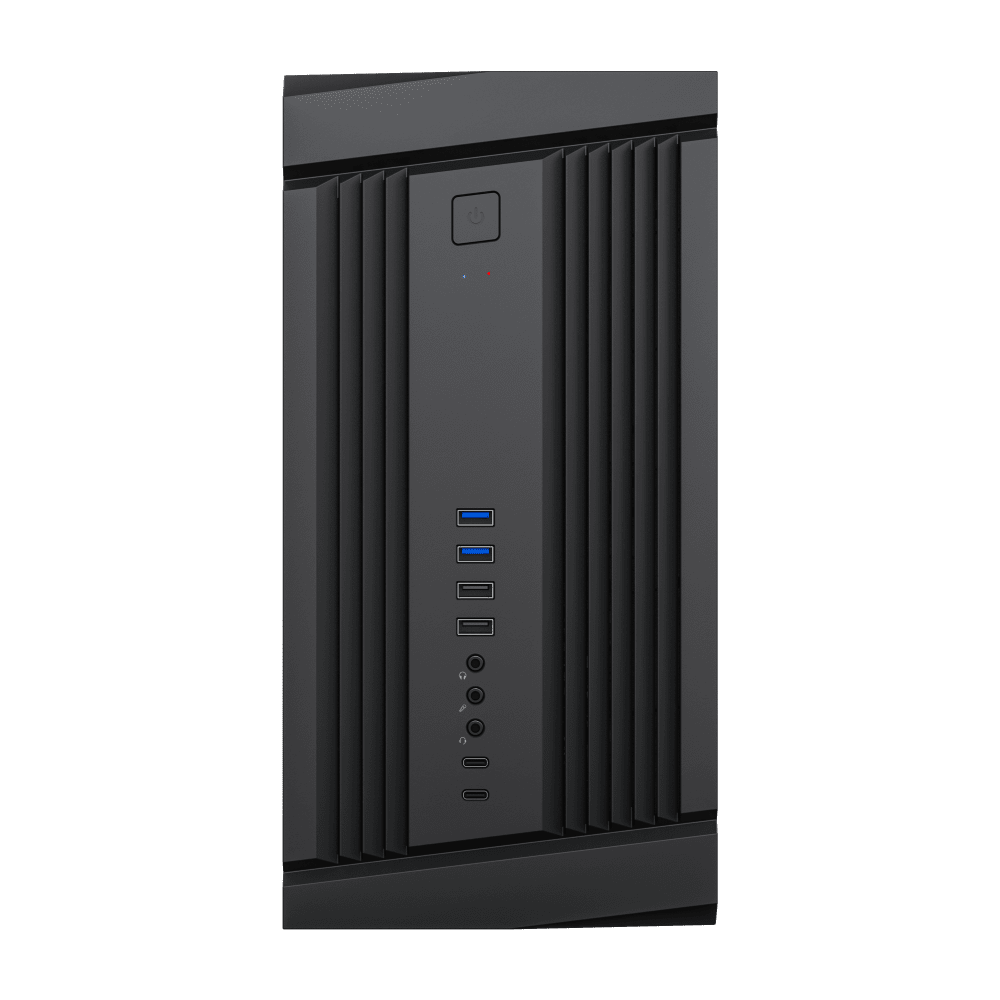

| Front Panel | Plastic: ABS | |
| Top Panel | Metal cover | |
| Side Panel | Left | Metal cover |
| Right | Metal cover | |
| External Drive Bay(s) | Slim ODD | *0 |
| 3.5" | *0 | |

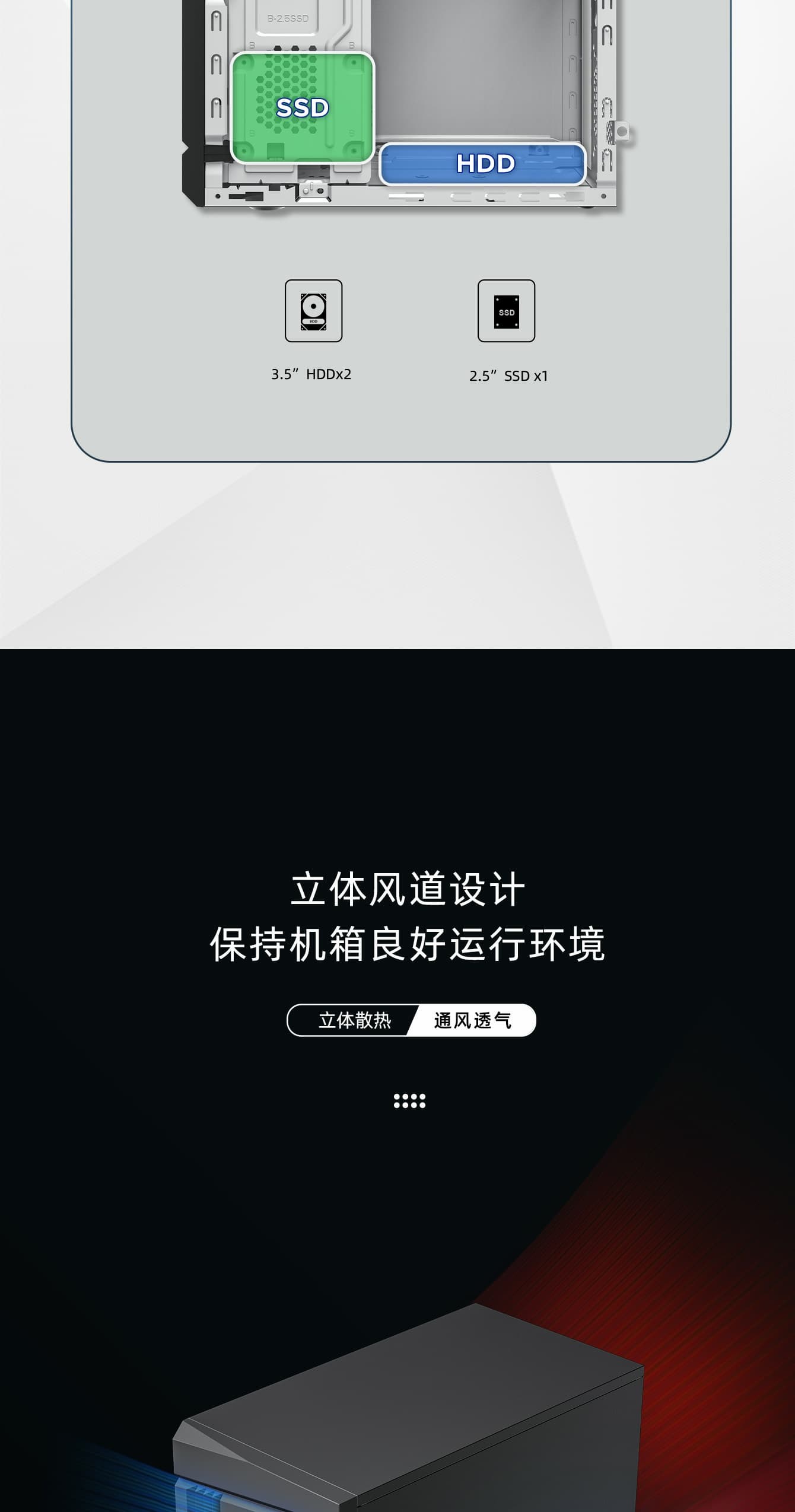

| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *1 | |

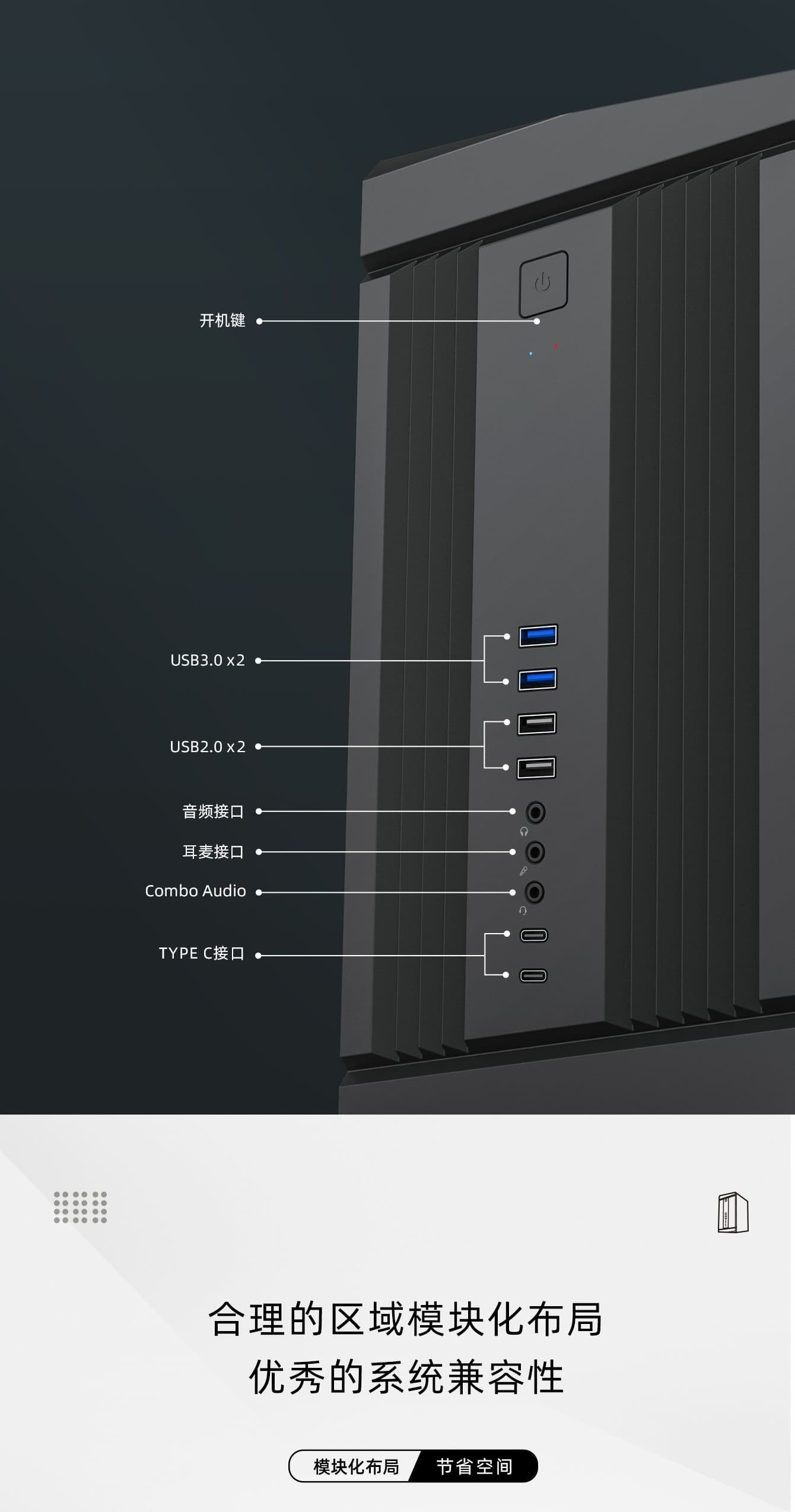

| I/O | Buttons | *1 |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *2 | |
| Type C(2.0/3.0) | *2 | |
| HD Audio Support | *1 Mic+SPK | |
| Combo Audio (Support) | *1 Combo Audio | |
| Accessory | Internal Speaker | *1(Optional) |

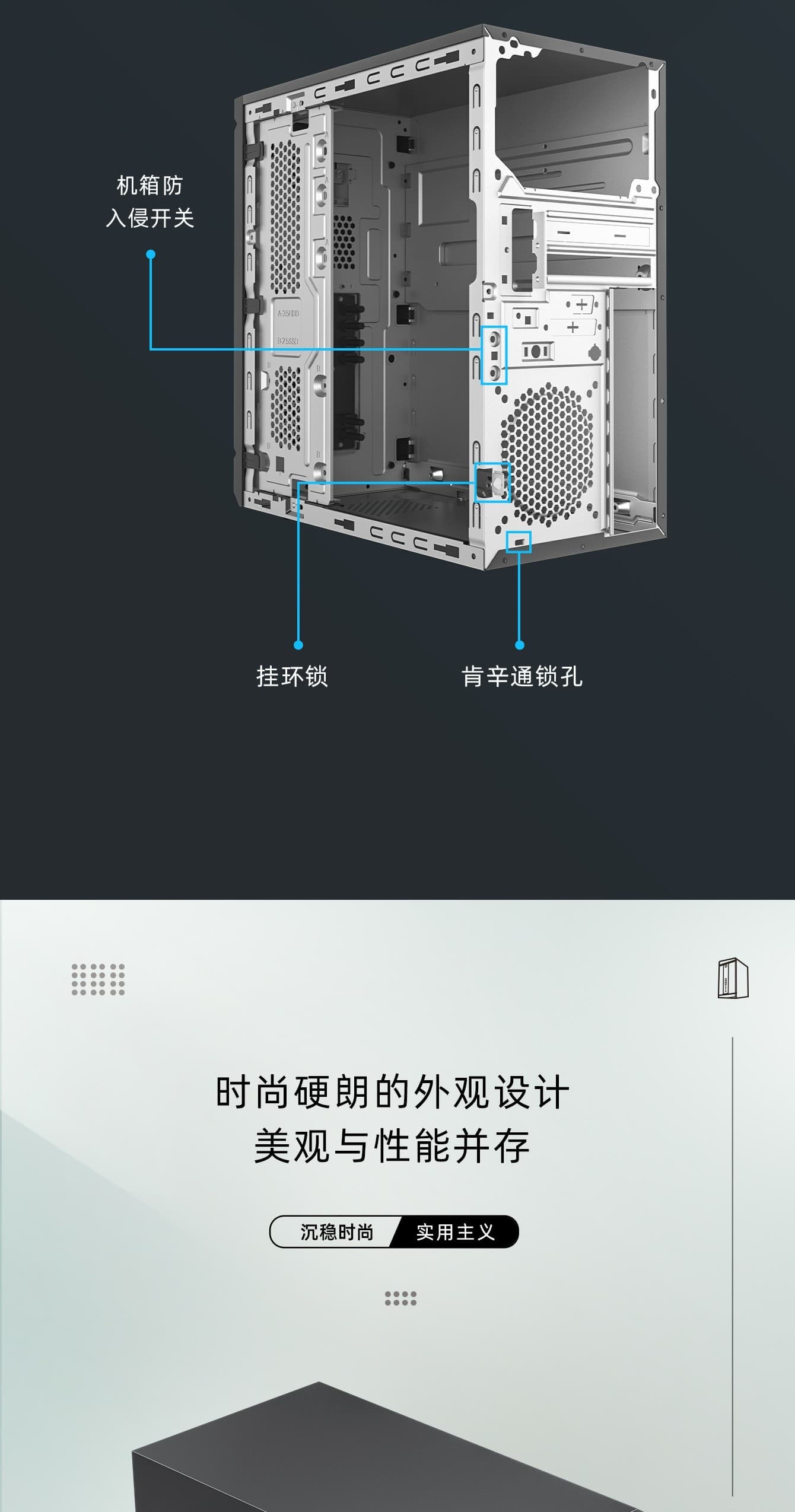

| Security | Intrusion switch,electronic lock(Optional) | |
| Kensington lock,Pad lock Included | ||
| WiFi Antenna | *0 | |
| Cooling Fan Support | Front | *0 |
| Top | *1 | |
| Rear | 80/92mm*1(Options) | |
| Left Side | 0 | |
| Bottom | 0 | |
| Slots(Full Profile) | *2 | |
| Carton & Logo | OEM | |

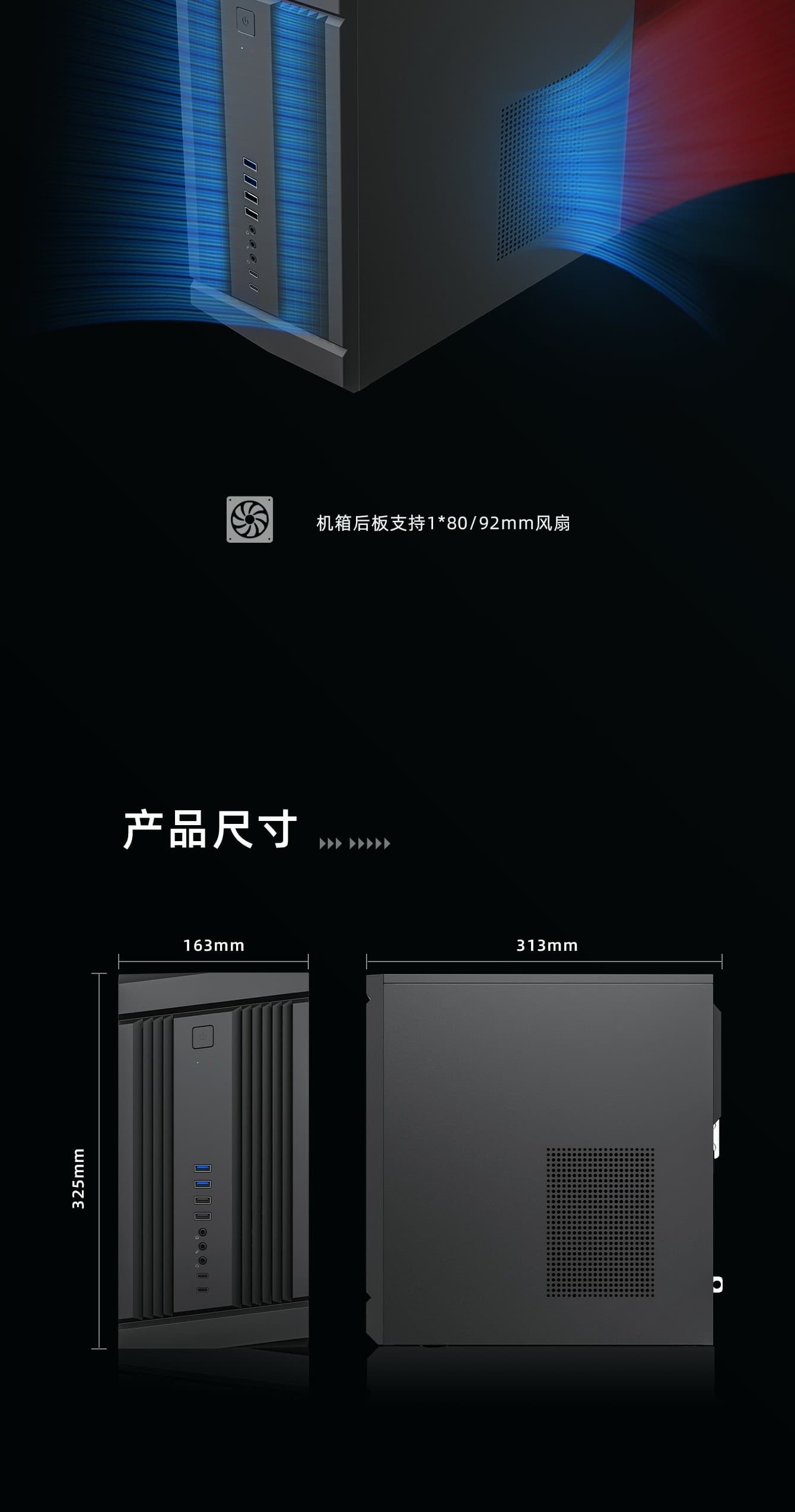

| Dimensions | Chassis | (L)285*(W)163*(H)320mm |
| Full Case (inc Fascia) | (L)313*(W)163*(H)325mm | |
| Carton | (L)360*(W)204*(H)360mm | |
| Net Weight (Kg) | 2.3kgs | |
| Gross Weight (Kg) | 3.1kgs | |

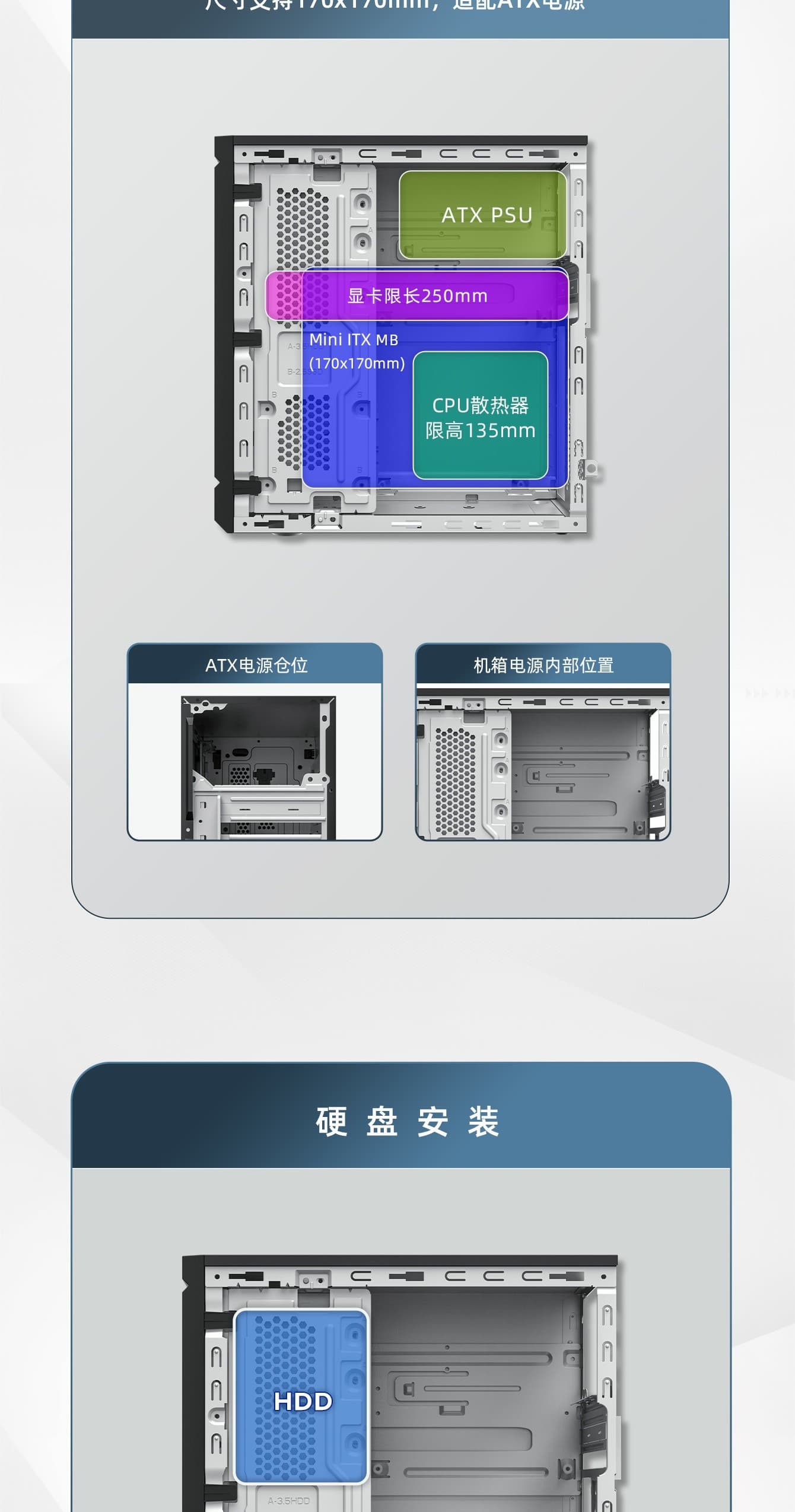

| VGA Card Size | 250mm | |
| CPU Cooler Height | 135mm | |
