Spark Mute
Silent,case,MATX,Computer,case

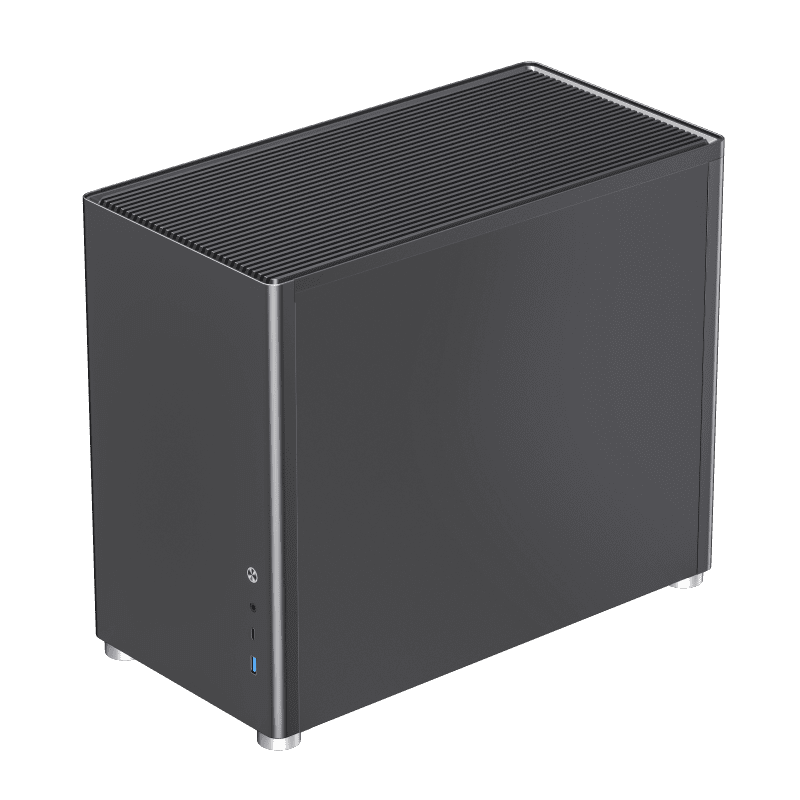

Spark Mute, MATX Computer Silent case with featured fully solid side panel with noise killing foam, along with vertical airflow designed game or workstation case, improves again for the thermal solution which makes complex into simple, blends in the home
Vertical airflow channel, small size, high compatibility, basically suitable for installation of all mainstream accessories on the market
The bottom fan position blows directly to the graphics card to optimize cooling performance in maximum

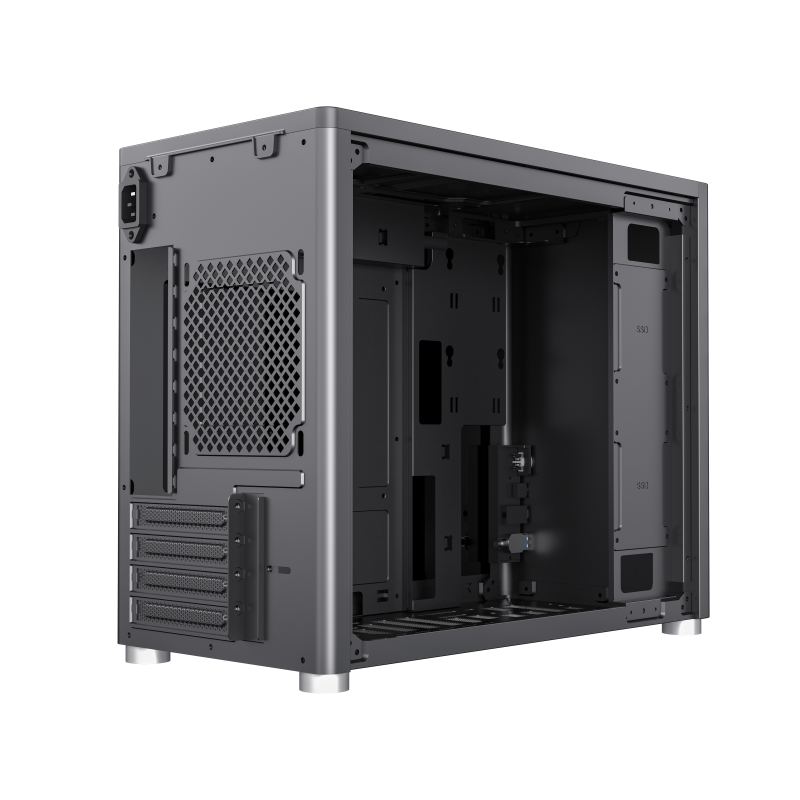

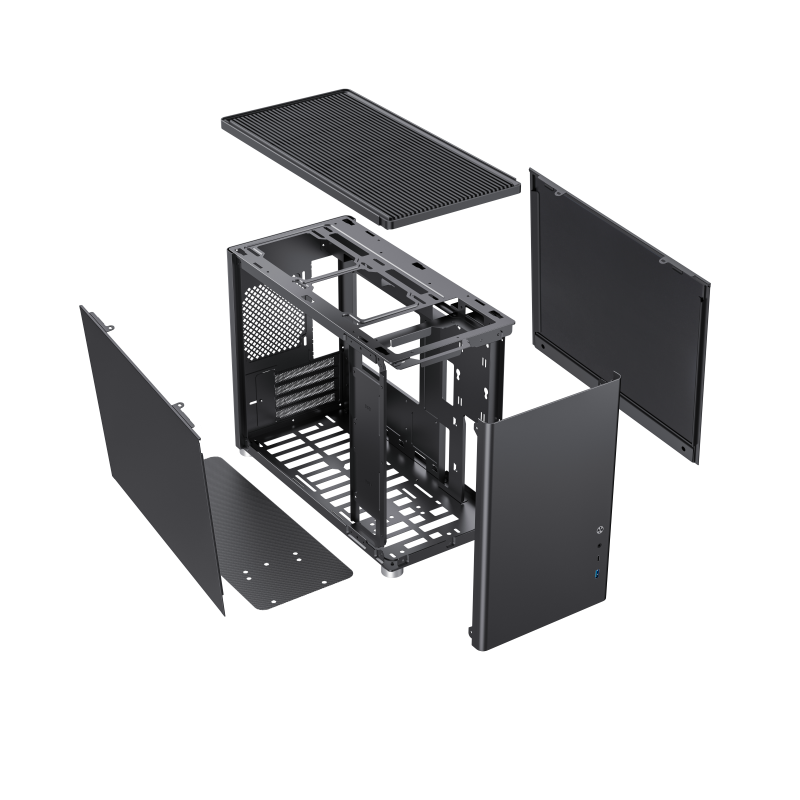

The chassis is by modular design, optimizes wire management, and makes enough internal space.
Good vertical airflow design, cooling internally anywhere and anyplace.
Full area of dust-proof design, giving the computer a clean home

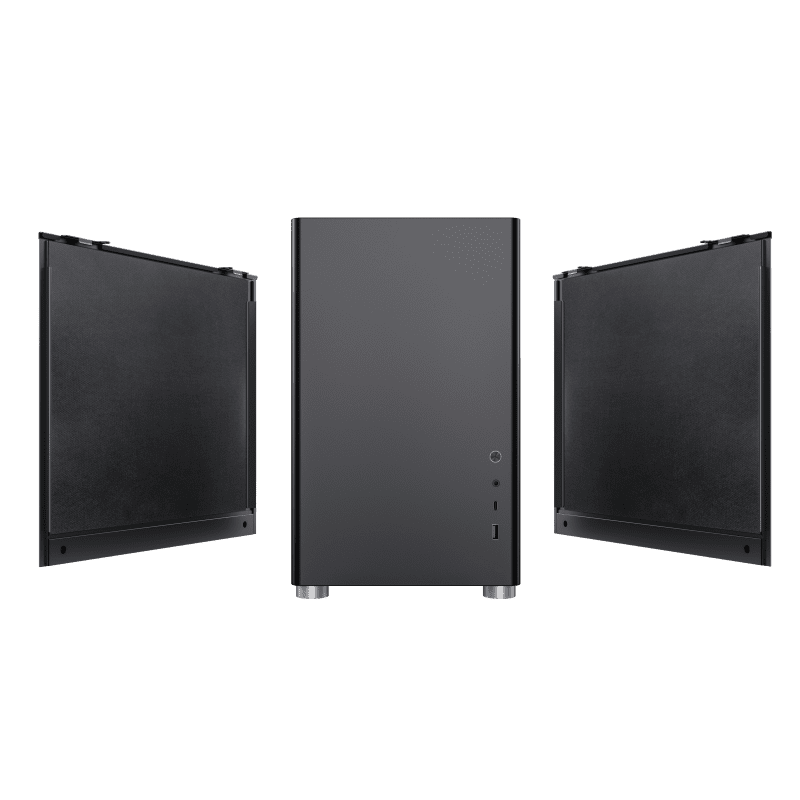

The interchangeable design of the glass side panels and hollow side panels provides additional heat dissipation airflow channels
Support 240 water cooling and up to 168mm air-cooling CPU cooler
Support high-end popular graphics cards 305~355mm, unlimited games.
Form Factor (Midi, Micro, Mini ITX, Full)Deskop Silent Chassis
ChassisSPCC : 0.8/0.6mm
PSU Form FactorATX Type Power Supply
M/B Form FactorMicro-ATX, DTX,Mini ITX

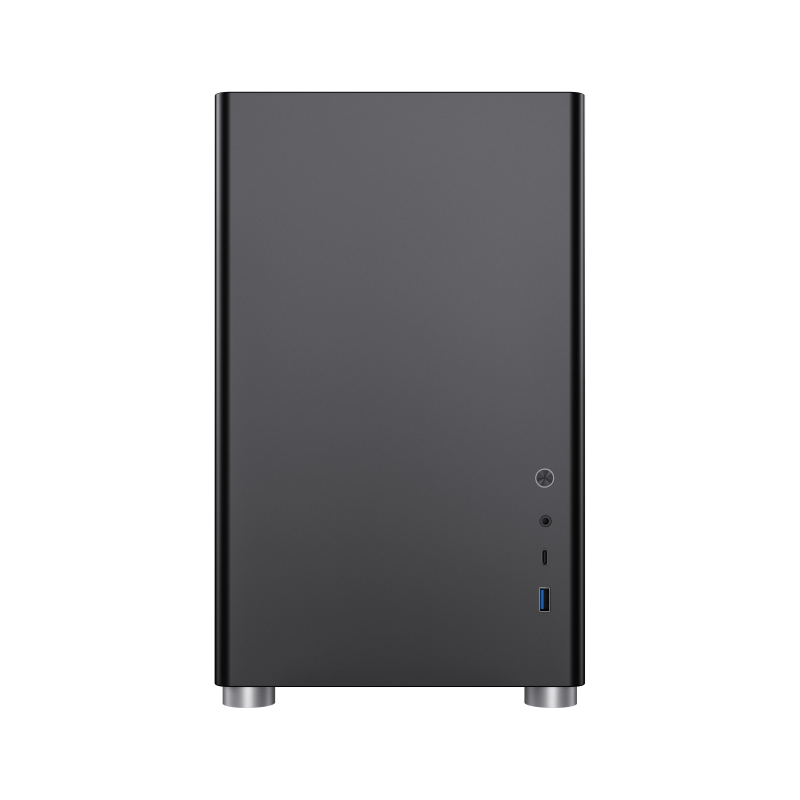

Front PanelMetal Steel
Top PanelABS, Steel
Side PanelLeftMetal Steel
RightMetal Steel
External Drive Bay(s)5.25" (ODD)*0
3.5"*0

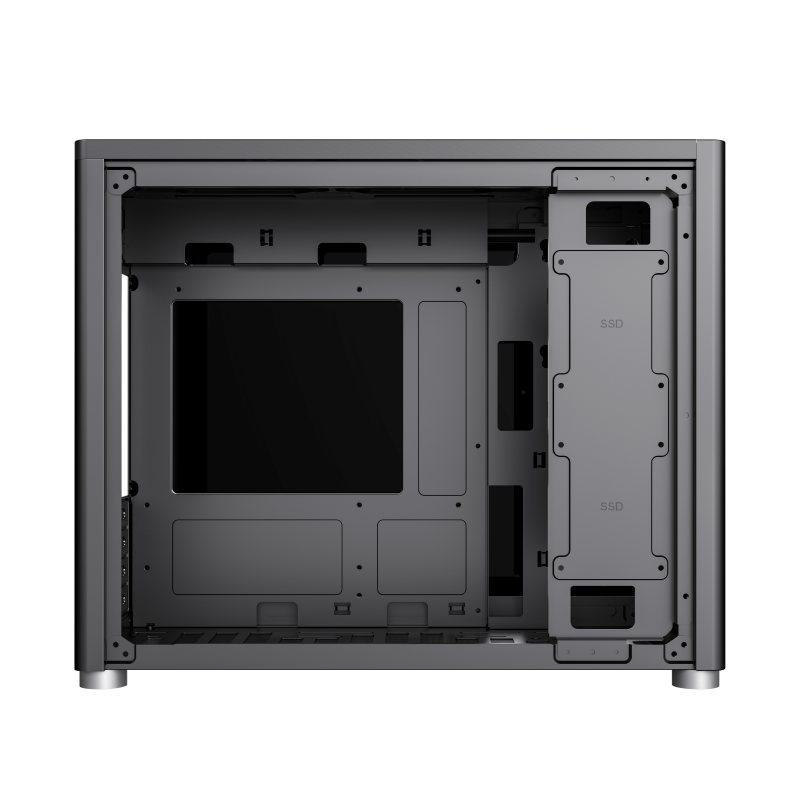

Internal Drive Bay(s)3.5" (HDD)3.5" x 1+SSDx 3 or SSD*4
2.5" (SSD)
I/OButtons*1
USB3.2 Port(s)*2(TYPE A*1+TYPE C*1)
AudioCombo Audio*1
Card Reader (Support)*0
Cooling Fan    SupportFront0
Top2x120 or 2x140mm  (Fan optional)
Rear1x120mm  (Fan optional)
Left Side0
Bottom3x120 or 2x140mm  (Fan optional)
Water Cooling Support
   (Radiator Size)
Front0
Top240mm*1
Bottom240mm*1
Dust CoverBottom and Top with dust filter
Slots*4
Carton & LogoOEM
DimensionsChassis(L)401*(W)204*(H)325mm
Full Case (inc Fascia)(L)413*(W)204*(H)337mm
Carton(L)470*(W)275*(H)400mm
VGA Card Length355mm
CPU Cooler Height168mm
Cable Management DepthMax.34mm
