EATX,Silent,Sever,Workstation,Computer,case
EATX Silent Sever, Workstation Full Tower, Computer case
Advanced cooling system – optional 4 fans, 3x front and 1x rear fan mounts
1 x Top power switch for convenience to use daily, Side panels with noise-killing materials, to improve performance and make quiet computing

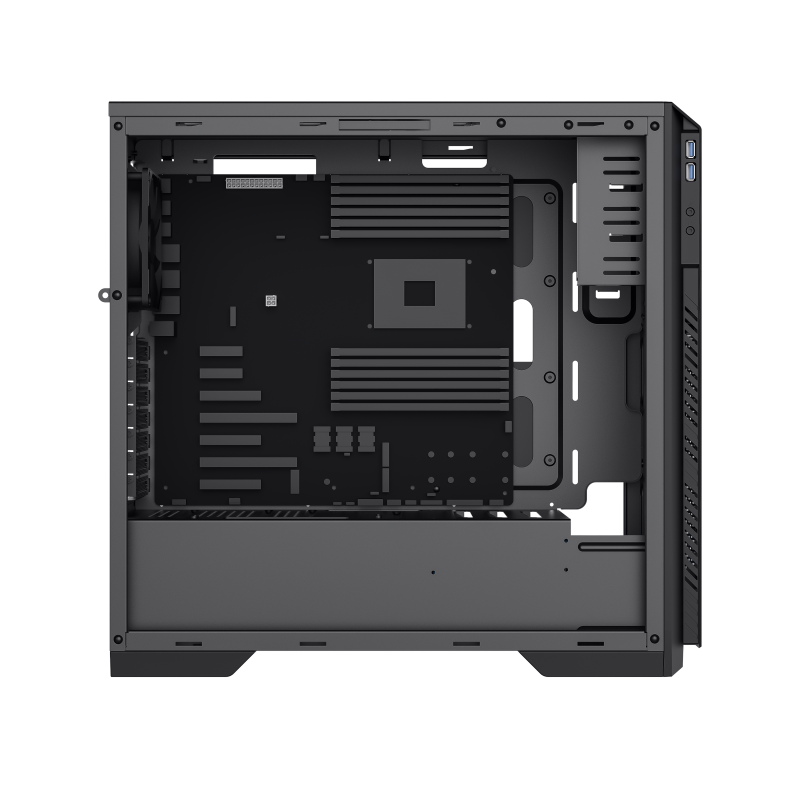

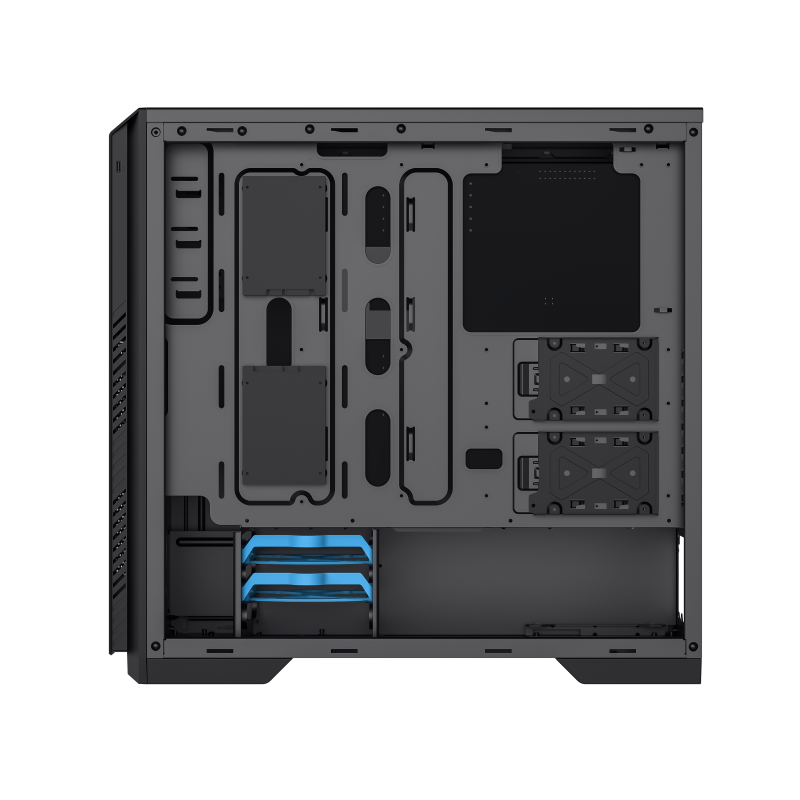

Extra space behind the motherboard tray for easy cable management
Supports up to 420mm extra long cards for video station users
2 front USB 3.0 ports - up to 5 Gbit/s and 1x Type-C Gen2 10Gbit/s, SuperSpeed transferring rate
Washable air filter for PSU and front intake to keep the system clean
Easy access to the front and the top bezel for easy system maintenance
Total 6x HDD/SSD fix position, to increase system storage maximum.
产品特征 产品规格
Model9917SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full)EATX(305*330mm), ATX,Micro, Mini ITX
ChassisSPCC  0.7mm .  Black painting interior
PSU Form FactorBottom/ATX
M/B Form FactorEATX(305*330mm)、ATX、M-ATX、ITX
Front PanelABS,Mesh
Top PanelMetal cover
Side PanelLeftmetal cover
Rightmetal cover
External Drive Bay(s)5.25" (ODD)*2 (On the premise of installing an ATX M/B)
3.5"*0
Internal Drive Bay(s)3.5" (HDD)*3
2.5" (SSD)*4
I/OButtons*1
USB3.0 Port(s)*2
USB3.1 Port(s)*1(TYPE-C GEN2)
HD Audio Support*1
Cooling Fan  SupportFront3x120mm(Fan optional)
Top0
Rear1x120mm (Fan optional)
Left Side0
PSU Cover0
Water Cooling Support
(Radiator Size)		Front120mm*1,240mm*1,360MM*1(With 360mm liquid cooling,Without installing DVD-ROOM)
Top0
Rear120mm*1
Dust CoverBottom  cover with dust filter
Slots*7
Carton & LogoOEM
DimensionsChassis(L)470*(W)210*(H)465mm
Full Case (inc Fascia)(L)512*(W)212*（H)487mm
Carton(L)540*(W)286*（H)597mm
